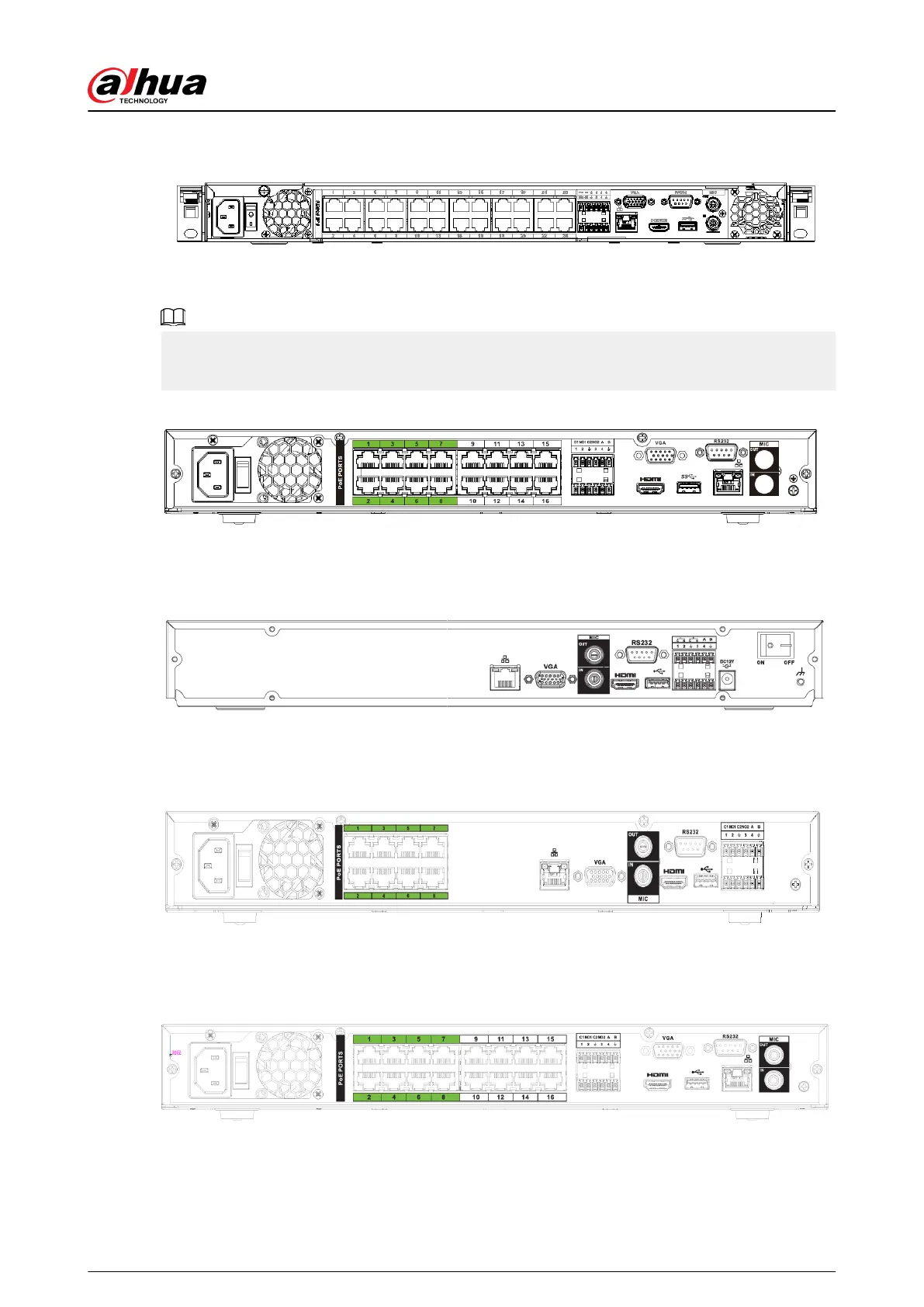

Figure 2-50 Rear panel
The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below.
The following gure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E has 8 PoE ports
only.
Figure 2-51 Rear panel
The NVR52-EI series rear panel is shown as below.
Figure 2-52 Rear panel
The NVR52-8P-EI series rear panel is shown as below.
Figure 2-53 Rear panel
The NVR52-16P-EI series rear panel is shown as below.
Figure 2-54 Rear panel
User's Manual
30
