Installation
2.2.2 Villa Door Station (single button)
Here are examples of two model’s installation, depending on differences in model dimensions.
Model Example 1:
Open the port cover of the VTO, drill screw holes on the wall according to the dimension
of the mounting hole on the rear panel of the VTO.
Complete the cable wiring.
Fix the port cover to the rear panel of the VTO with four screws.
Fix the VTO on the wall with screws.

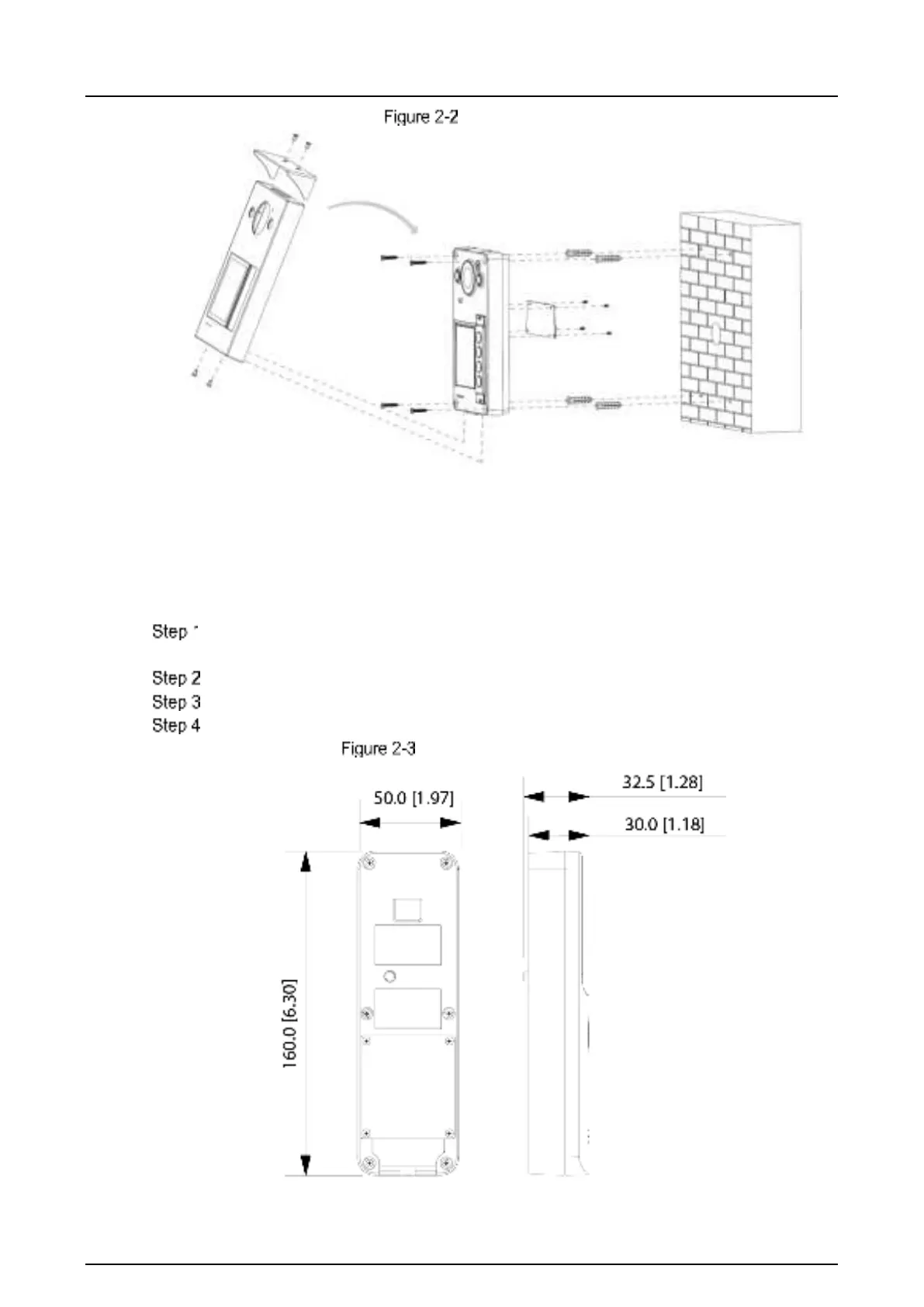

Dimension (mm [inch])
