Fix installation bracket onto 86 box with screws. Step 2

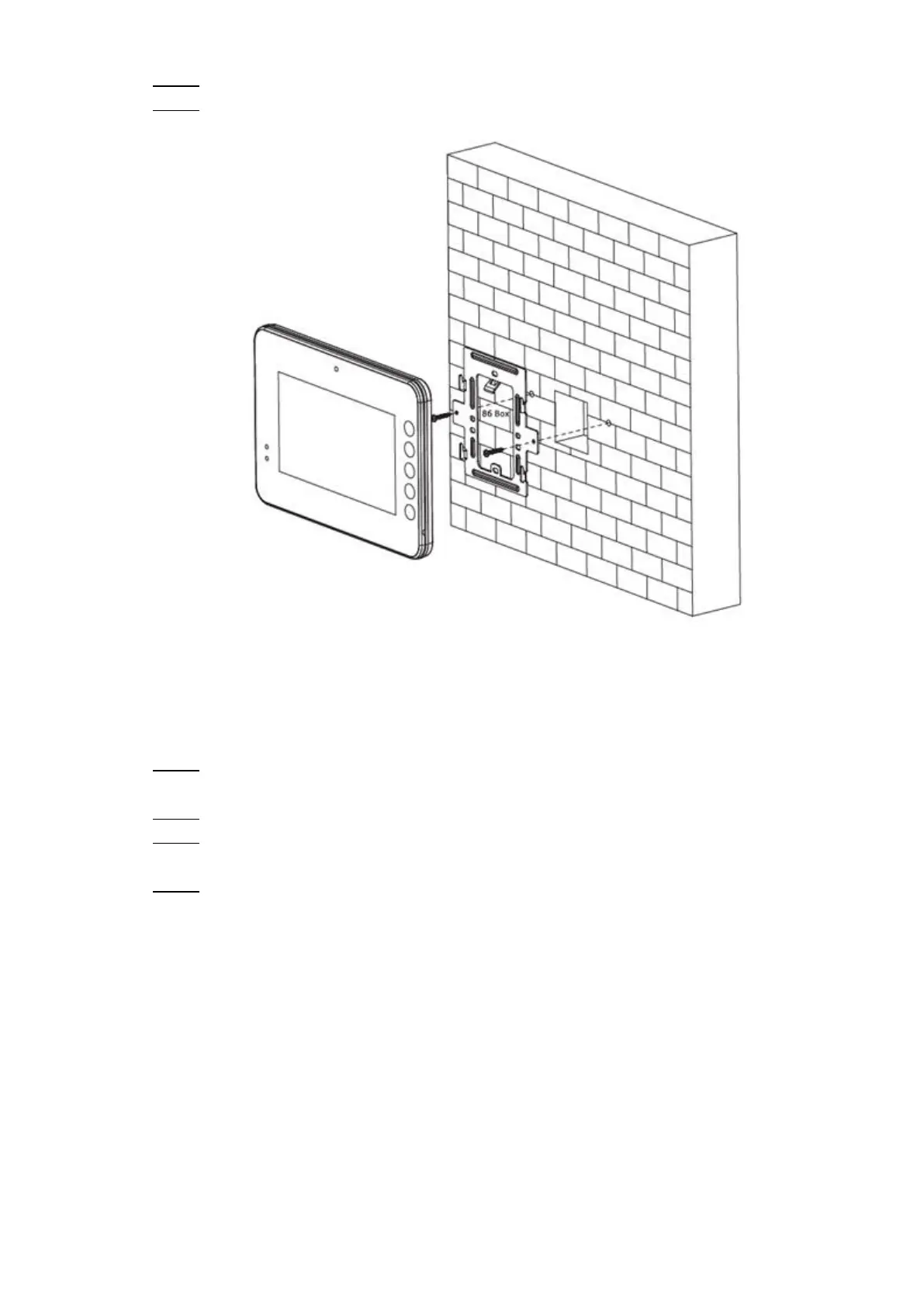

Put the device into installation bracket from top down. Step 3
Installation with 86 box
Figure 2-2
2.1.3 Desktop Installation with Bracket
Install the device with bracket on the desktop, which only applies to handset VTH. Take
“VTH5221E-H” for example.
With two M3×6 cross recessed countersunk head screws, tighten the metal bracket Step 1
onto the top two nuts of desktop bracket.
Please connect wire by reference to “1.2 Rear Panel Port”. Step 2
After wiring, guide the wire through wire outlet in the rear or at the bottom of desktop Step 3
bracket.
Put the handset VTH along slot at the top of metal bracket, and install it into the Step 4
bracket.
To Next Page
