Dahua VTH5341G-W - Installation; Installation Steps

4
2 Installation

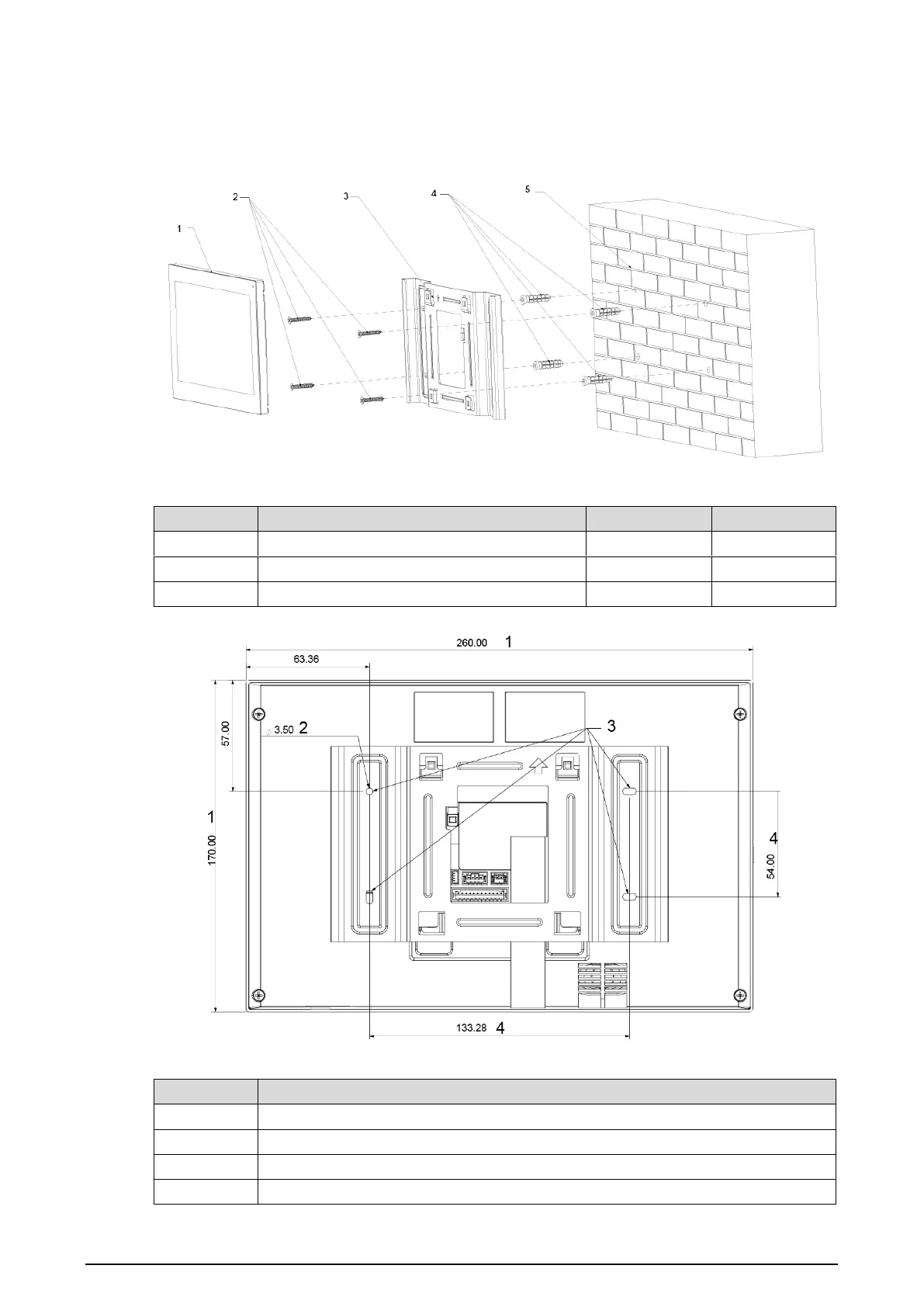

Installation Figure 2-1
Table 2-1 Components
No.
Name
No.
Name
1
Indoor monitor
4
Anchor bolt
2
ST3 self-tapping screws
5
Wall
3
Bracket
–
–
Screw hole distances and diameters Figure 2-2
Table 2-2 Description of screw hole distances and diameters
No.
Description
1
Indoor monitor dimension
2
Bracket screw hole diameter
3
Bracket oval hole position
4
Screw hole distance
