Dahua VTO7541G

Connecting Cable 4
3 Connecting Cable
This port can be used to connect to door locks, and the connection method varies with different
locks. For the detailed information, see Figure 3-1, and Figure 3-2.

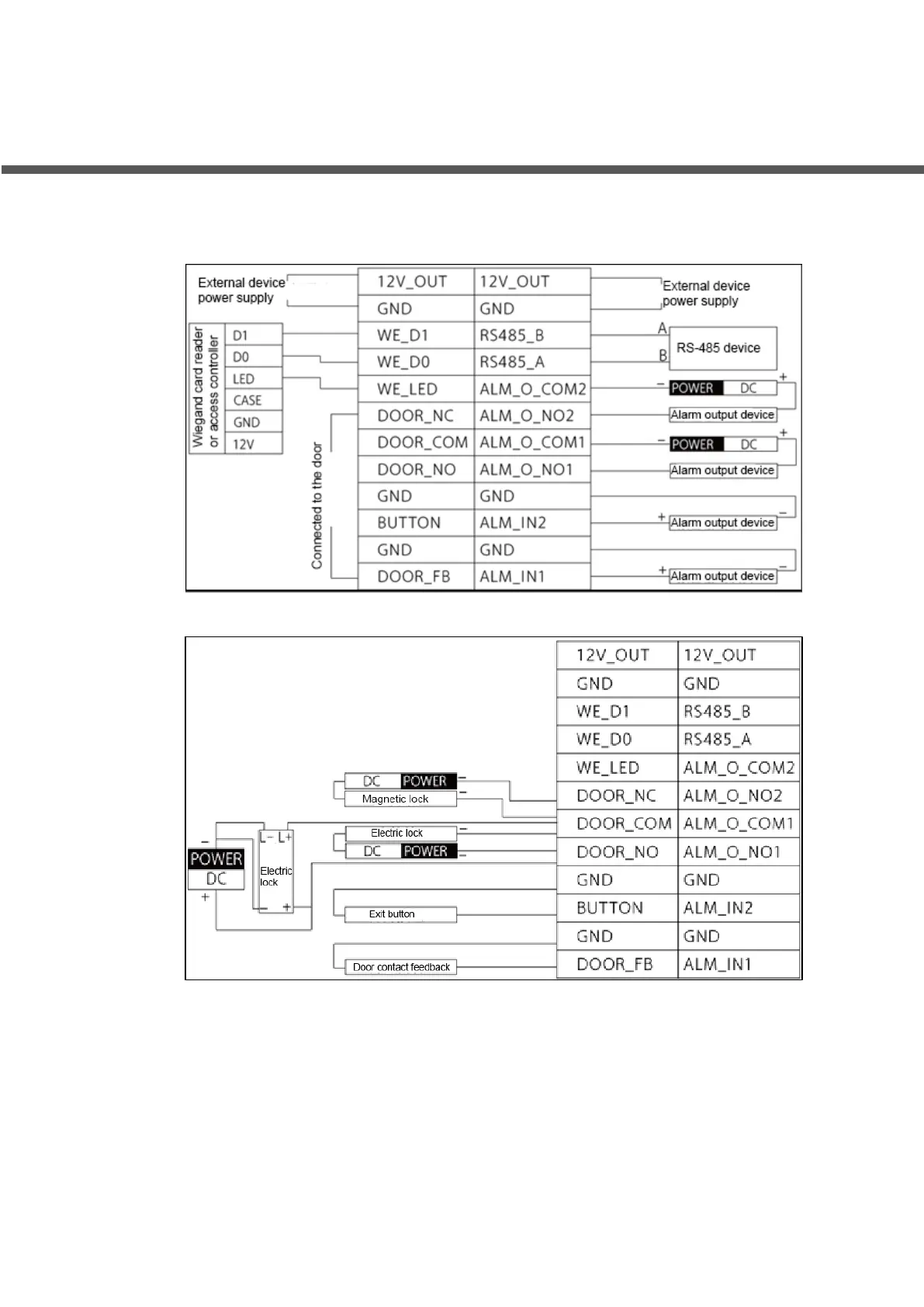

Connecting cables (1) Figure 3-1
Connecting cables (2) Figure 3-2
