Dahua XVR5108C-S2 User Manual

190
Record light
1-16
System is recording or not. It becomes on when system is
recording.
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.6 HCVR42XXA-S2/ HCVR42XXAN-S2/ HCVR52XXA-S2/
HCVR5216AN-S2/HCVR720XA-S2/
HCVR42XXA-S3/HCVR42XXAN-S3/HCVR52XXA-S3/HCVR52XXAN-
S3/HCVR72XXA-S3/HCVR7216AN-S3/XVR42XXA/XVR42XXAN/XVR
52XXA/XVR52XXAN/XVR72XXA/XVR7216AN/HCVR
72XXAN-4M/HCVR720XAN-4K/XVR52XXAN-4M/
XVR52XXAN-4KL/XVR72XXA-4KL/XVR72XXA-4K/ XVR42XXA-S2/
XVR42XXAN-S2/ XVR52XXA-S2/ XVR52XXAN-S2 Series

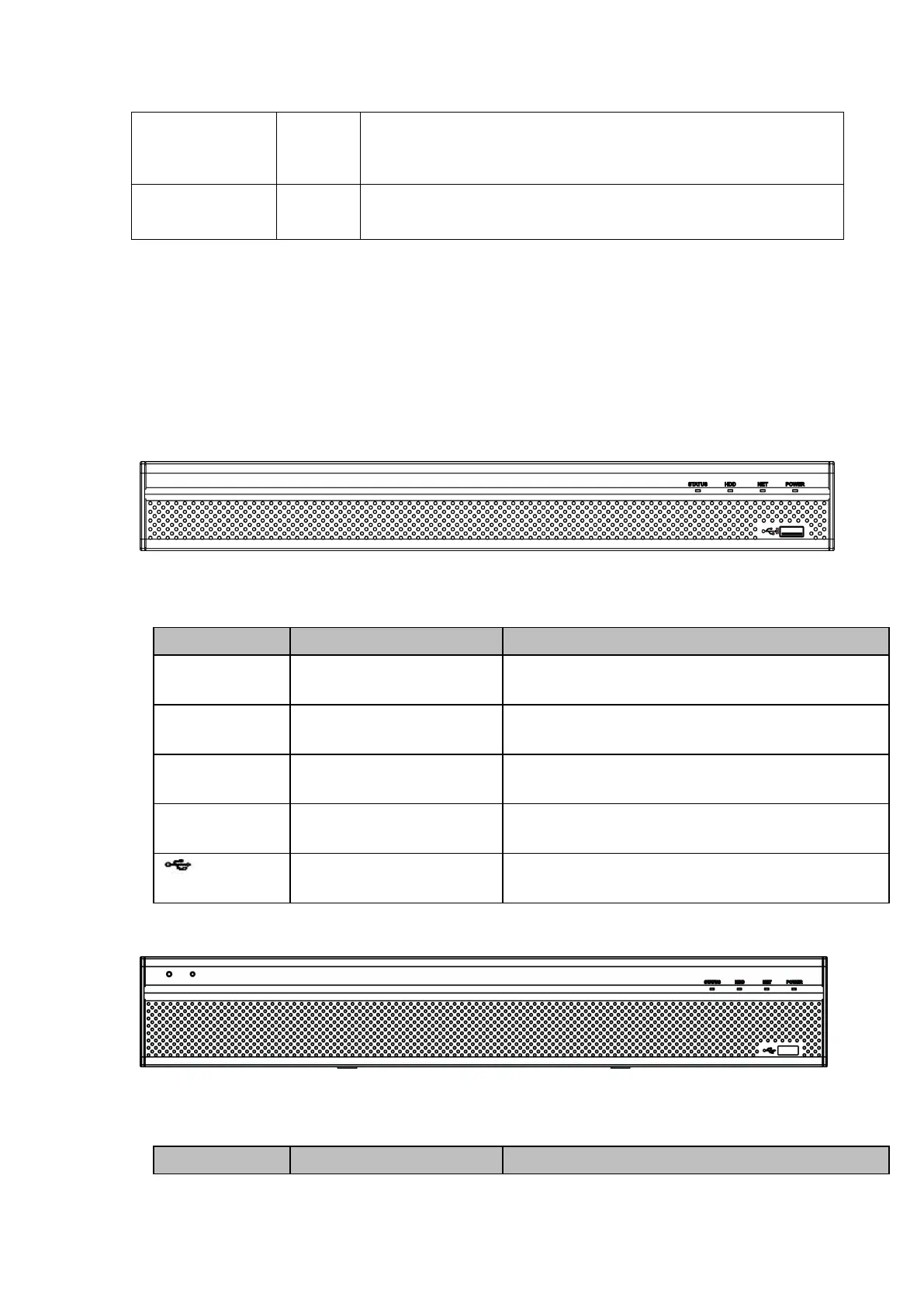

The front panel is shown as below. See Figure 2- 6.
Figure 2- 6
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is working
properly.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.1.7 HCVR42XXL-S2/HCVR44XXL-S2/ XVR54XXL/ XVR74XXL Series
The front panel is shown as below. See Figure 2- 7.
Figure 2- 7
Please refer to the following sheet for front panel button information.
Icon
Name
Function
