Dahua XVR5108C-S2 User Manual

218
6
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
7
GND
Ground end 0
8
Power input port
Input 12V DC.
9
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
10
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
11
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
12
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.17 HCVR4104/4108/4116HE-S2 Series

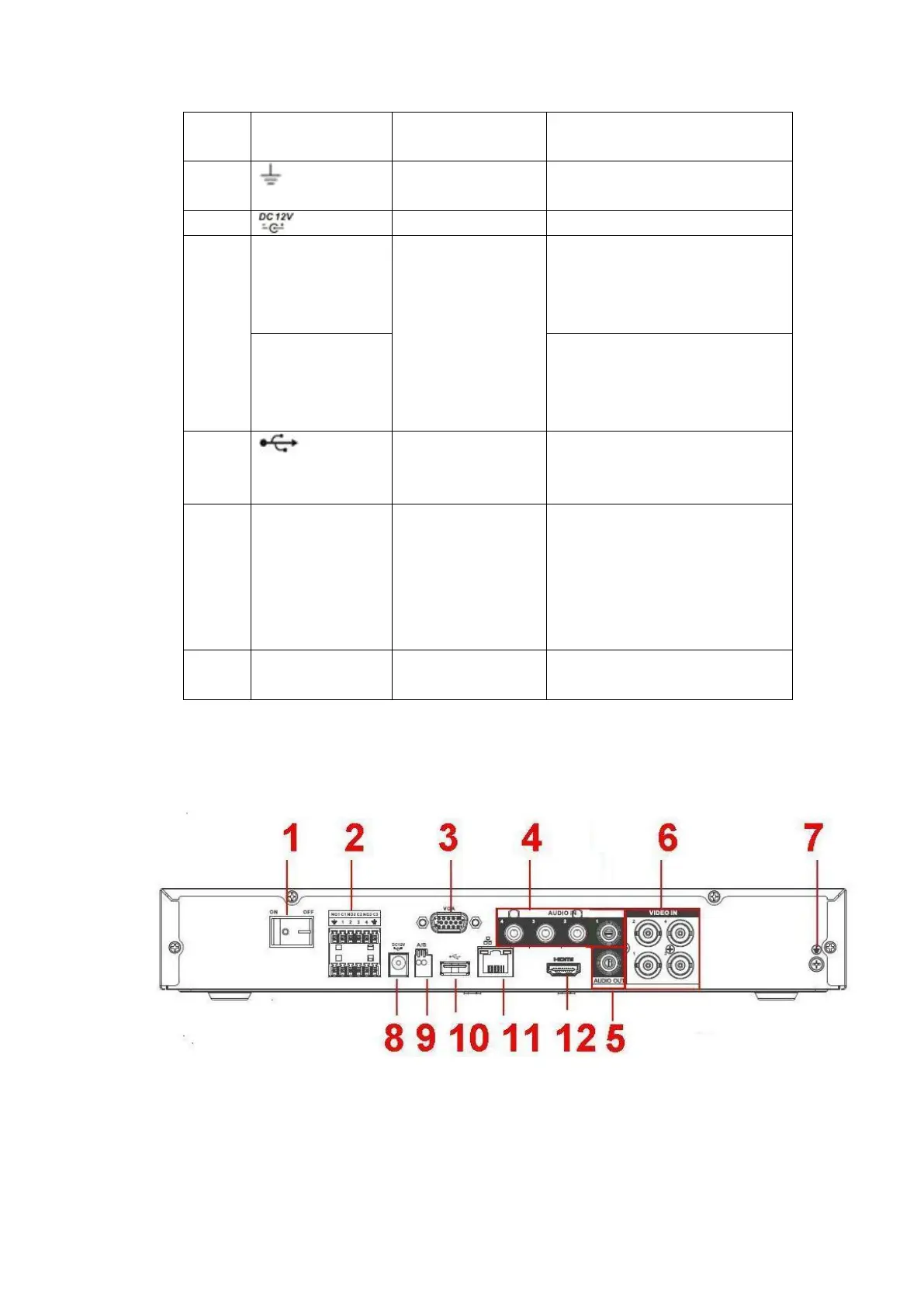

The HCVR4104HE-S2 series rear panel is shown as below. See Figure 2- 42.
Figure 2- 42
The HCVR4108HE-S2 series rear panel is shown as below. See Figure 2- 43.
