Dahua XVR5108C-S2 User Manual

252
SN
Icon
Name
Note
connected HDD.
15
USB2.0 port
USB2.0 port. Connect to
mouse, USB storage device,
USB burner and etc.
16
GND
GND
2.2.34 HCVR71XXH-4M Series

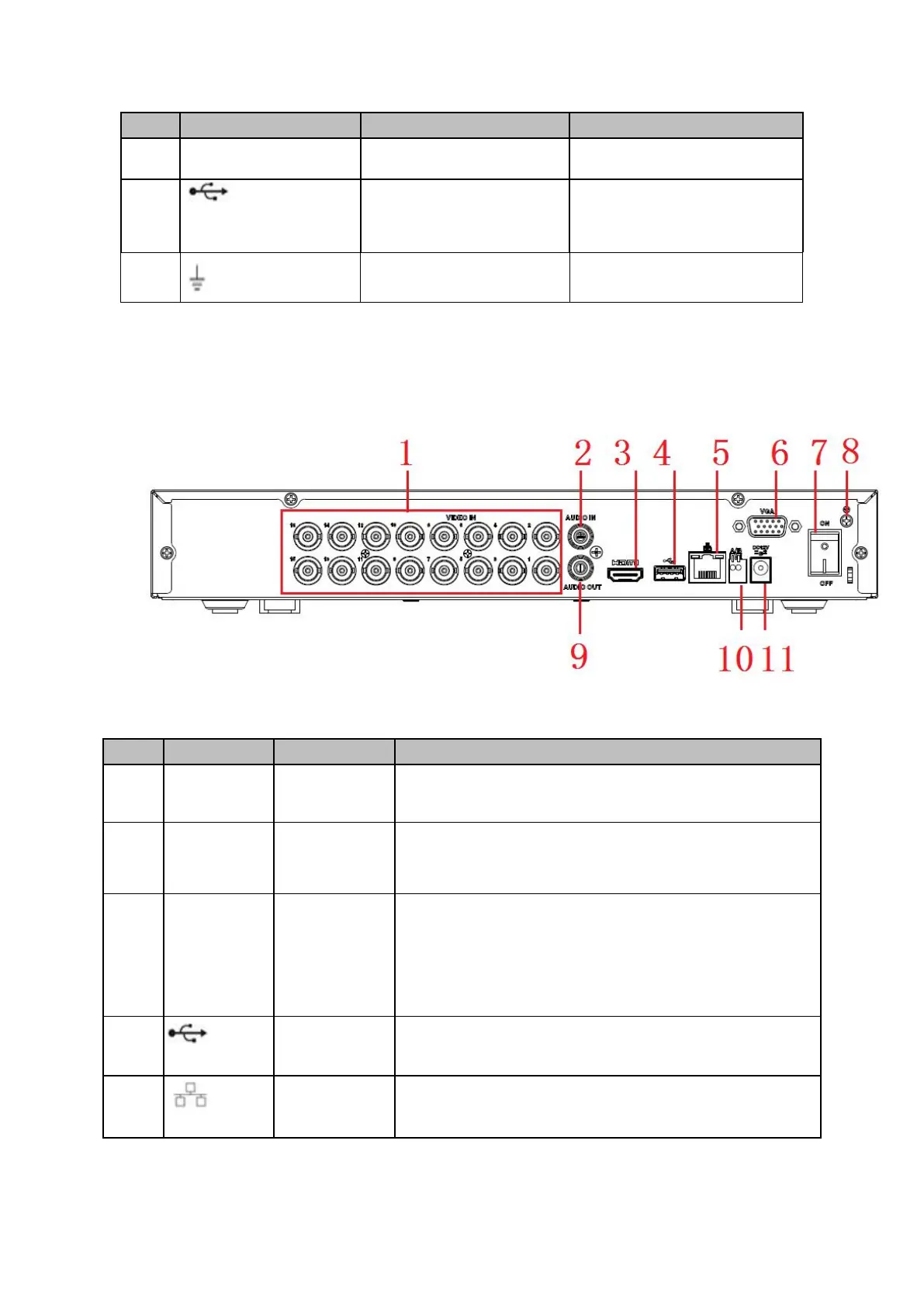

The rear panel is shown as in Figure 2- 82 .
The following figure is based on the HCVR7116H-4M series product.
Figure 2- 82
Please refer to the following sheet for detailed information.
SN
Icon
Name
Function
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.
3
HDMI
High definition
media
interface
High definition audio and video signal output port. It
transmits the same video signal as that of the VGA/TV or
different video signal from that of the VGA/TV（support
customized setup）.
Support mouse operation.
4
USB3.0 port
Connect to mouse, USB storage media, USB-burner and
etc.
5
Network port
1000M Ethernet port

Dahua XVR5108C-S2 Specifications

General

Brand	Dahua
Model	XVR5108C-S2
Category	DVR
Language	English
