Dahua XVR5108C-S2 User Manual

335
upper-level.


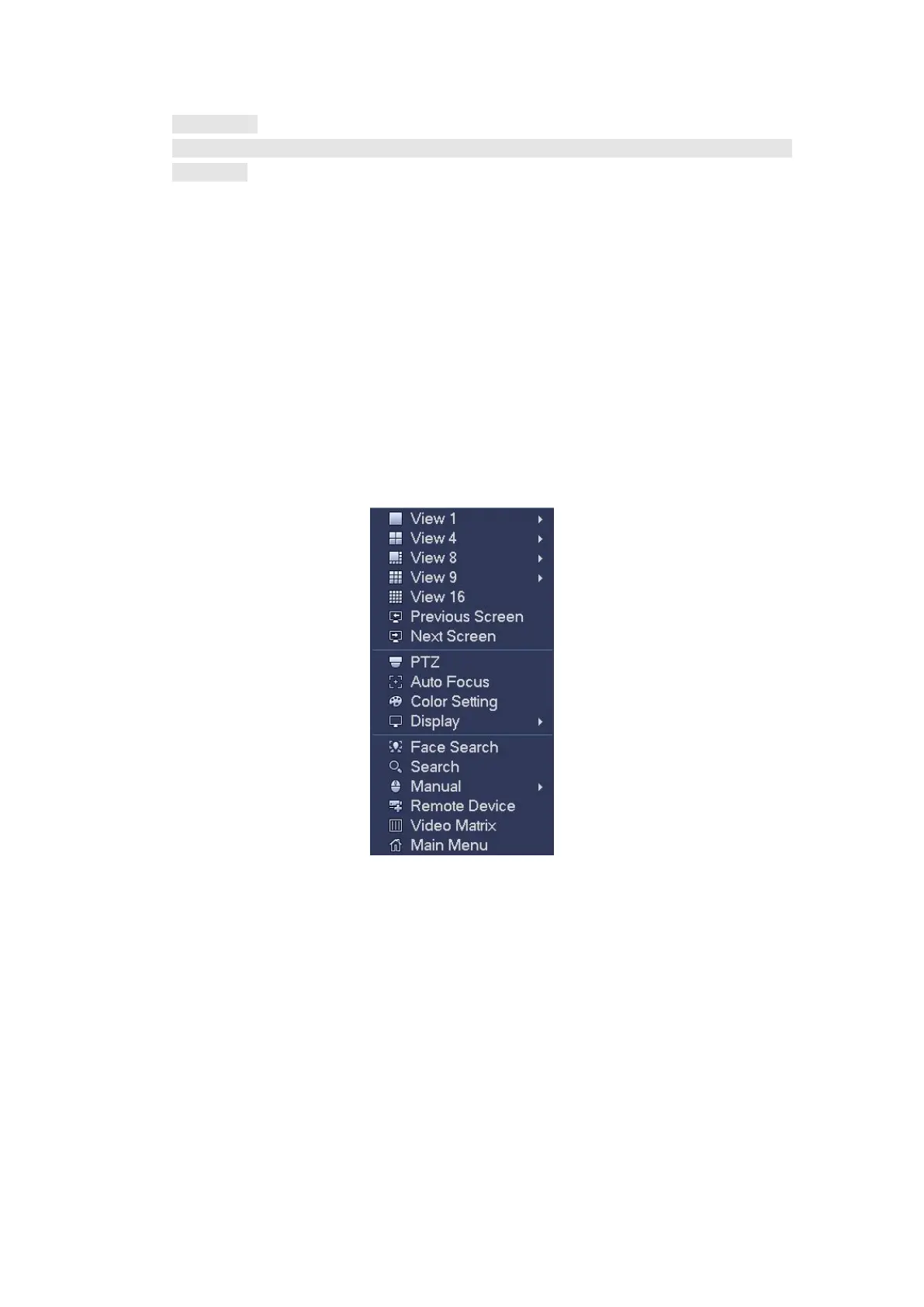

The following figure for reference only. Slight difference may be found on the user
interface.

Window split mode: You can select window amount and then select channels.

Previous screen/next screen: Click it to go to the previous screen/next screen.

PTZ: Click it to go to PTZ interface.

Auto focus: Please make sure you connected network camera supports this function.

Color setting: Set video corresponding information.

Display: Set video output rate.

Face search: It is to display human face list and view human face record.

Search: Click it to go to Search interface to search and playback a record file.

Record control: Enable/disable record channel.

Alarm output: Enable/disable alarm output function.

Remote device: Click it to add remote device.

Video matrix: Set video matrix tour channel and interval.

Main menu: Go to system main menu interface.
Figure 4- 52
4.3.1 Window Switch
System supports 1/4/8/9-window (The options here depend on your product channel
amount). You can select from the dropdown list. See Figure 4- 53.

Dahua XVR5108C-S2 Specifications

General

Main Processor	Embedded processor
Operating System	Embedded Linux
Channels	8
Video Output	1 HDMI, 1 VGA
Audio In/Out	1/1
Two-way Talk	Yes
Audio Compression	G.711
Audio Sample Rate	8KHz
Audio Bit Rate	64Kbps
OSD	Yes
Alarm Input	4
Power Supply	DC 12V
Operating Conditions	-10°C to +55°C
Compression	H.264
Multi-screen Display	1/4/8
Ethernet	1 RJ-45 (10/100M)
Network Functions	P2P, DDNS
Smart Phone	iOS, Android
Internal HDD	1 SATA, up to 6TB
USB Interface	2 USB 2.0
Power Consumption	≤15W
Video Input	8 Channel, BNC
