Figure 2- 24

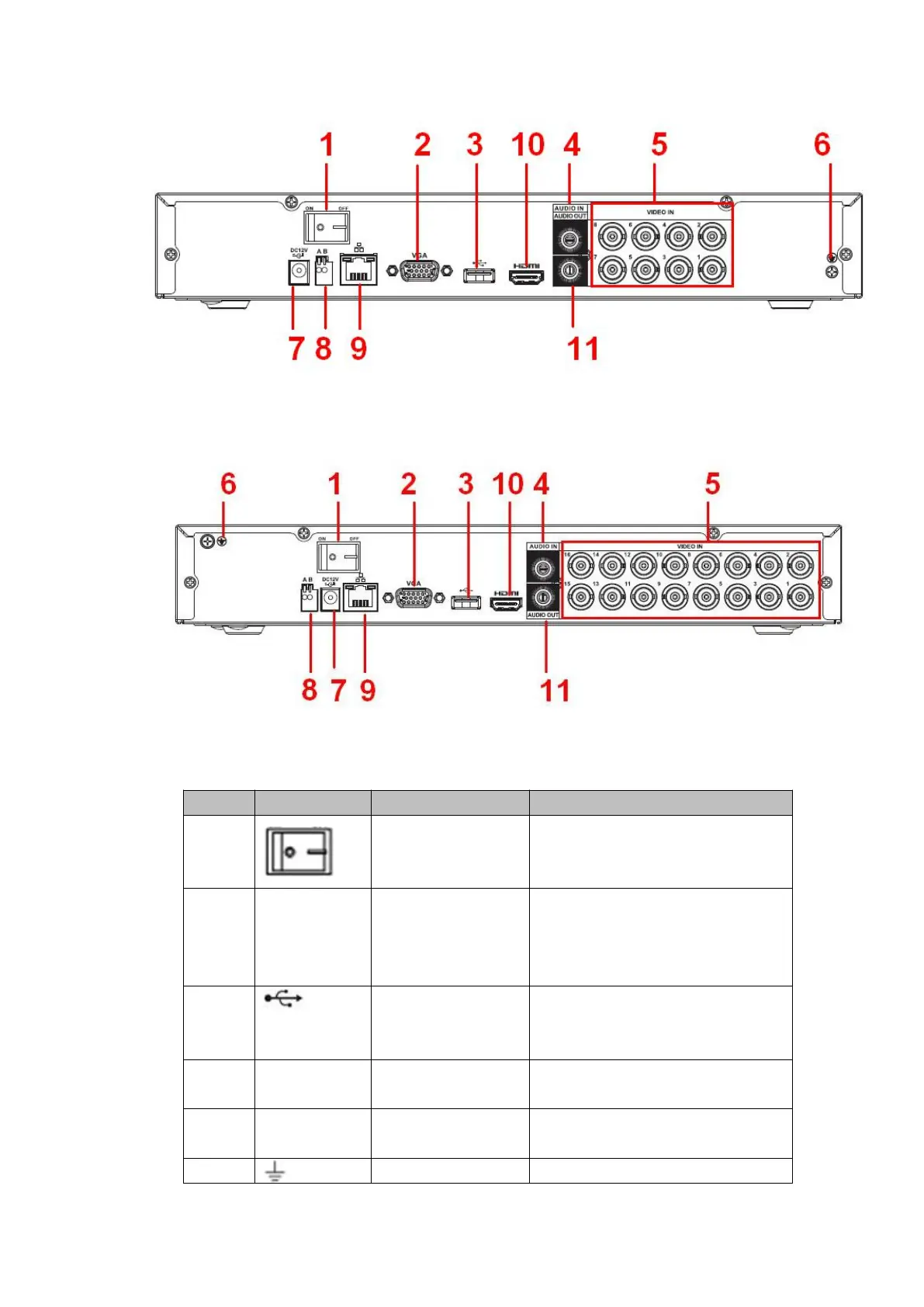

The HCVR5116H-V2 series rear panel is shown as below. See Figure 2- 25.
Figure 2- 25
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
4
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end
