Dahua XVR5108C-S2 User Manual

259

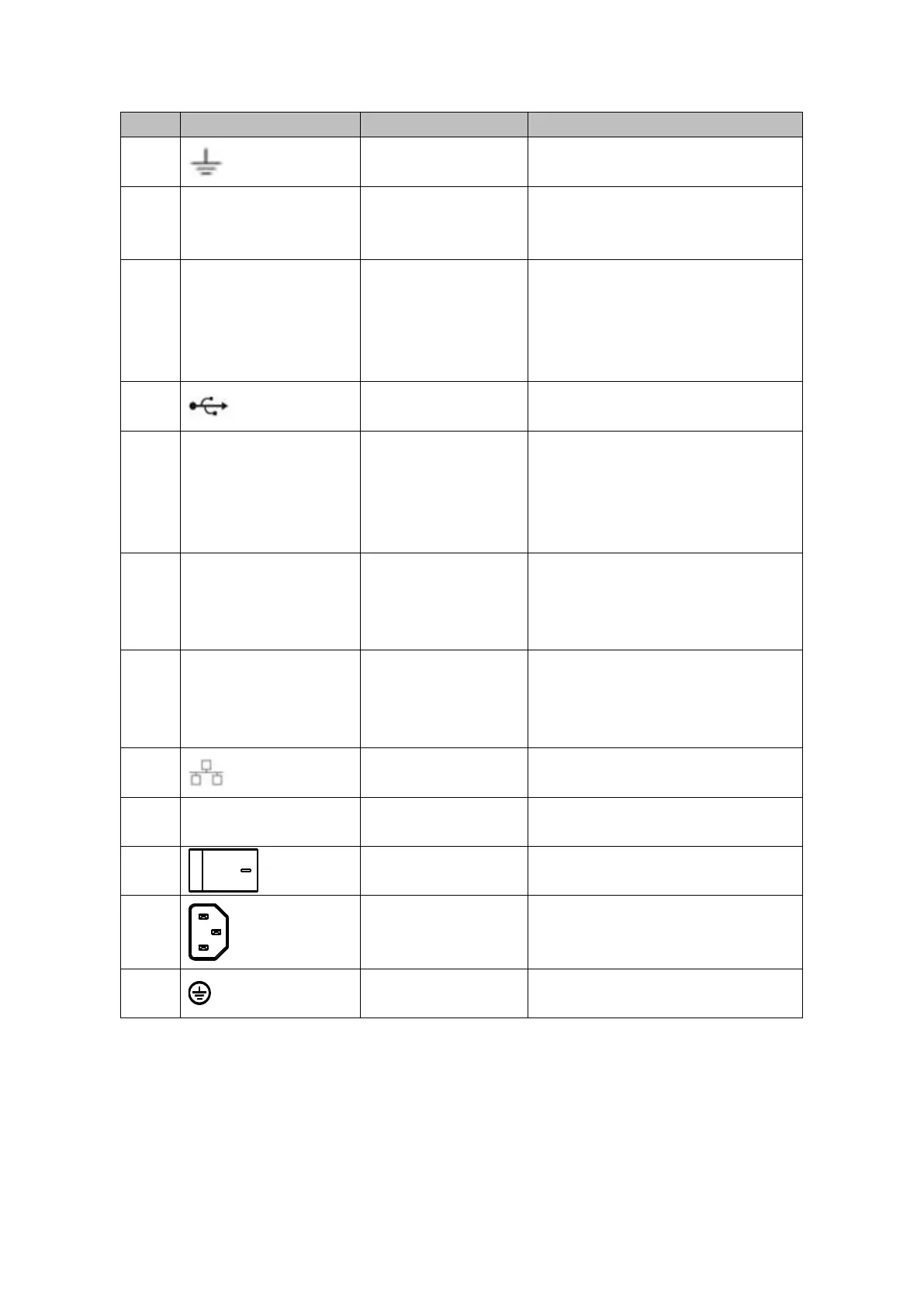

SN
Icon
Name
Note
Ground
Ground
7
RS-232
RS232 debug COM.
It is for general COM debug to
configure IP address or transfer
transparent COM data.
8
eSATA
eSATA port
External SATA port. It can connect
to the device of the SATA port.
Please make sure there is power
supplying when there is peripheral
connected HDD.
9
USB port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
10
HDMI1
High Definition
Media Interface 1
High definition audio and video
signal output port. It outputs the
same video source as VGA/TV.
Support mouse operation and
control.
11
HDMI2
High Definition
Media Interface 2
High definition audio and video
signal output port. Support
multiple-window video matrix
output. Support tour function.
12
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
13
Network port
1000Mbps Ethernet port
14
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
15
Power switch
Power on/off button.
16
Power socket
Power socket
17
Ground terminal
Ground
The XVR5432L rear panel is shown as below. See Figure 2- 86.
