Dahua XVR5108C-S2 User Manual

339

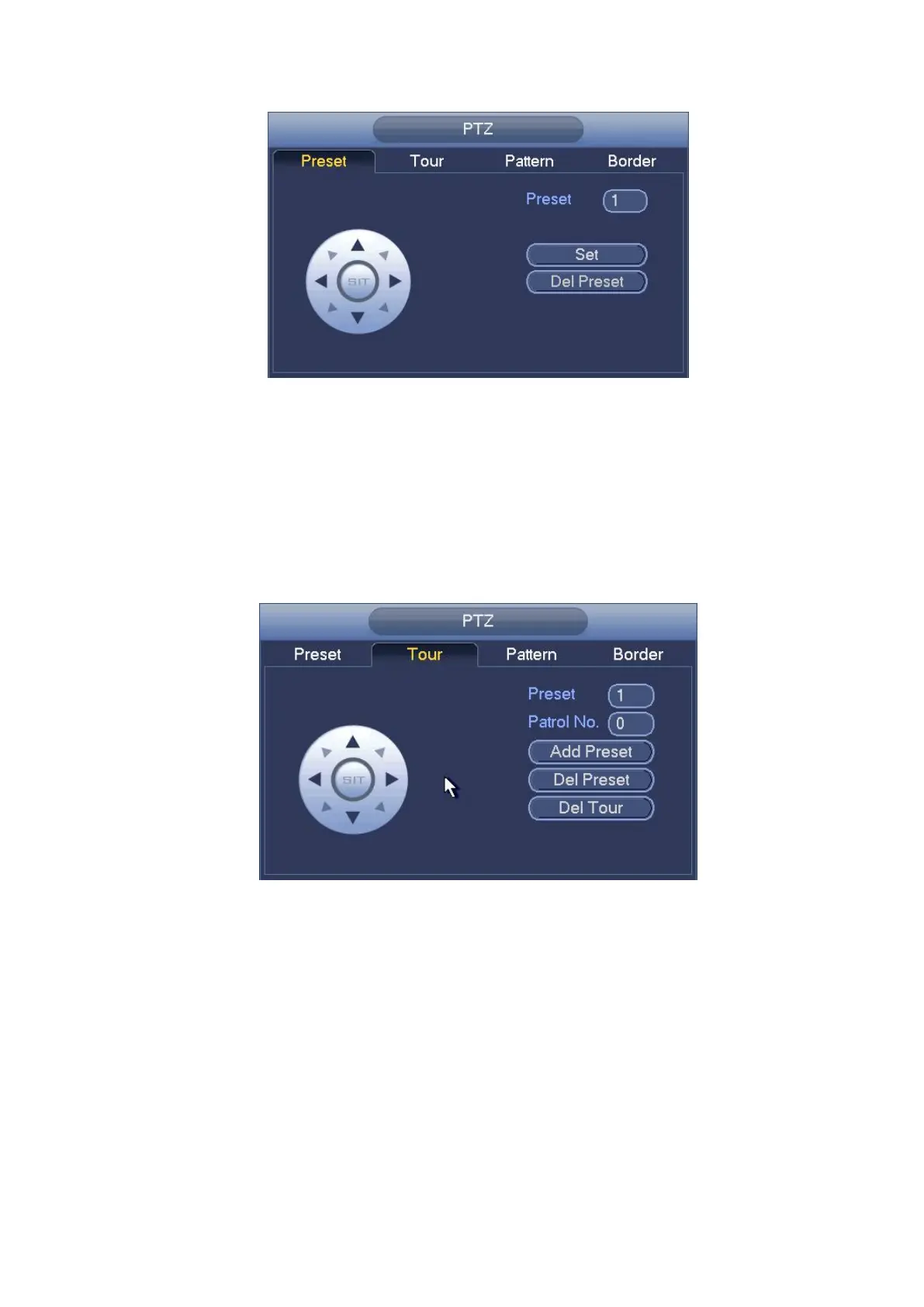

Figure 4- 58
Tour Setup
In Figure 4- 57, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour.
See Figure 4- 59.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove
it from the tour. Please note some protocols do not support delete preset function.
Figure 4- 59
Pattern Setup
In Figure 4- 57, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 4- 54 to
operate zoom/focus/iris/direction operation.
In Figure 4- 57, click End button.

Dahua XVR5108C-S2 Specifications

General

Brand	Dahua
Model	XVR5108C-S2
Category	DVR
Language	English
