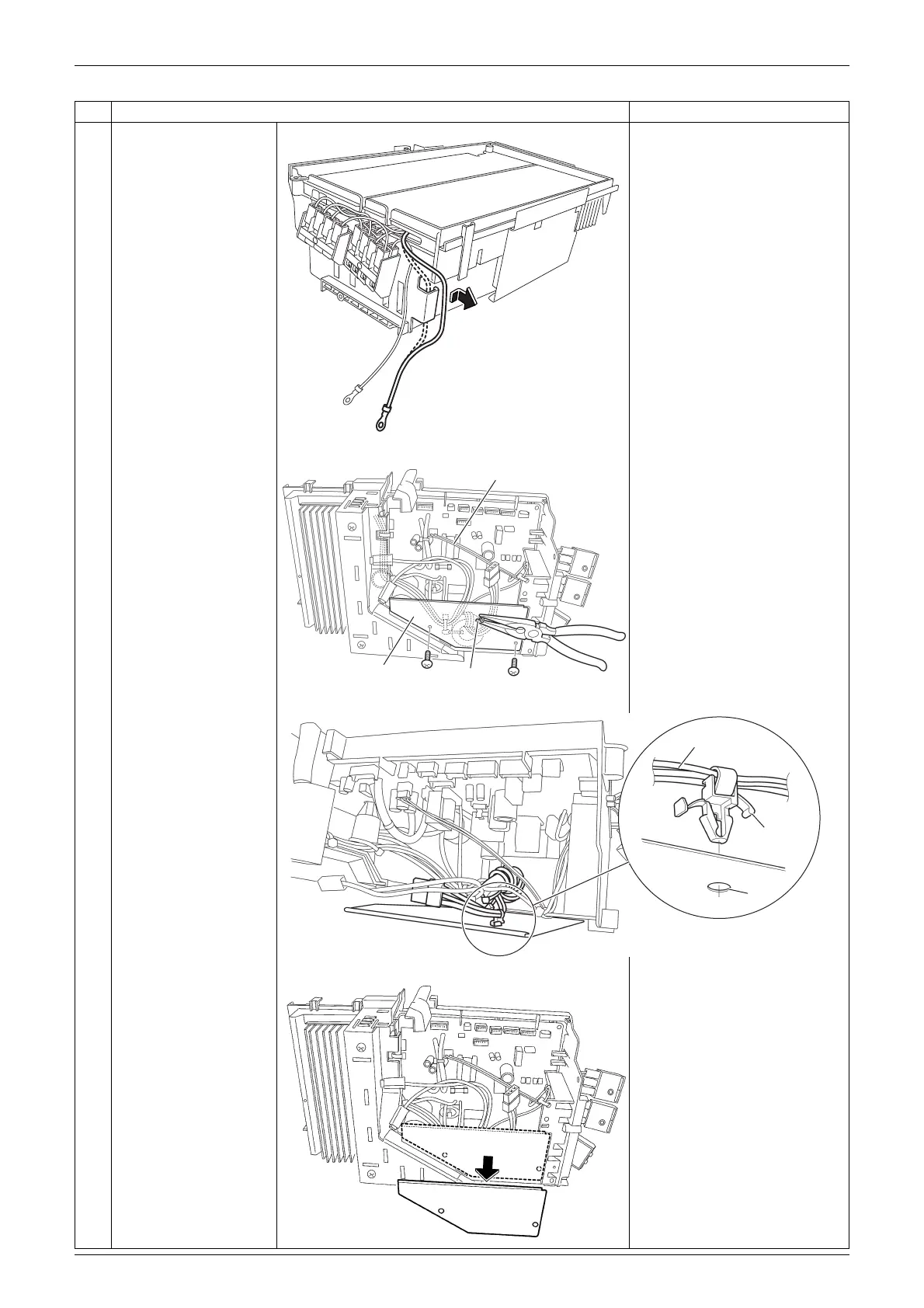

Removal of PCB Si12-891
10 Removal Procedure
4
Release the earth wire
from the hook.
5
Remove the 2 screws
and detach the clip to
remove the radiation
shield plate.
Step
Procedure Points
(R12541)
Temperature fuse harness
Radiation shield plate
Clip
(R7600)
Clip
Hole
(R7596)
Compressor
harness
(R12565)
