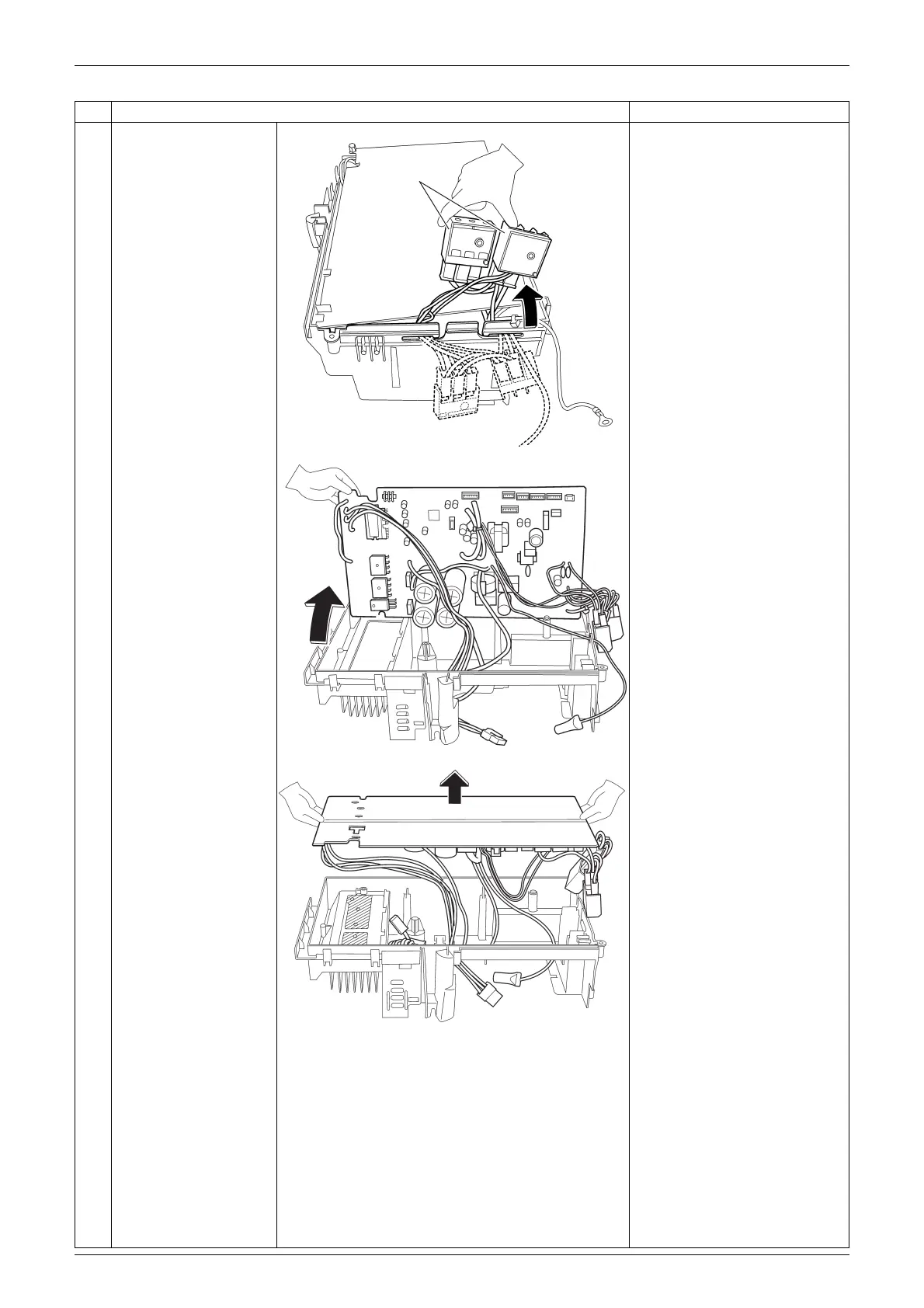

Removal of PCB Si12-891
12 Removal Procedure
9
Release the lead wires
from the hooks and
remove the terminal
boards.
10
Lift up the PCB.
11
Remove the PCB.
Step
Procedure Points
Terminal board
(R7604)
(R7605)
(R7606)
