Daikin 4MXS36NMVJU Service Manual

SiUS121630EA Troubleshooting for Outdoor Unit
Service Diagnosis 173
7.9 DC Fan Lock
Error Code
E7
Outdoor Unit LED
Display
A
j
1
i
2
i
3
i
4
i
5
h
Method of Error
Detection
An error is determined with the high-voltage fan motor rotation speed detected by the Hall IC.
Error Decision
Conditions

The fan does not start in 30 seconds even when the fan motor is running.

If the error repeats, the system is shut down.

Reset condition: Continuous run for about 5 minutes without any other error
Supposed
Causes

Disconnection of the fan motor

Foreign matter stuck in the fan

Defective fan motor

Defective outdoor unit PCB

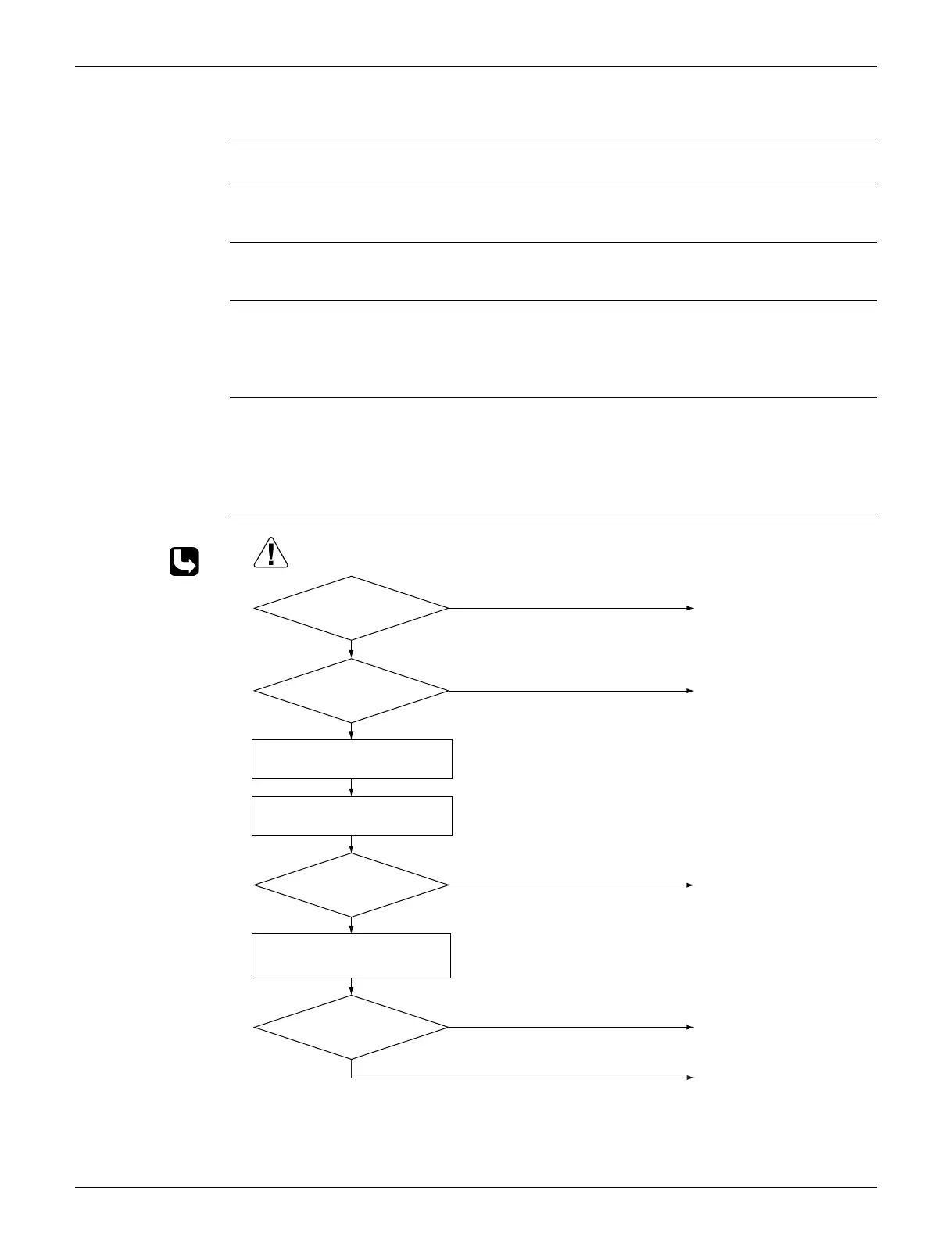

Troubleshooting
Check No.16
Refer to P.197
(R20416)
Caution
YES
YES
NO
YES
NO
NO
YES
NO
Turn on the power.
Rotate the fan.
Check No. 16
Check the rotation pulse input on
the outdoor unit PCB (main PCB).
Turn off the power and
reconnect the connector.
Remove the foreign
matters.
Replace the outdoor fan
motor.
Replace the outdoor unit
PCB (main PCB).
Fan motor connector
disconnected?
Foreign matters in or
around the fan?
Replace the outdoor fan
motor.
Fan rotates
smoothly?
Pulse signal generated?
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.

Daikin 4MXS36NMVJU Specifications

General

Model	4MXS36NMVJU
Category	Air Conditioner
Heating Seasonal Performance Factor (HSPF)	4.0
Number of Connectable Indoor Units	4
Seasonal Energy Efficiency Ratio (SEER)	6.0
Refrigerant	R32
Indoor Units Compatibility	Compatible with various indoor units
Indoor Unit Dimensions (HxWxD)	Varies by model
Indoor Unit Weight	Varies depending on the connected indoor unit model
Operating Temperature (Cooling)	-10 to 46 °C
Operating Temperature (Heating)	-15 to 24 °C
Type	Multi-Split System
