Daikin 4MXS36NMVJU Service Manual

SiUS121630EA Check
Service Diagnosis 193
8.4 Power Supply Waveform Check
Check No.11 Measure the power supply waveform between No. 1 and No. 2 on the terminal board, and check
the waveform disturbance.


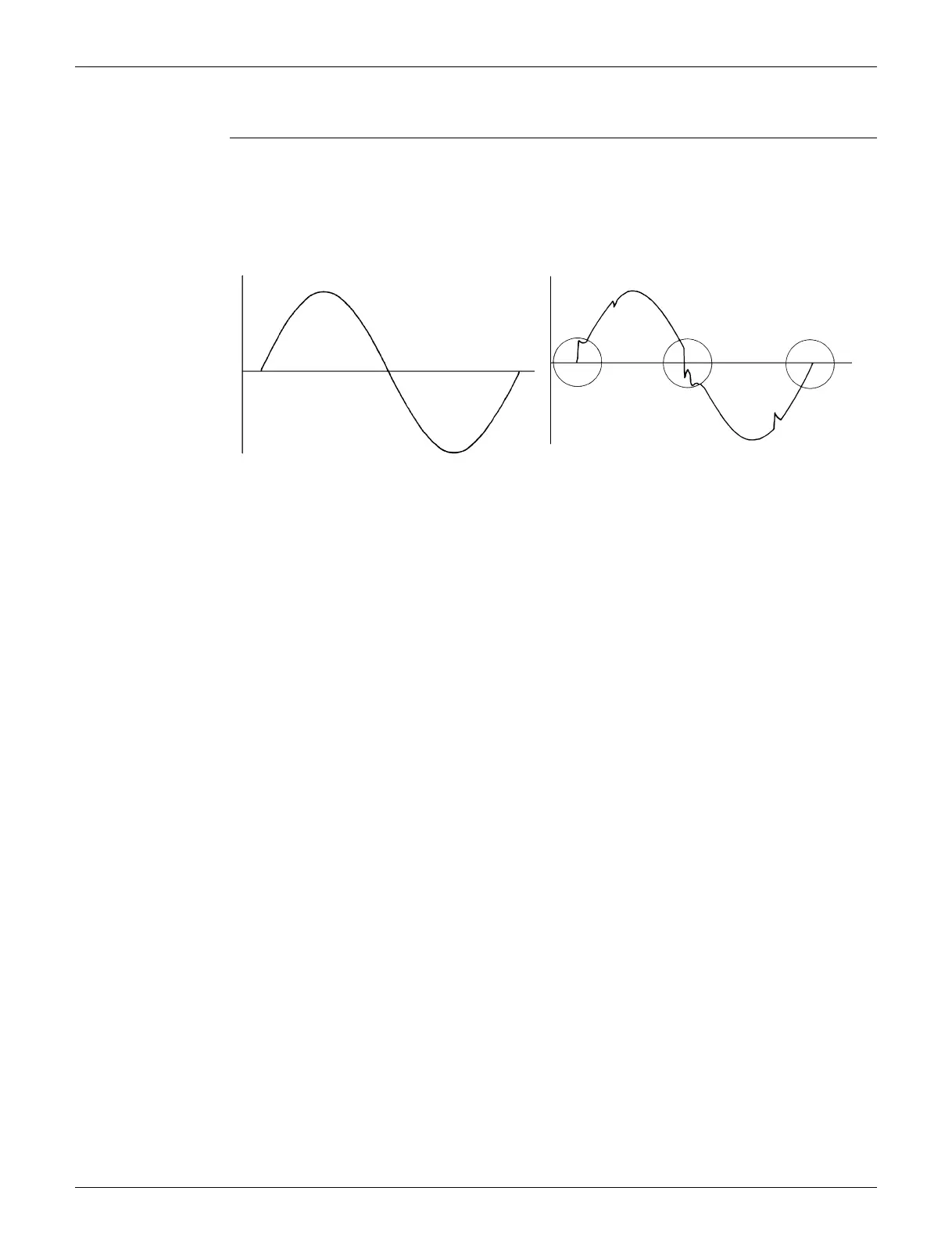

Check if the power supply waveform is a sine wave (Fig.1).

Check if there is waveform disturbance near the zero-cross (sections circled in Fig.2)
[Fig.1] [Fig.2]
(R1736)
(R1444)

Daikin 4MXS36NMVJU Specifications

General

Model	4MXS36NMVJU
Category	Air Conditioner
Heating Seasonal Performance Factor (HSPF)	4.0
Number of Connectable Indoor Units	4
Seasonal Energy Efficiency Ratio (SEER)	6.0
Refrigerant	R32
Indoor Units Compatibility	Compatible with various indoor units
Indoor Unit Dimensions (HxWxD)	Varies by model
Indoor Unit Weight	Varies depending on the connected indoor unit model
Operating Temperature (Cooling)	-10 to 46 °C
Operating Temperature (Heating)	-15 to 24 °C
Type	Multi-Split System
