SiUS121630EA Piping Diagrams
Appendix 229

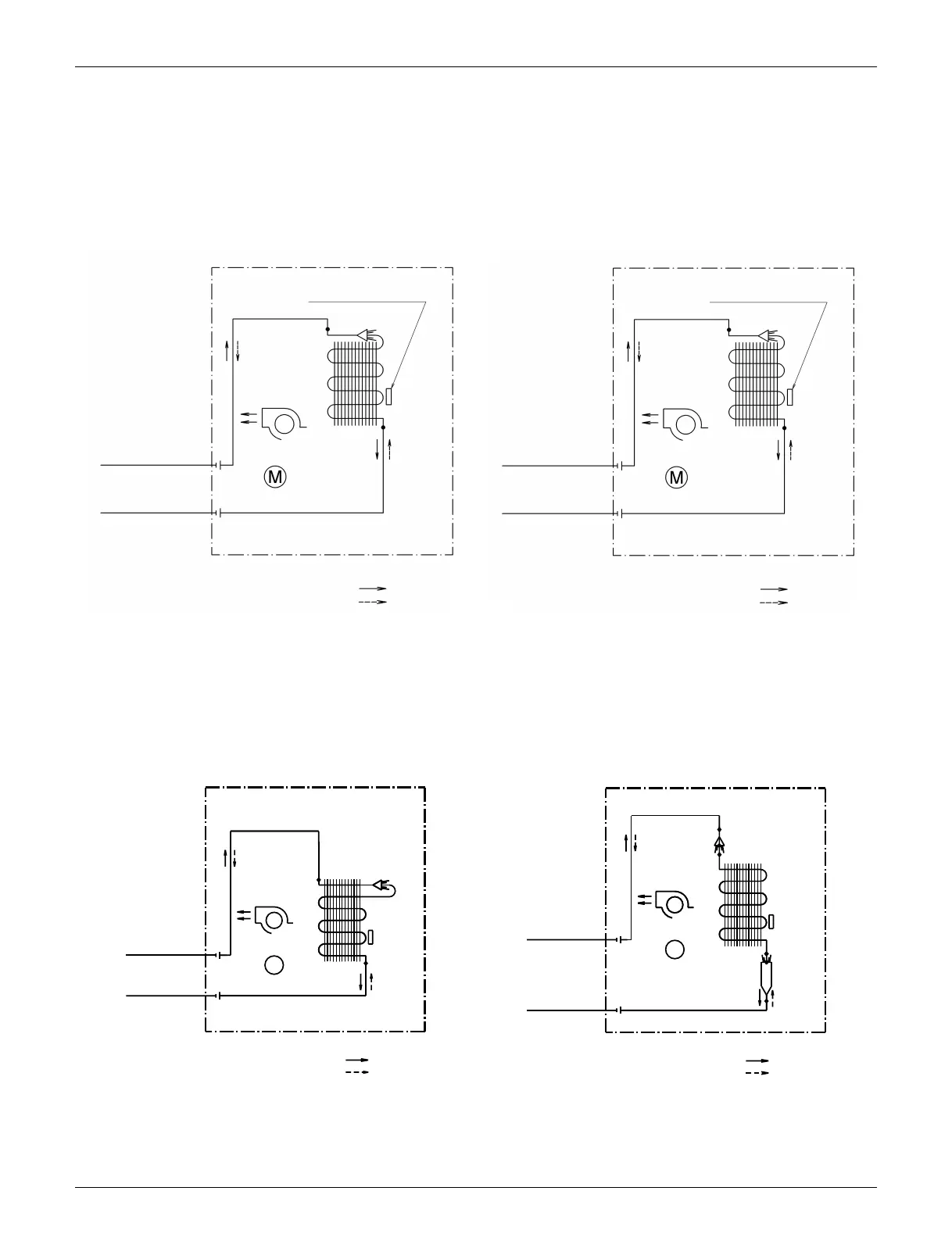

1. Piping Diagrams
1.1 Indoor Unit
CTXG09/12QVJUW(S) CTXG18QVJUW(S)
CTXS07LVJU, FTXS09/12LVJU FTXS15/18LVJU
4D101008
Indoor unit
1/4 CuT
3/8 CuT
Heat exchanger thermistor
Heat exchanger
Crossflow fan
Fan motor
Field piping
3/8 CuT
Field piping
1/4 CuT
Refrigerant flow
Cooling
Heating
4D101010
Indoor unit
1/4 CuT
3/8 CuT
Heat exchanger thermistor
Heat exchanger
Crossflow fan
Fan motor
Field piping
1/2 CuT
Field piping
1/4 CuT
Refrigerant flow
Cooling
Heating
INDOOR UNIT
1/4 CuT
HEAT EXCHANGER
CROSS FLOW FAN
FIELD PIPING
1/4 CuT
M
FAN MOTOR
FIELD PIPING
3/8 CuT
3/8 CuT
REFRIGERANT FLOW
COOLING
HEATING
4D074606
THERMISTOR
ON HEAT EXCH.
INDOOR UNIT
5/16 CuT
DISTRIBUTOR
HEAT EXCHANGER
CROSS FLOW FAN
M
FAN MOTOR
HEADER
1/2 CuT
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
FIELD PIPING
1/4 CuT
FIELD PIPING
1/2 CuT
4D074609
