9 | Electrical installation
Installer reference guide
121
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02
B
A
B
21 28
X2M
B
21 29
X2M
NO
NC
3 Fix the cable with cable ties to the cable tie mountings.
9.3.4 To connect the electricity meters
Wires: 2 (per meter)×0.75mm²
Electricity meters: 12VDC pulse detection (voltage supplied by PCB)
[9.A] Energy metering
INFORMATION
In case of an electricity meter with transistor output, check the polarity. The positive
polarity MUST be connected to X5M/6 and X5M/4; the negative polarity to X5M/5
and X5M/3.
1 Open the following (see "7.2.5To open the indoor unit"[470]):
1 Top panel
1
2
3
2 User interface panel
3 Upper switch box cover

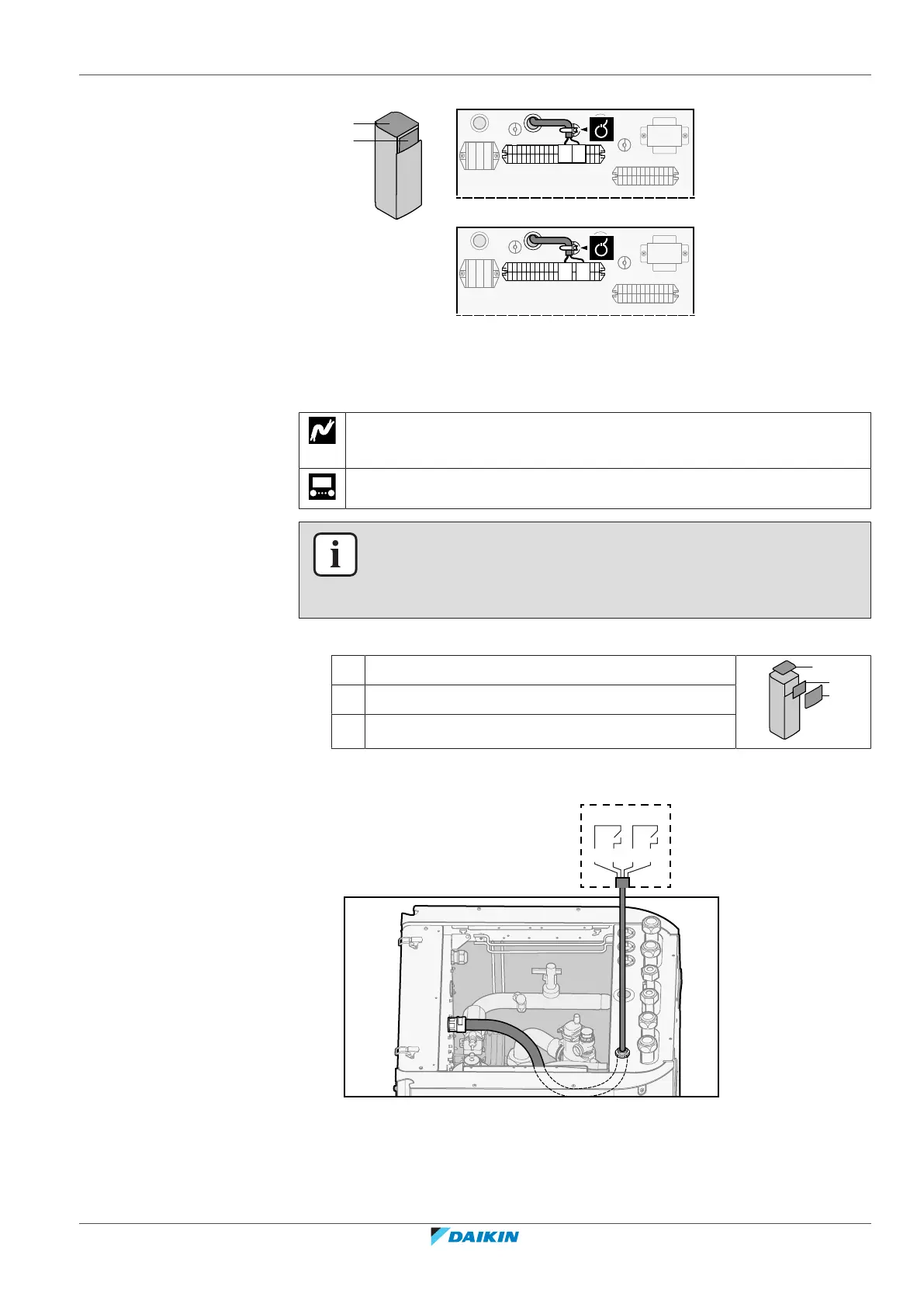

2 Connect the electricity meters cable to the appropriate terminals as shown in
the illustration below.
A
6543
S3S S2S
