Wiring to External Input Devices
Wire specifications:
2- conductor, 18 AWG, stranded, non-shielded copper cable / PVC or vinyl jacket
Max. length: 490 ft.
1. Control Input: Unified Operation/Stop
Wire according to input carrying voltage or not, as shown in the following diagrams:

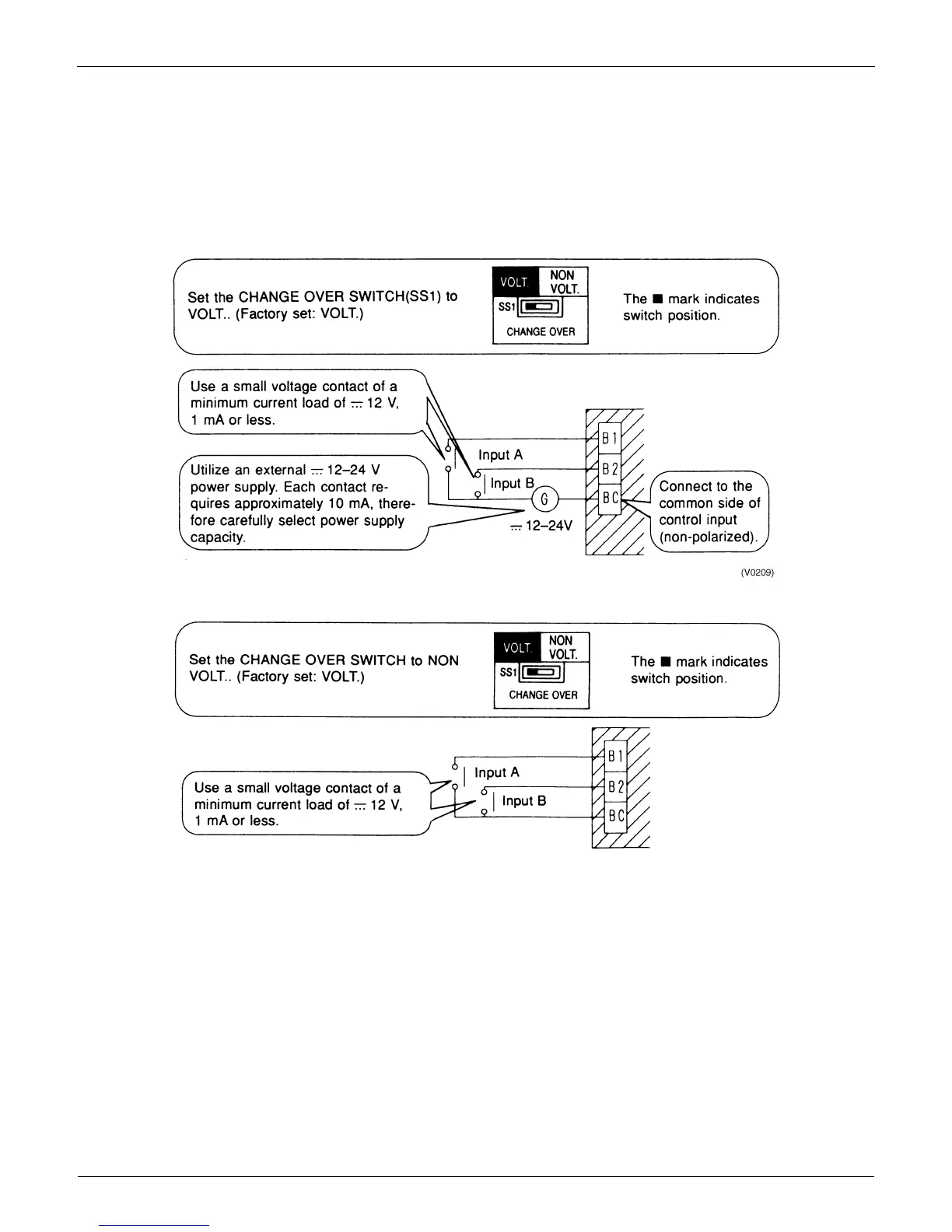

(1) Input with Voltage:
(2) Input with Non Voltage:
