4.4.3 Allocating the EHS157068 mixing module to
a heat generator
If just 1 heat generator is integrated in the RoCon system, adap-
tation of the heat generator ID is not necessary (see tab. 4-1).
If adaptations need to be made, the value of the [Boiler As-
signment] parameter (see chap. 6, tab. 6-1) must be set to the
same value as the heat generator ID of the Daikin heat generator
that is intended to supply the mixer circuit of this mixer module.
4.4.4 Master RoCon function
Each EHS157034 room station whose heating circuit ID is set to
a direct heating circuit can be assigned to the master RoCon
function.
● Enter the technician code (see chap. 3.6.1).
 After entering, the "Setup" level is displayed.
● Use the rotary button to select the [Master-RoCon]
parameter.
● Confirm the selection with a brief push of the rotary button.
 The setting of the parameter is displayed.
● Use the rotary button to set the parameter for the function to
"On" and confirm by briefly pressing the rotary button.
All settings on the EHS157034 room station act in the same
way as settings on the RoCon B1 control unit of the assigned
heat generator.
As a result, the functions for hot water generation can also be re-
motely operated from the room station.
Since, in this setting, the RoCon B1 control unit has control over
the assigned heating circuit, the settings made on the control unit
of the Daikin heat generator only have an effect on the heat gen
-
erator, but not on the heating circuit (see chap. 4.1).
4.4.5 Caretaker function
The caretaker function equates to the terminal function (see
chap.
3.4.9 and chap. 4.1 under the [Terminaladress] pa-
rameter).

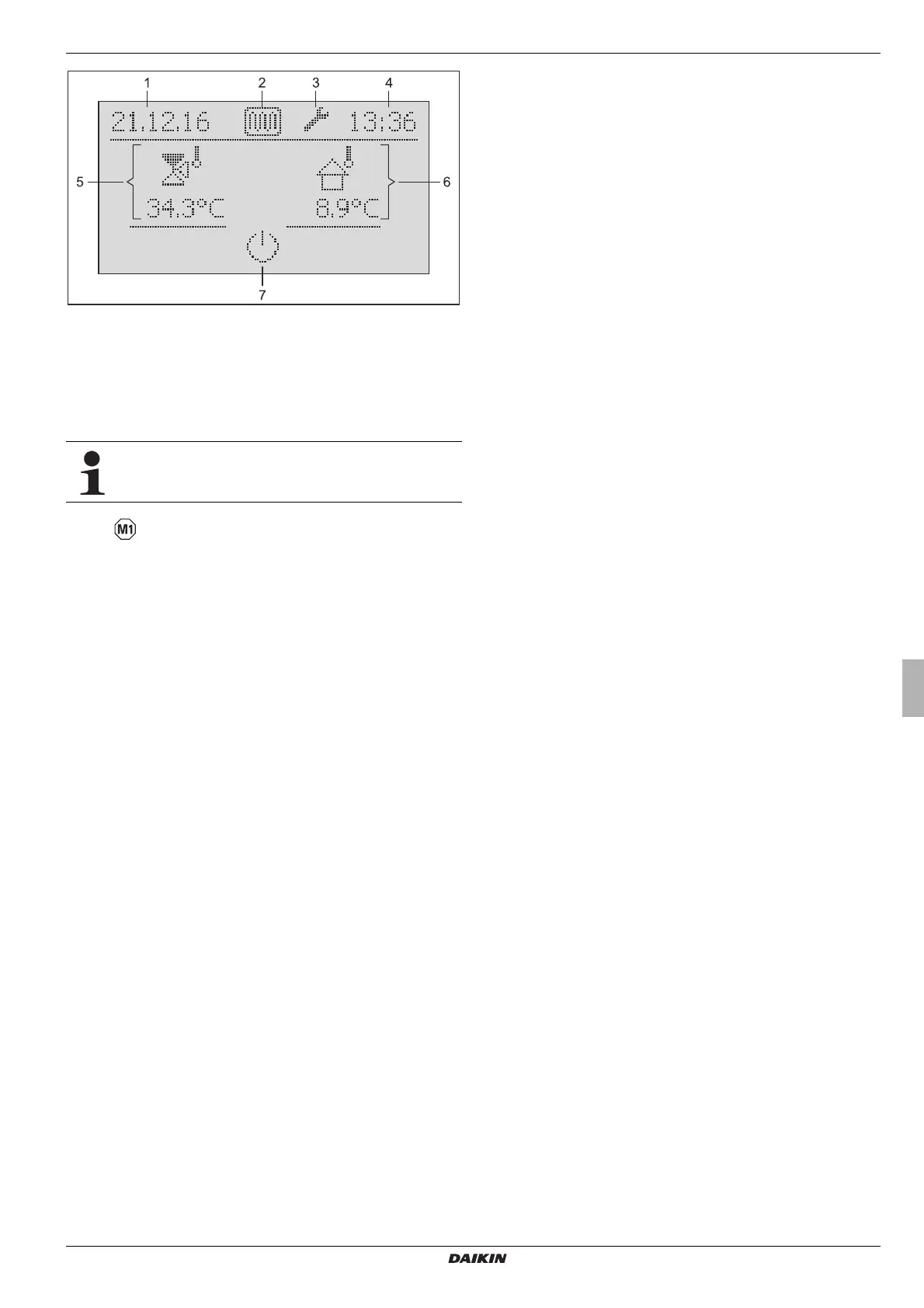

1 Display date
2 Status display: Screed func-
tion active
3 Status display: Expert login
4 Display time
5 Current T-HS of the mixer
circuit
6 Current outside temperature
7 Operating mode setting for
the assigned heating circuit
Fig. 4-5 Standard EHS157068 - "Mix Valve" display with example of
the status displays
In the "Mix Valve" setting, the room sensor of the
EHS157068 is deactivated.
