Daikin Enfinity CCH - Page 30

tyPiCal Wiring diagraMs

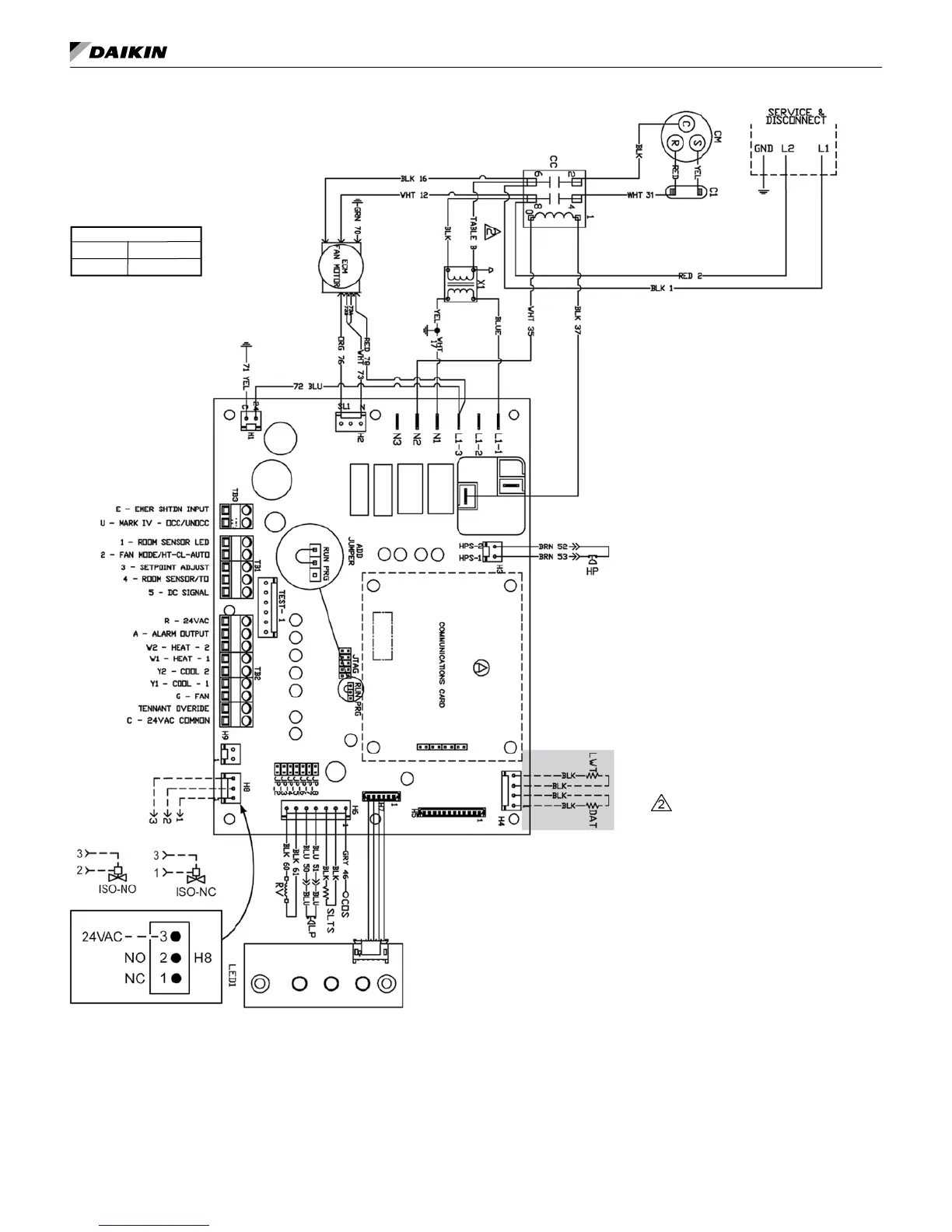

Figure 37: MicroTech III Unit Controller with EC Motor – 208/230-60-1 Unit Sizes 015-060
Drawing No. 919194871
Wiring diagrams are typical. For the latest
drawing version refer to the wiring diagram
located on the inside of the controls
access panel of the unit.
Table B
208V RED
230V ORG
Legend
Item Description
C1 Capacitor-Compressor
CC Compressor - Contactor
CM Compressor - Motor
COS CondensateOverowSensor
DAT Discharge Air Temp Sensor
HP High Pressure Switch
ISO-NC Isolation Valve - Normally Closed
ISO-NO Isolation Valve - Normally Open
LED1 LED Annunciator / Harness
LP Low Pressure Switch
SLTS Suction Line Temp Sensor
LWT Leaving Water Temp Sensor
MIII MicroTech III Main Board
R1 Relay - Fan Motor
RAT Return Air Temp Sensor
RV Reversing Valve Solenoid
X1 Transformer
_____
Standard Unit Wiring
_ _ _ _
Optional Wiring (by others)
Note: Gray tinted areas in the wiring diagram: Units with factory installed communication module include Discharge Air Temperature (DAT) and
Return Air Temperature (RAT) sensors shipped loose and are field installed. The Leaving Water Temperature (LWT) sensor is factory installed.
Entering Water Temperature (EWT) sensor is included with ECM and/or Secondary Electric Heat.
Notes:
1. Main board jumpers:
JP3 Geothermal
Transformer:
Unused wire to be capped.
