9 | Electrical installation
Installer reference guide
138
ERGA04~08EA + EHVH04+08SU18+23EA
Daikin Altherma 3 R F
4P629090-1A – 2021.11
A
X10M.1
X10M.2
X10M.3
X10M.4
L
N
L
N
2
1

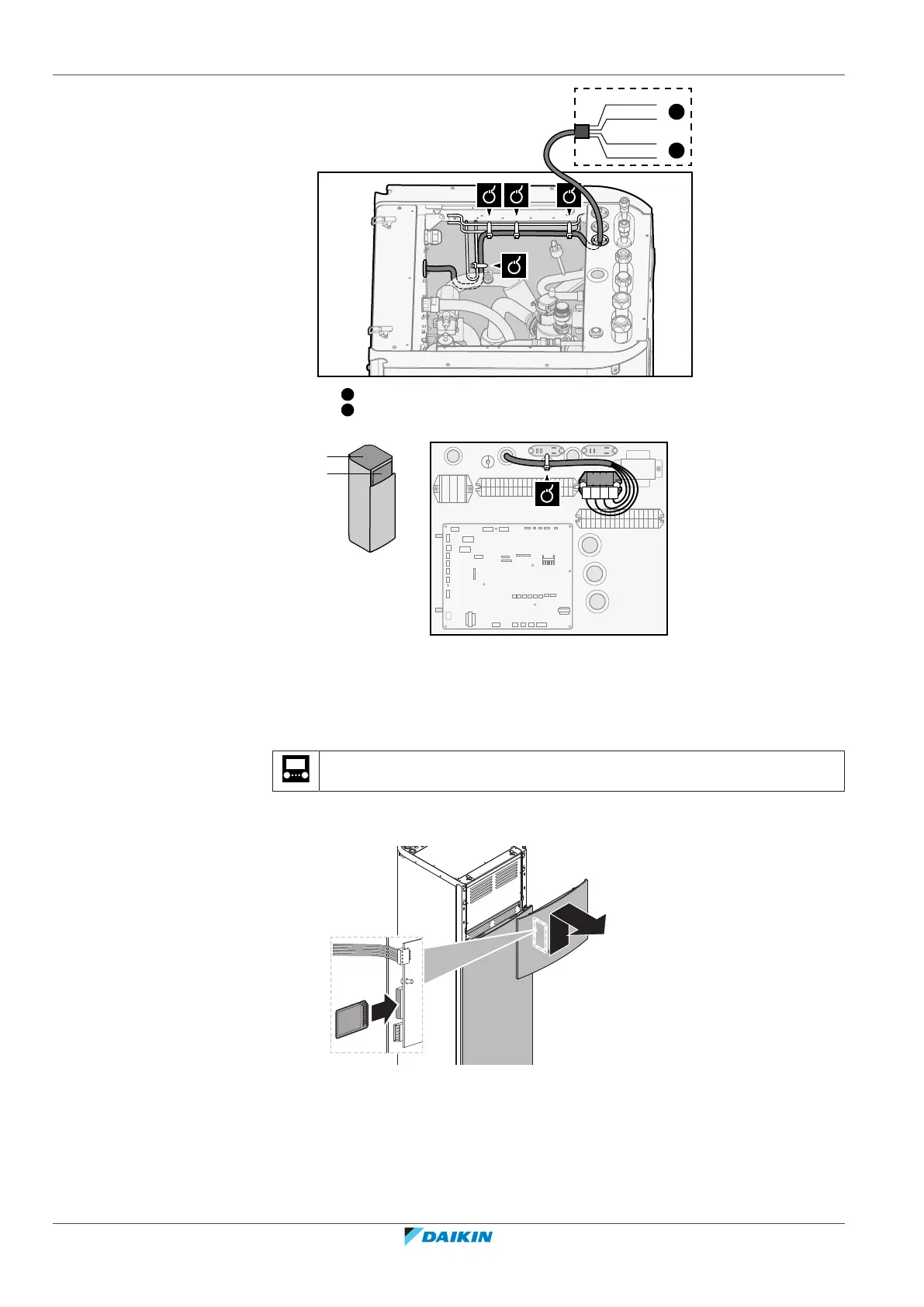

High voltage Smart Grid contact 1
High voltage Smart Grid contact 2
4 Fix the cables with cable ties to the cable tie mountings. If necessary, bundle
excessive cable length with a cable tie.
9.3.12 To connect the WLAN cartridge (delivered as accessory)
[D] Wireless gateway
1 Insert the WLAN cartridge into the cartridge slot on the user interface of the
indoor unit.
9.4 After connecting the electrical wiring to the indoor unit
To prevent water ingress to the switch box, seal the low voltage wiring intake using
the sealing tape (delivered as accessory).
