9
Application Information

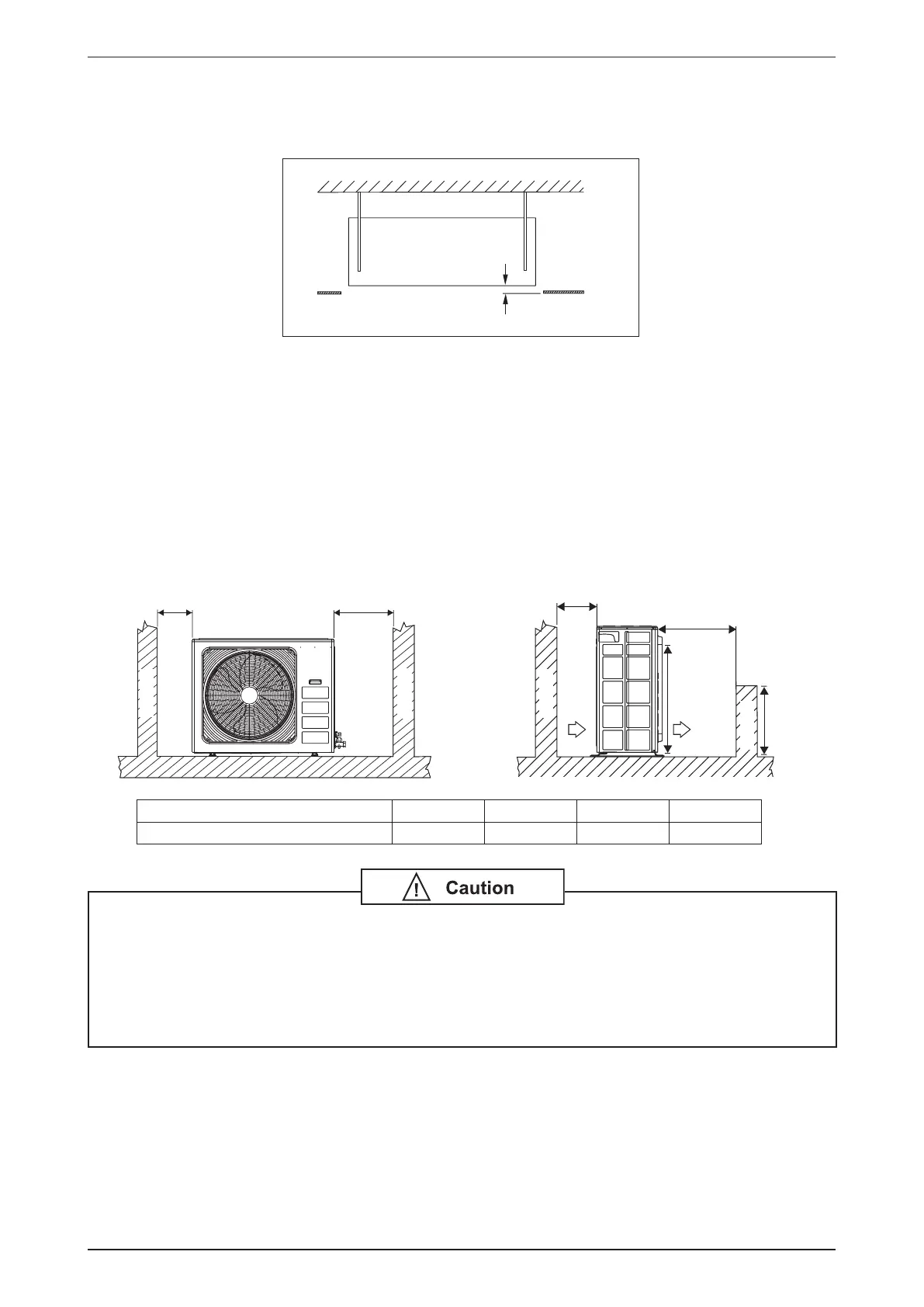

Unit Installation
Indoor Unit
Ceiling Board
38mm
• Hold the unit and hang it on the hanging rod with the nut and washer.
• Adjust the unit height to 38mm between the indoor unit bottom surface and the ceiling surface.
• Conrmwithalevelgaugethattheunitisinstalledhorizontallyandtightenthenutandbolttopreventunitfallingand
vibration.
• Open the ceiling board along the outer edge of the paper installation template.
2) Outdoor Installation Clearance
Outdoor unit must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth
air ow. Select the coolest possible place where intake air should not hotter than the outside temperature
(Max. 45°C).
MADE IN MALAYSIA
Obstacle
C
D
Obstacle
Service Space
Discharge air
B
Obstacle
Obstacle
H/2
H
Air Inlet
Avoid installing or operating the condensing unit in the environment that is exposed to the
following substances:
• Oils (including machine oils)
• Salt (e.g. coastal area)
• Sulphide gas (e.g. hot spring areas, oil re nery plant, etc)
Such substance may lead to the failure of the unit.
ALL MODELS A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm
