Daikin FDMQ-R Series User Manual

FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
131
3P243521-7L
4

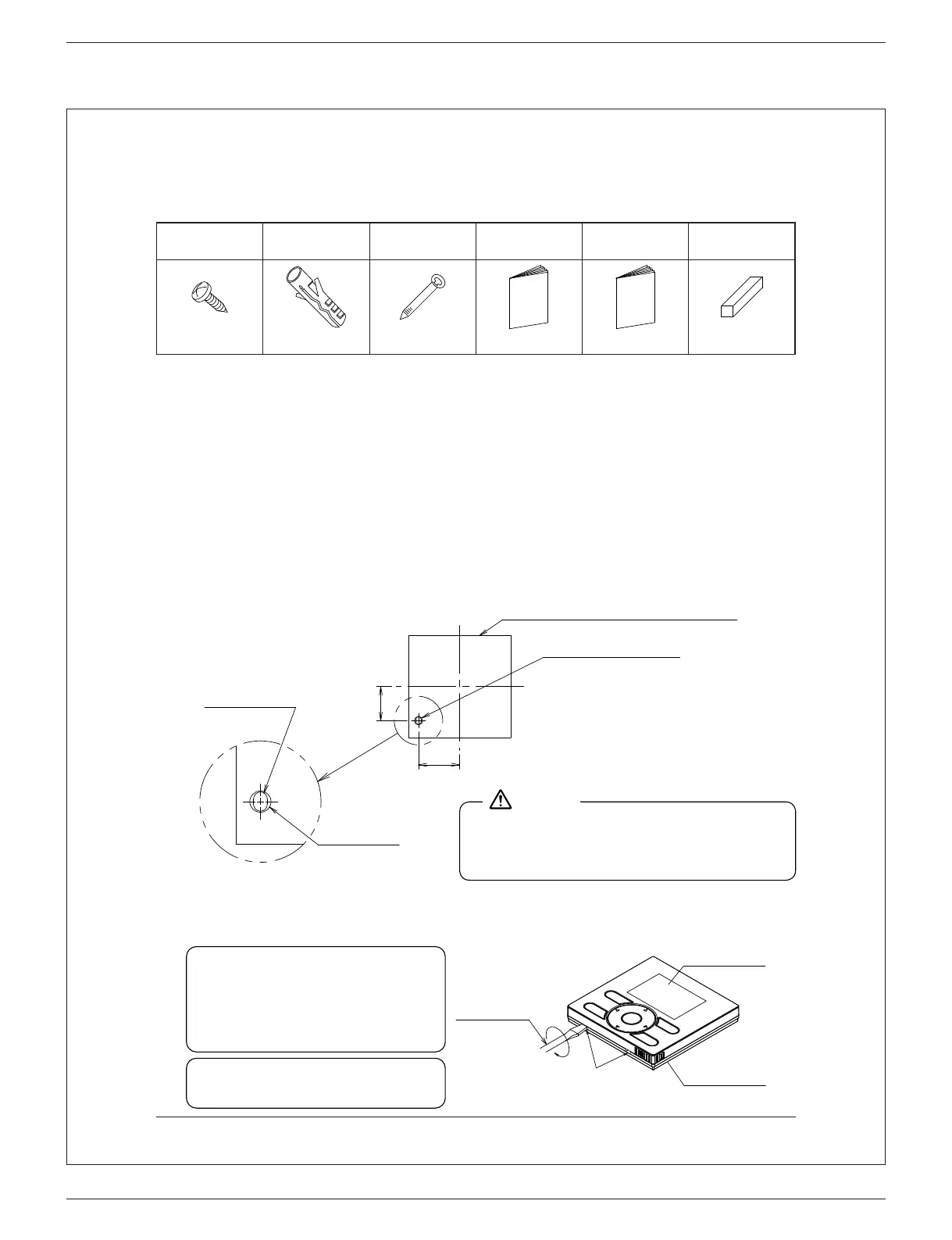

Accessories2.
The following accessories are included.
Drywall screw Drywall anchor Wire tie
Operation
manual
Installation
manual
Wiring retainer
(2 pcs.) (2 pcs.) (1 pc.) (1 pc.) (1 pc.) (1 pc.)
Remote Controller Installation Procedure 3.
Determine where to install the remote controller.3-1
Make sure to follow the Safety Considerations when determining the location.
If the control wire for the remote controller is to be routed3-2
from the rear, consider the location of the access hole in the
lower case for making a hole in the wall.
Align the center of the wall
hole with the center of the
access hole on the controller
lower case when planning the
installation.
F5/16 to 3/8 (8 to 10)
External view of the remote controller
[Unit : inch (mm)]
Access
hole
F5/16 to 3/8
(8 to 10)
Lower case
Through-hole
1-15/16
(48.5)
1-9/16 (40)
Remove upper case.3-3
Insert a screwdriver in the recess of lower case to remove the upper case (2 points).
Upper case
Lower case
Screwdriver
Insert and twist the screwdriver
lightly for removal.
Remote controller printed-circuit
board is installed on the upper case.
Be careful not to damage the
printed-circuit board with the
screwdriver.
Be careful not to let dust or moisture
touch the printed-circuit board.
If the hole size is too large or not in the proper
location, it may be seen after the remote
controller is installed.
NOTE
01_EN_3P243521-7L.indd 4 11/27/2014 11:21:42 AM
