FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
133
3P243521-7L
6

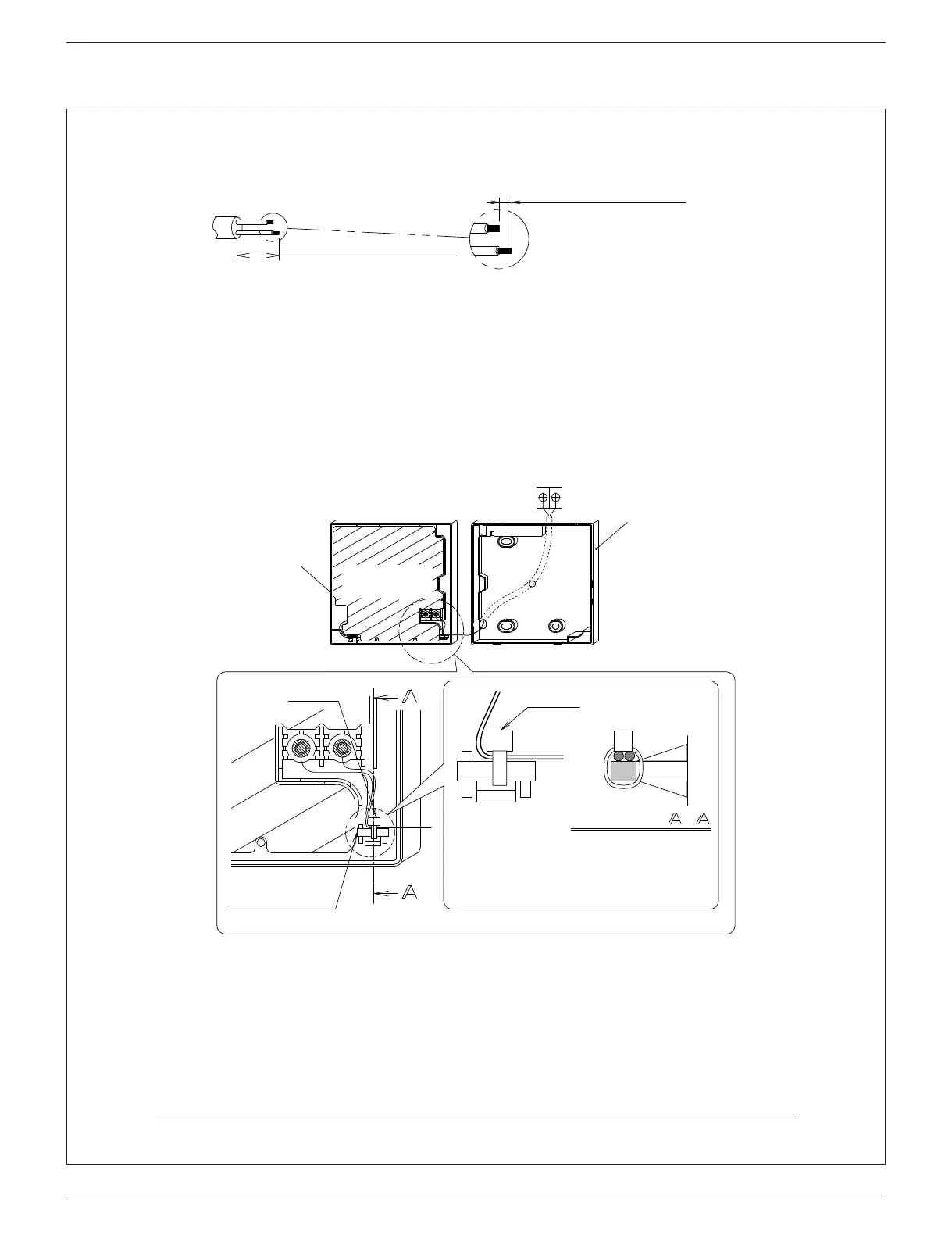

Prepare the wiring for connection to the remote controller following these instructions:
Remove the wire jacket
and insulation
Cutting guideline
Approx. 3/8 inch (10 mm)
To simplify the wiring, maintain
a 3/8 inch (10 mm) difference
between the length of the two
conductors.
Length of jacket to be removed:
Approx. 6 inch (150 mm) for top left outlet●
Approx. 8 inch (200 mm) for top center outlet●
Connect the terminals (P/P1, N/P2) of the remote controller to the terminals (P1, P2) of the
indoor unit. (P1 and P2 are not polarity sensitive.)
Back outlet3-5-1
<Wire attachment guideline>
Lower case
P1
Indoor unit
P2
Upper case
Wire tie
Wire attachment
point
Printed-circuit
board
Cross-section -
Secure the wire at the
attachment point by
using furnished wire
tie.
Wire tie
01_EN_3P243521-7L.indd 6 11/27/2014 11:21:42 AM
