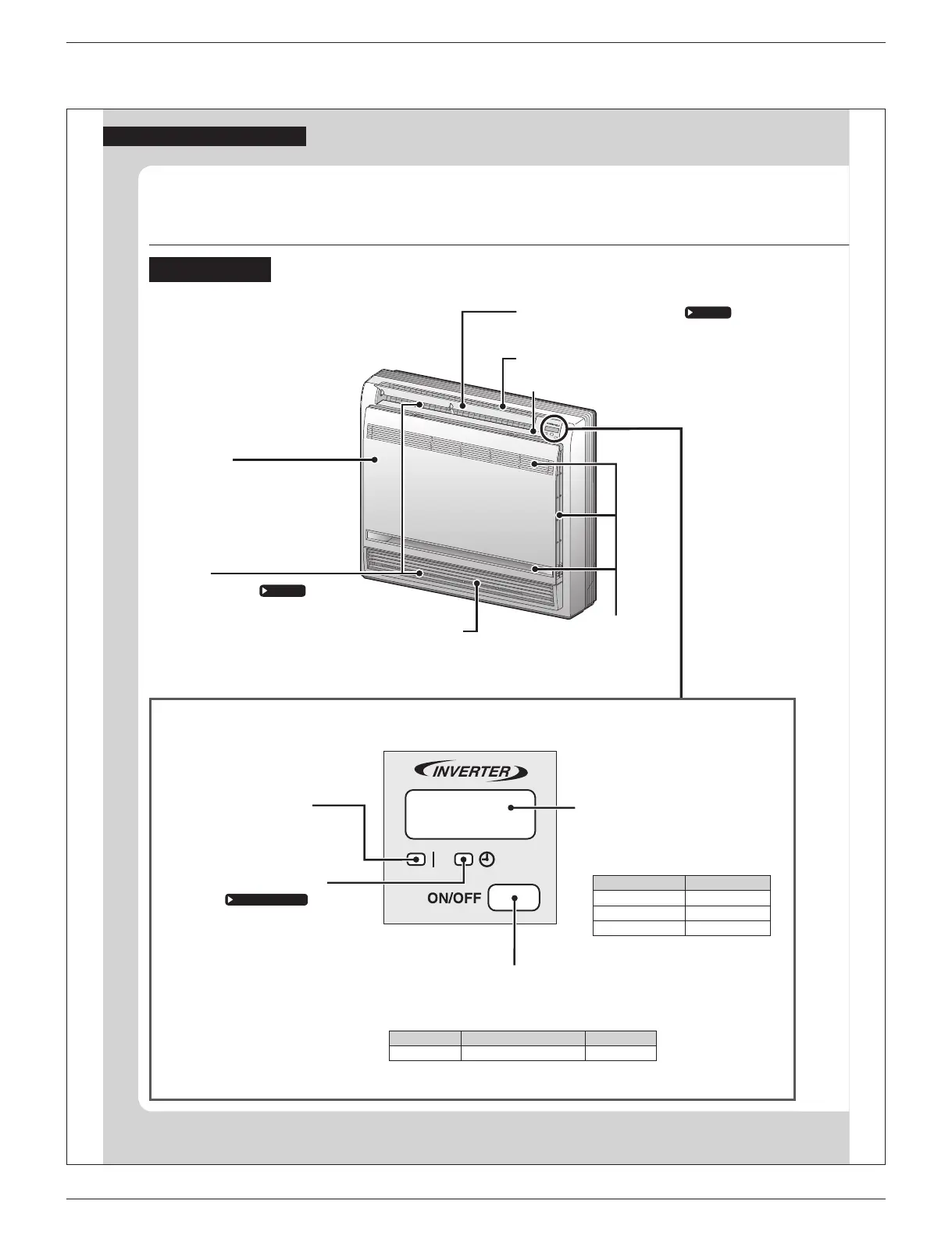

Air inlet
Front panel
Louvers
(vertical blade)
Page 13
• The louvers are inside of the air outlet.
Flap (horizontal blade)
Page 13
Air outlet
Air outlet
Model name
5
Read Before Operation
Names of Parts
Indoor Unit
Display
OPERATION lamp
(green)
TIMER lamp (orange)
Page 17,18,21,23
Signal receiver
• Receives signals from the remote
controller.
• When the unit receives a signal, you
will hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
• Press this switch once to start operation.
Press once again to stop it.
• For the operation mode setting, refer to the following table.
Mode Temperature setting Airow rate
AUTO 77°F (25°C) AUTO
• This switch can be used when the remote controller is missing.
