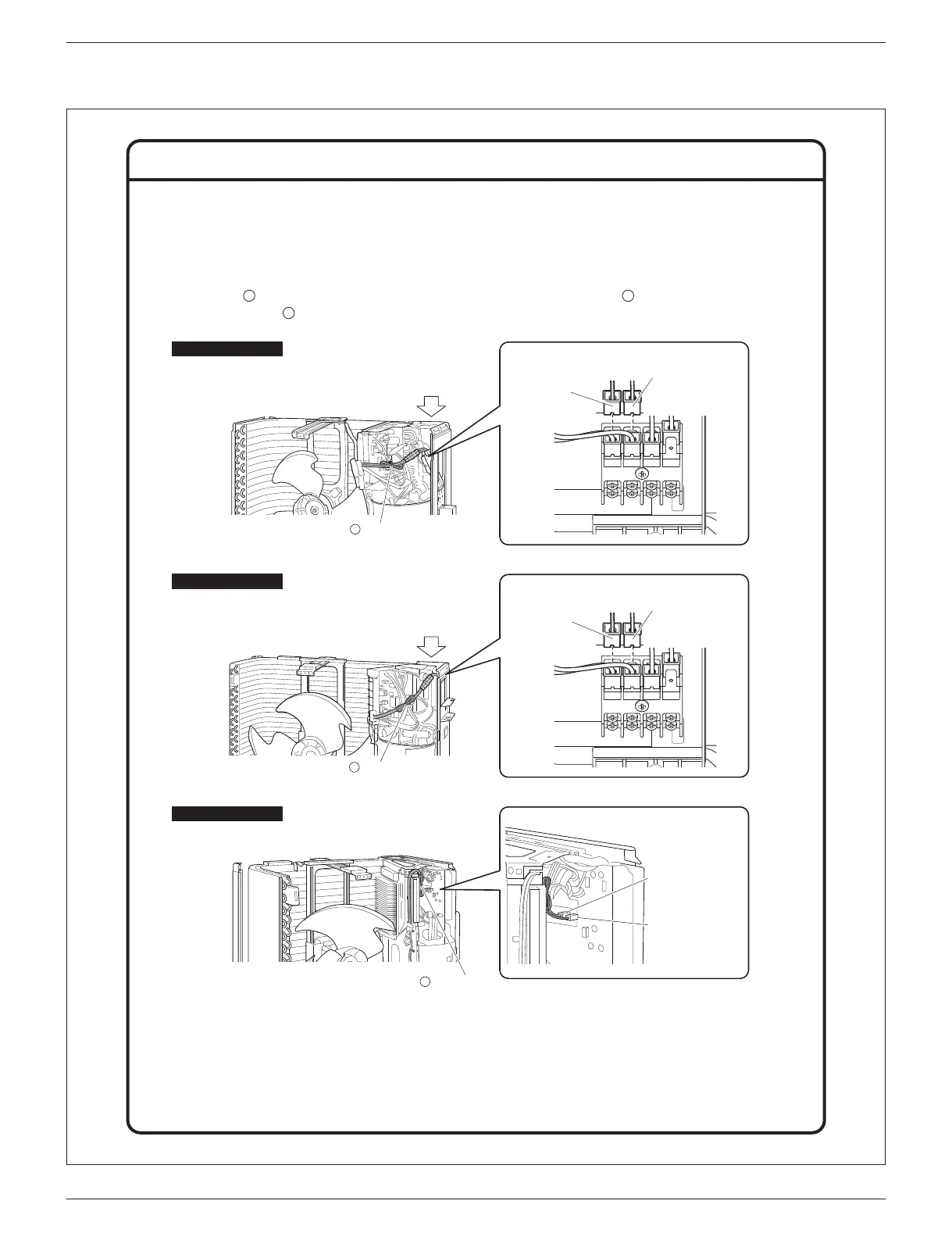

Installation Procedure (5)
5. Connect the faston terminals of the drain pan heater to the terminal
block of the outdoor unit.
1) Connect the thermostat-side terminal (black harness) to the leftmost terminal and the heater-side terminal (white harness)
to the second leftmost terminal.
r For type C models connect to the last terminal block of the terminal blocks in use.
2) Bundle the drain pan heater harness so that there is no slack and secure it with the binding band. (1 location)
r Cut the tip of the binding band.
For type A models
A
C
C
For type B models
Binding band
C
E
Heater-side
terminal
(white harness)
Thermostat-
side terminal
(black harness)
View E
Binding band
C
E
Heater-side
terminal
(white harness)
Thermostat-
side terminal
(black harness)
View E
For type C models
Heater-side terminal
(white harness)
Thermostat-side
terminal (black harness)
Binding band
C
6. Install each component to the original position.
r Be careful not to confuse screw types. Refer to “Installation Procedure (1) ”.
1) Install the front plate.
2) Install the anti-drip cover.
(For type B and C models only)
3) Install the top plate.
