INSTALLATION OF WIRED CONTROLLERIV

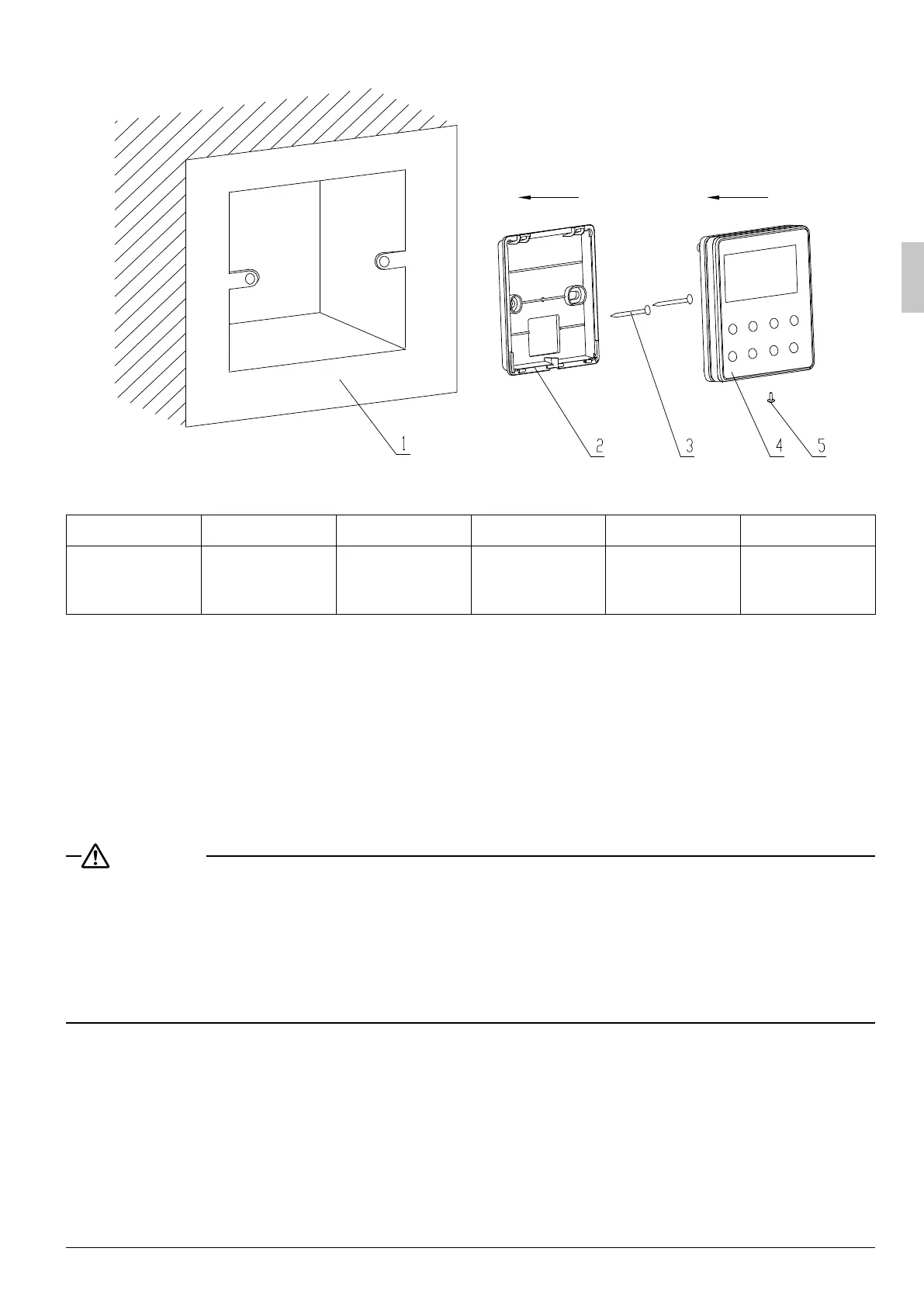

4.1 Sketch for Installation of Wired ControllerFig.
No.12345
Description
Socket’s base
box installed in
the wall
Soleplate of
controller
Screw M4X25
Front panel of
controller
Screw
ST2.2X6.5
Fig.4.1: Sketch for Installation of Wired Controller. Pay attention to the following items during the installation of
wired controller:
Cut off power supply before installation. It is prohibited to perform the whole procedure with electricity.1.
Pull out 4-core twisted pair line in mounting hole and then make it through the rectangle hole at the 2.
back of controller’s soleplate.
Joint the controller’s soleplate on wall face and then fi x it in mounting hole with screws M4X25.3.
Insert the 4-core twisted pair into controller’s slot through rectangle hole and buckle the front panel and 4.
soleplate of controller together.
At last, fi x the controller’s front panel and soleplate with screws ST2.2X6.5.5.
CAUTION
During connection of wirings, pay special attention to the following items to avoid interference of electromag-
netism to unit and even failure of it.
To ensure normal communication of the unit, signal line and wiring (communication) of wired controller 1.
should separate from power cord and indoor/outdoor connection lines. The min distance between them
should be 20cm.
If the unit is installed at the place where there is interference of electromagnetism, signal line and wiring 2.
(communication) of wired controller must be shielding twisted pair lines.
