Daikin FDYM-PV1 - 8 Installation Instructions; Dimensions of Indoor Unit

English 25
INSTALLATION INSTRUCTIONS VIII Profi le Dimensions of Indoor Unit & Outdoor Unit

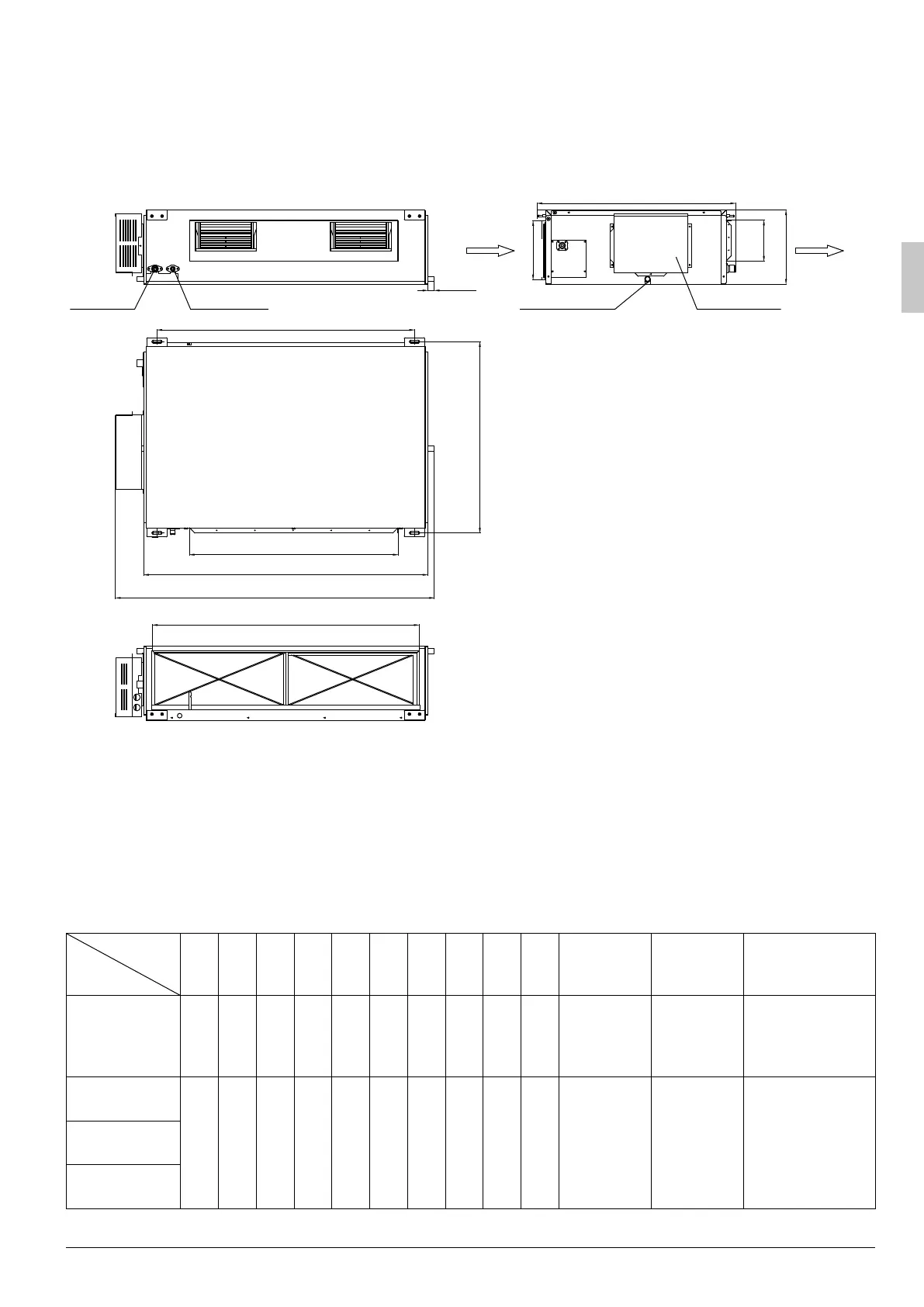

8.1 Dimensions of Indoor Unit
8.1.1 Dimensions of Indoor Unit
Gas Pipe Drainage Pipe
Air Intake Air Supply
26
I
A
C
D
E
G
B
H
J
Liquid Pipe Electric Box
F
8.1Fig.
For:
FDM24PEV1K FDYM24PEV1K
FDM30PEV1K FDYM30PEV1K
FDM36PEV1K FDYM36PEV1K
FDM42PEV1K FDYM42PEV1K
FDM48PEV1K FDYM48PEV1K
Unit: mm
Item
Model
ABCDEFGH I J
Connecting
Pipe
(Liquid Pipe)
Connecting
Pipe
(Gas Pipe)
Drainage Pipe
(Outer Diameter ×
Wall Thickness)
FDM24PEV1K
FDYM24PEV1K
FDM30PEV1K
FDYM30PEV1K
1101 515 820 1159 1270 530 1002 160 235 268
φ9.52 φ15.9 φ20 × 1.2
FDM36PEV1K
FDYM36PEV1K
1011 748 820 1115 1226 775 979 160 231 290 φ12.7 φ19.05 φ20 × 1.2
FDM42PEV1K
FDYM42PEV1K
FDM48PEV1K
FDYM48PEV1K
