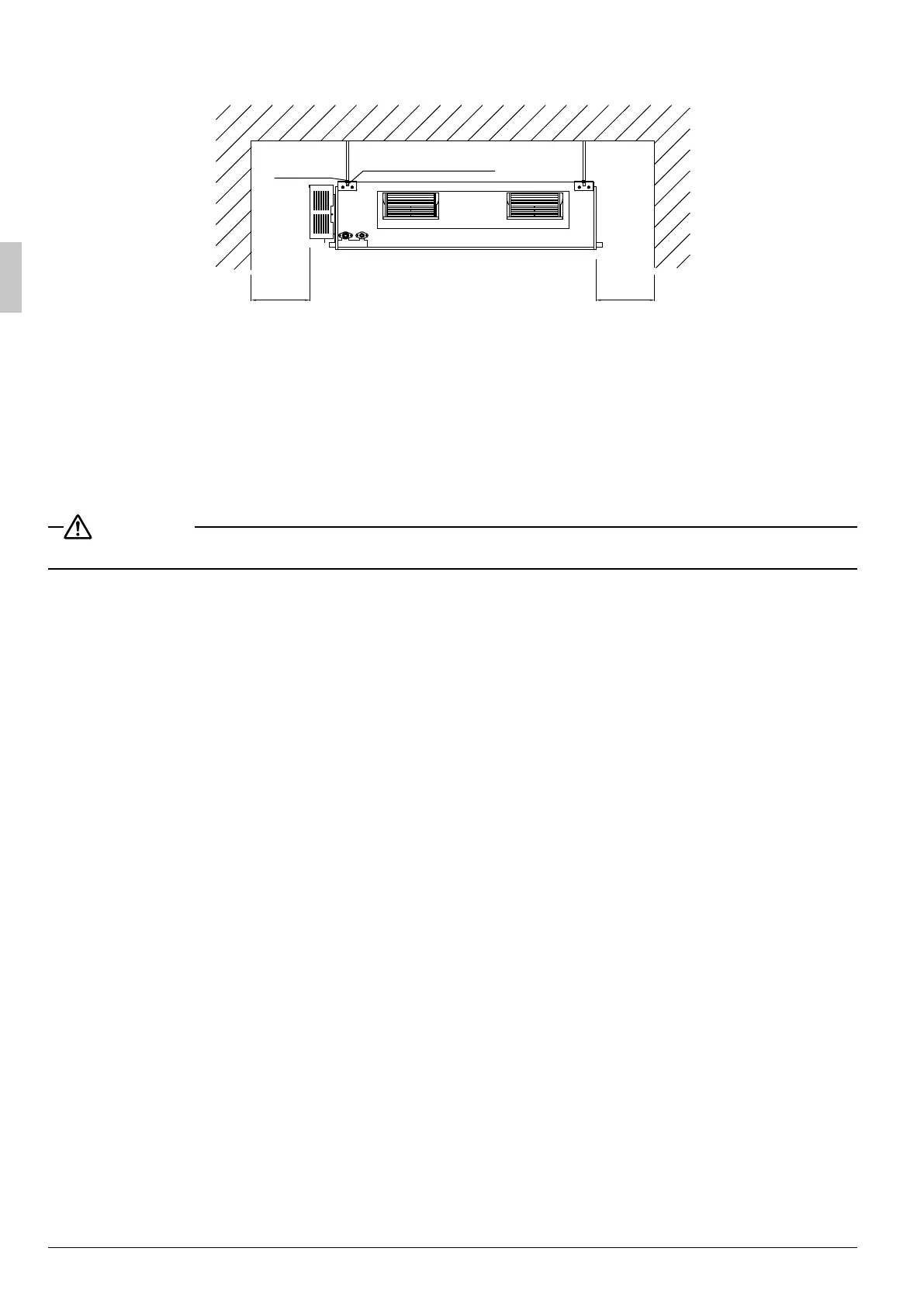

8.1.2 Dimension Requirement of the Installation Space of Indoor Unit
Nut with
Washer
Nut Spring Washer
250 250
8.2Fig.
For:
FDM24PEV1K FDYM24PEV1K
FDM30PEV1K FDYM30PEV1K
FDM36PEV1K FDYM36PEV1K
FDM42PEV1K FDYM42PEV1K
FDM48PEV1K FDYM48PEV1K
WARNING
The height of installation for the indoor unit should be above 2.5m.
