Daikin FTKM25PVM Removal Procedure

Si041551EB Drain Pan / Swing Motors / Vertical Blade ASSYs
Removal Procedure 15

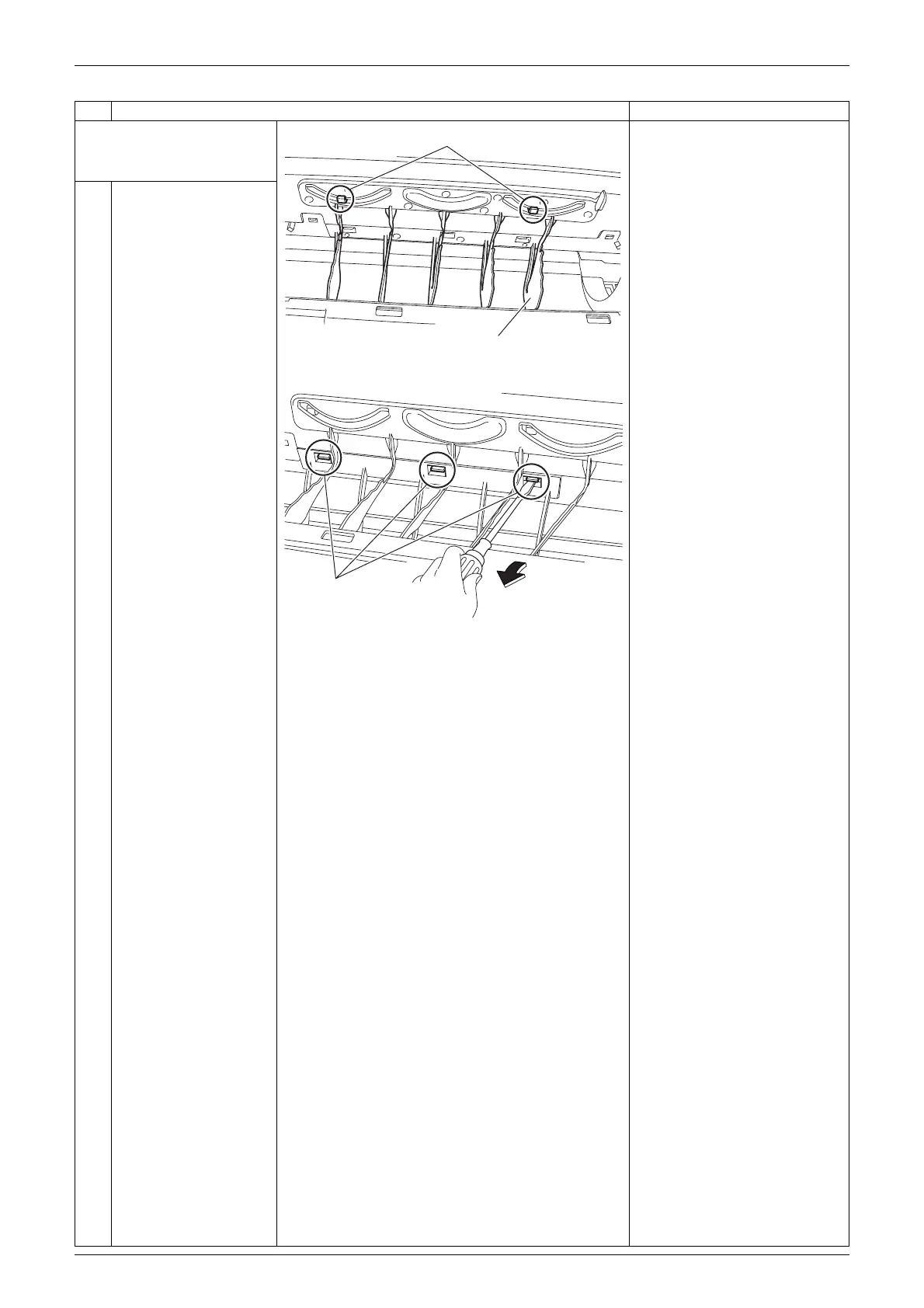

5. Remove the vertical blade
ASSYs (manual swing
models).

Each vertical blade ASSY
has 5 fins. It is impossible to
replace only one fin.

The vertical blade ASSY is
not marked for difference
between right and left.
1 Unfasten the upper 2
hooks.
2
3
4
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
Remove the vertical
blade ASSY.
Remove the other
vertical blade ASSY in
the same way.
Step Procedure Points
Vertical blade ASSY
Hook
(R21046)
Hook
(R21047)
