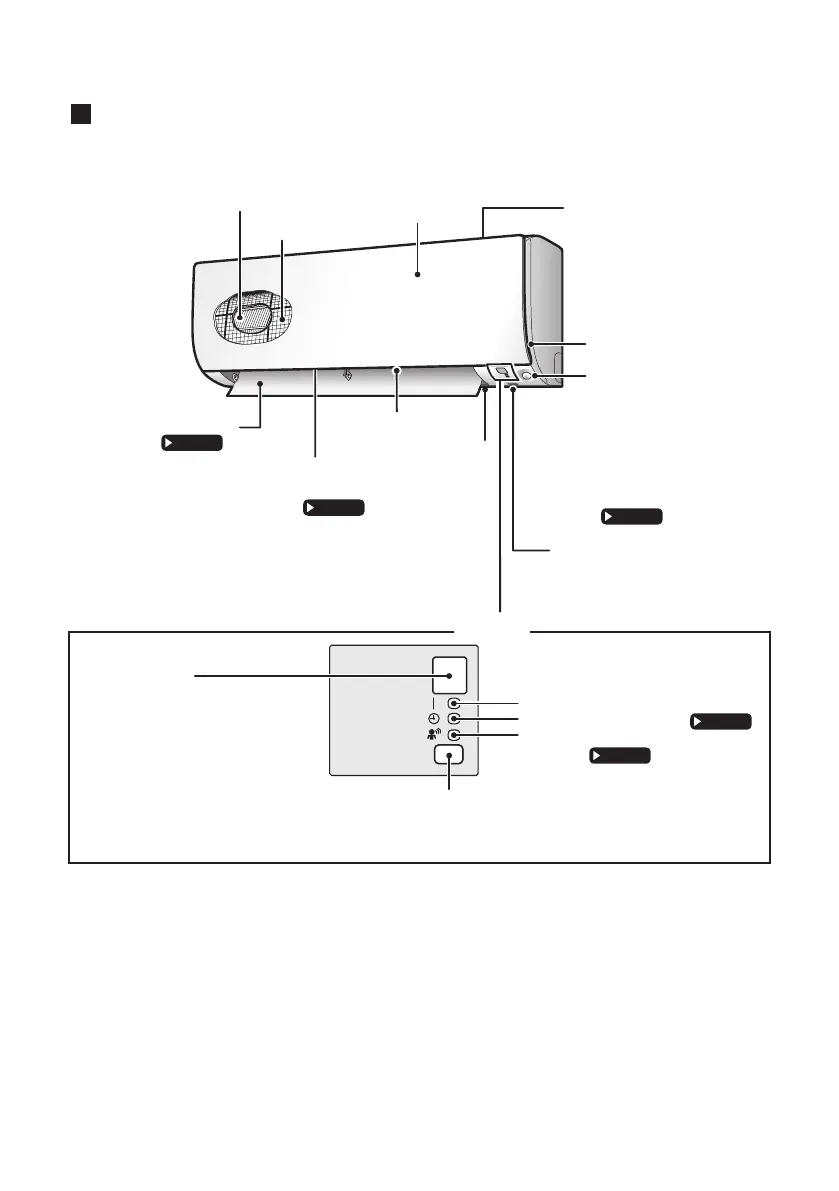

Names of parts
Indoor Unit
5
Display
Name
Air inlet
Front panel
Air outlet
Titanium apatite
deodorizing filter
Air Filter
Panel tab
INTELLIGENT EYE
sensor
• It detects the
movements of people
and automatically
switches between
normal operation and
energy saving operation.
Room temperature sensor
•
It senses the air temperature
around the unit.
Vertical blades (Louvers)
•
The Louvers are inside of
the air outlet.
Page 13
Horizontal blade
(Flap) :
Page 13
Page 16
ON/OFF
Signal receiver
Operation lamp (green)
Display
TIMER lamp (orange) :
INTELLIGENT EYE lamp
(green) :
Indoor Unit ON/OFF switch
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refer to the following table.
• It receives signals from
the remote controller.
• When the unit receives
a signal, you will hear
a short beep.
• Operation start ........ beep-beep
• Settings changed .... beep
• Operation stop ........ beeeeep
Page 21
