Horizontal Blades Si041352ED
14 Removal Procedure
5. Horizontal Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

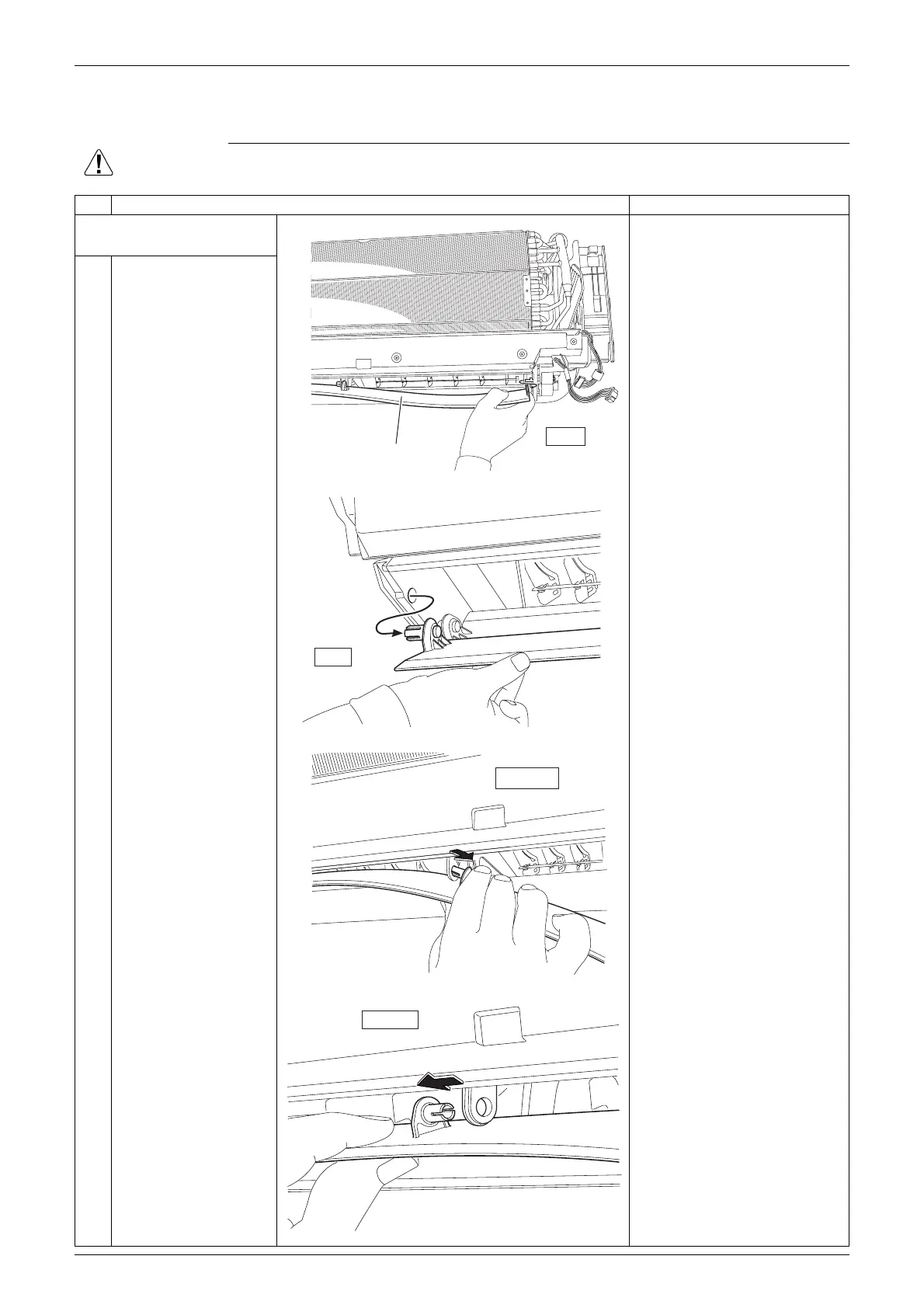

Step Procedure Points
1. Remove the horizontal
blades.
1 Release the right shaft
of the horizontal blade
(large).
2 Release the left shaft.
3 Release the inner right
shaft.
4
Release the inner left
shaft.
Right
Horizontal
blade (large)
(R24492)
(R24493)
Left
Inner right
(R24494)
(R24495)
Inner left
