Air Filters / Front Panel Si041352ED
2 Removal Procedure
1. Air Filters / Front Panel
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

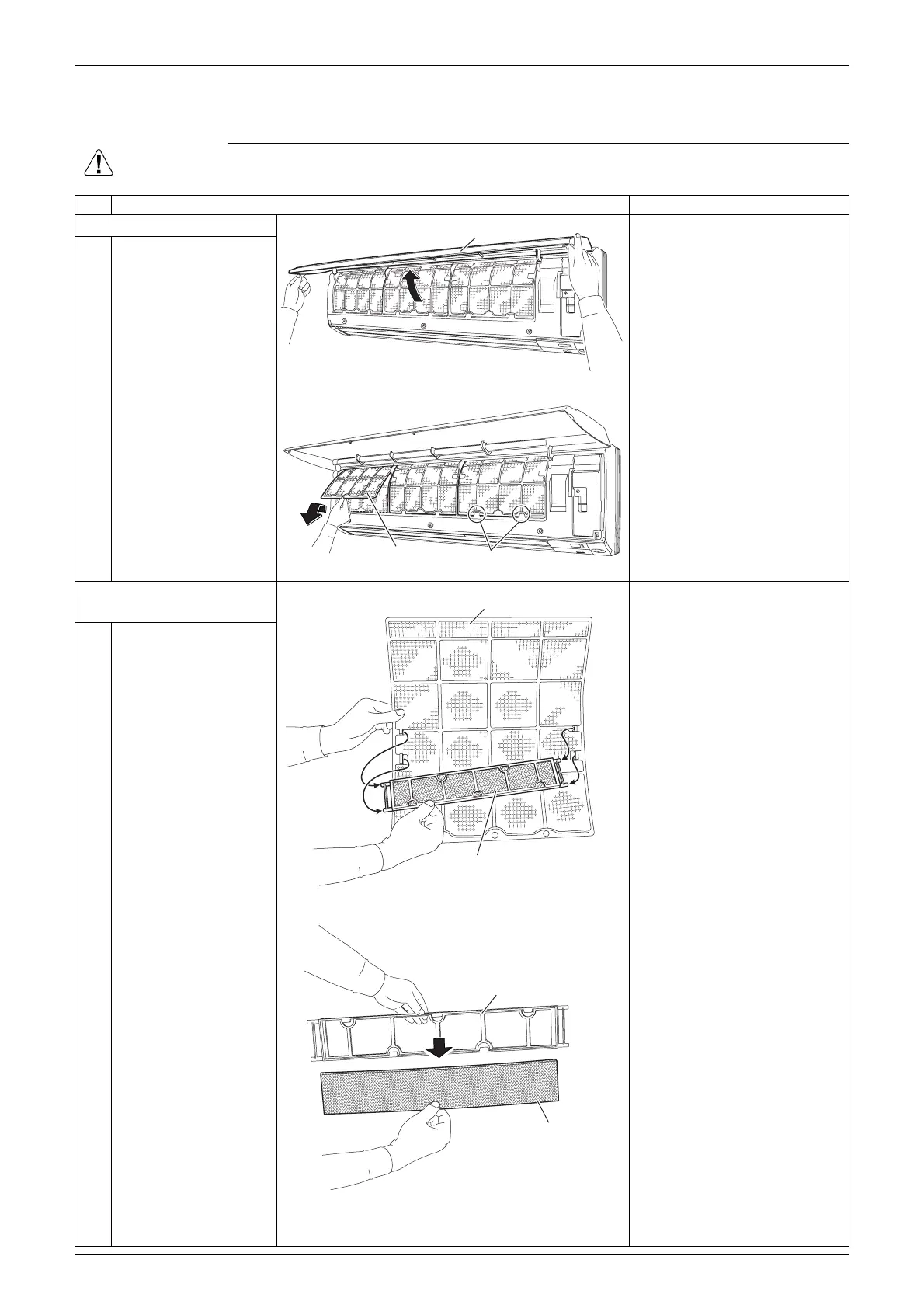

1. Remove the air filters.

The 3 filters are
interchangeable.

Insert the air filter with the
"FRONT" mark faced up.

The air filter can be set
easily by inserting it along
the guides.

Be sure to insert the 2 lower
hooks when reassembling
the air filter.
1 Open the front panel to
the position where it
stops.
2 Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite deodorizing filters.

The 3 filters are
interchangeable.
1 Remove the Titanium
apatite deodorizing filter
ASSY from the back of
the air filter.
2 Remove the Titanium
apatite deodorizing filter
from the frame.
(R9475)
Front Panel
(R13625)
Air filter
Hook
(R24472)
Air filter
Titanium apatite deodorizing
filter ASSY
(R24473)
Frame
Titanium apatite deodorizing
filter
