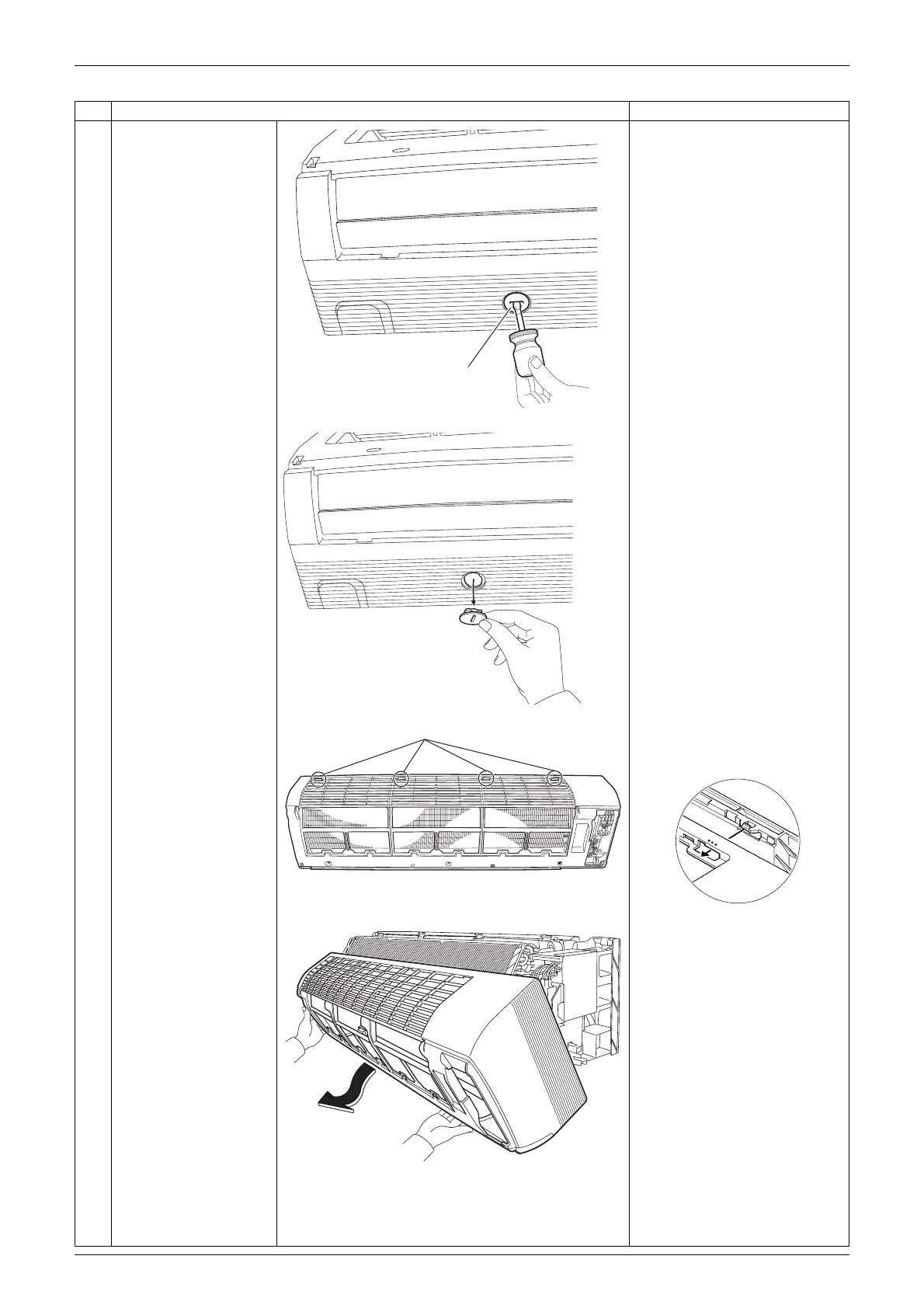

Si041352ED Front Grille
Removal Procedure 5
4 Remove the 3 front
grille fixtures.
The illustration shows the left
fixture.
5 Unfasten the 4 hooks
on the top of the front
grille.
The convex marks (...) on
the front panel indicate the
position of the hooks.
6 Pull out the upper part
of the front grille and lift
up the lower part, and
then remove the front
grille.
When reassembling, make
sure that the 4 hooks are
securely fastened.
Step Procedure Points
(R9489)
Front grille fixture
(R9490)
(R9486)
Hook
(R12715)
(R9492)
