Daikin FTXG25CVMAW Service Manual

Si04-402A Indoor Unit
Removal Procedure 115
2

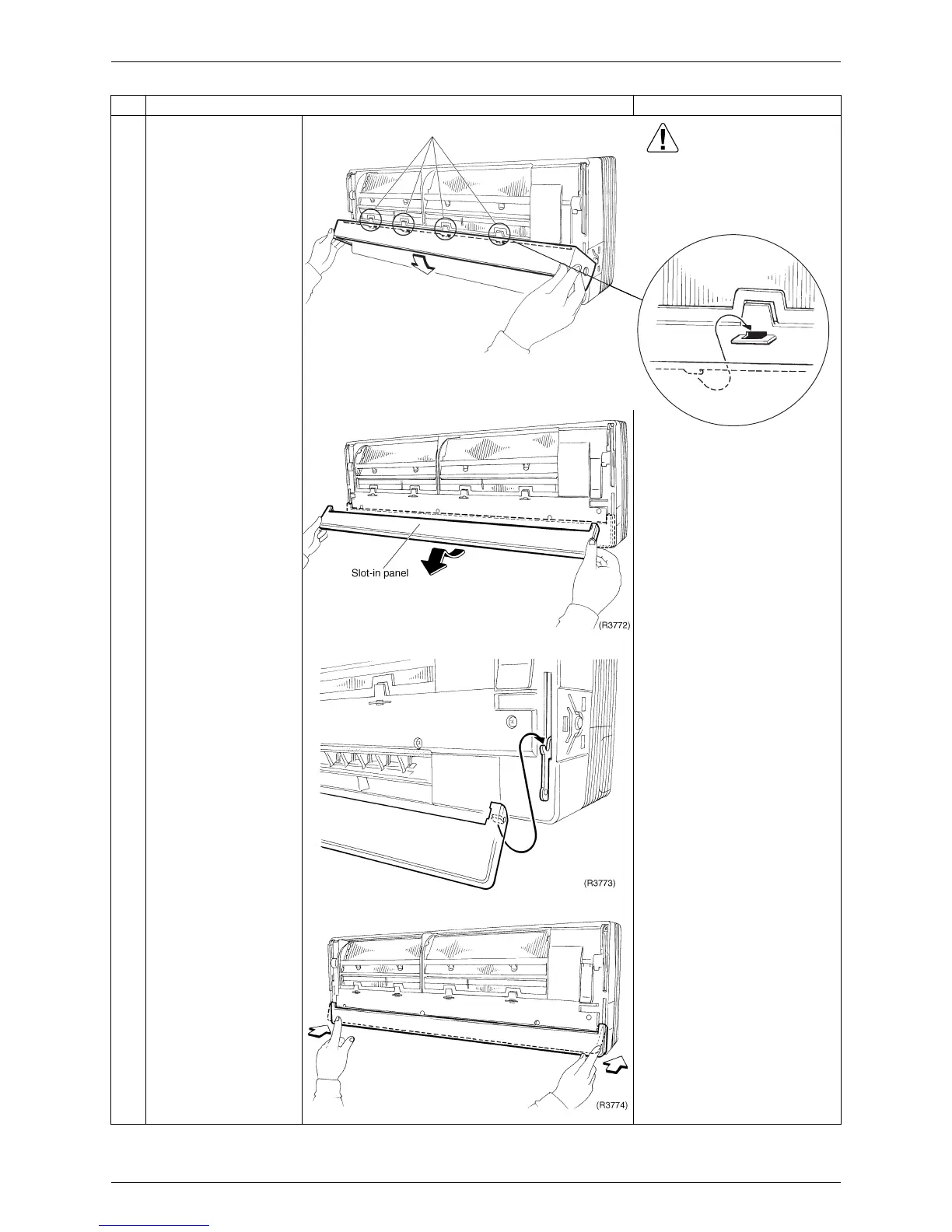

When reassembling, fit
the 4 hooks on the
upper side and insert
the both sides hooks
while rotating the
decorative plate.
Caution
Fit the hooks securely, or the
slot-in panel gets caught in
the decorative plate and the
mechanism may break down.
3
Lift and remove the
slot-in panel.
4
When reassembling, fit
the axes of the slot-in
panel from above.
5
Push the lower part of
the slot-in panel and
attach to the running
gear.
Step
Procedure Points
Hooks
(R3770)
Hook
Decorative plate
(R3771)
