Indoor Unit Si04-402A
114 Removal Procedure

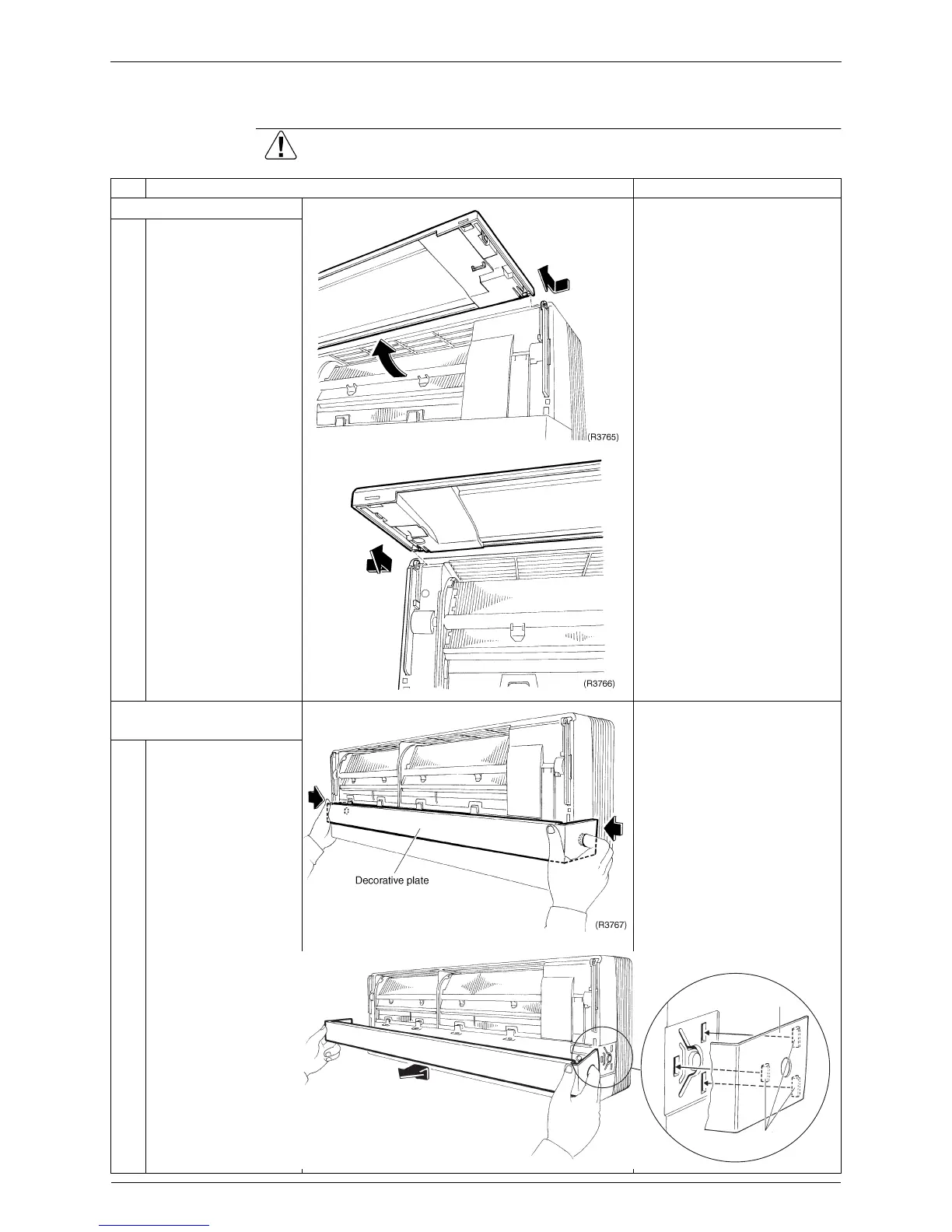

1.2 Removal of Front Grille
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the front panel.
Start the removal procedure
of front grille when the
panels are closed.
Slide the front panel side to
side to release each axis.
Align the right and left axes
with grooves in turn and
insert them to the end when
installing.
1
Open the front panel to
the horizontal position.
Release the both sides
pivots and remove the
front panel.
2. Remove the decorative
plate.
The decorative plate has
hooks (3 for each side) on
the back side.
1
Lift and pull out the
decorative plate while
pushing the both sides
hooks through the
holes.
Grille side
Decorative
plate
Hooks
(R3769)(R3768)
To Next Page
