Daikin FTXG25CVMAW Service Manual

Si04-402A Indoor Unit

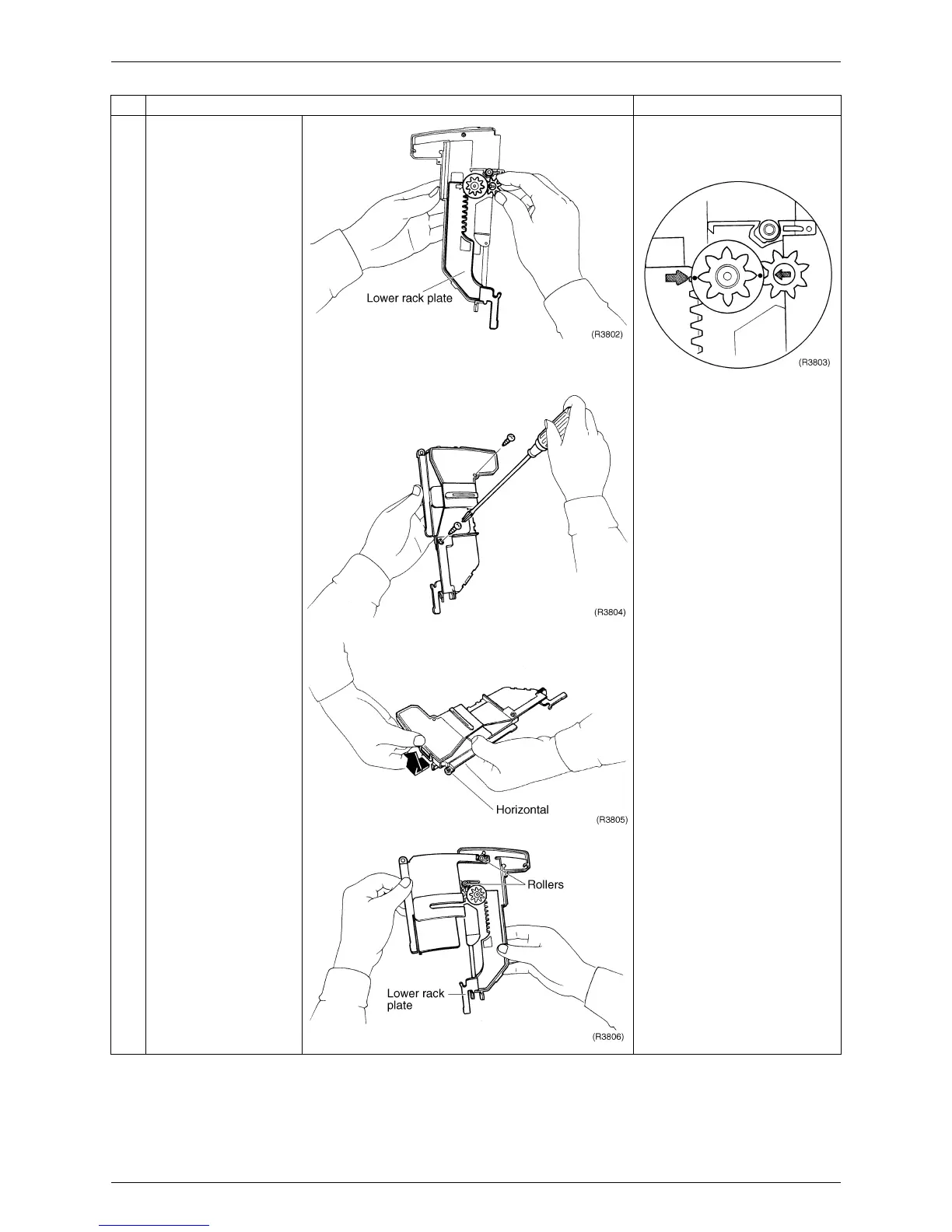

Removal Procedure 123
4
Lift and remove the
cog.

When reassembling align
the arrow with the mark2of
the center cog.
5
Loosen the 2 screws of
the right assembly
cover.
6
Hold the assembly hori-
zontally and release the
hook.

When you demand small
parts like cogs and rollers,
order a set of assembly.

Pay attention so as not to
lose the rollers.

The point for reassembling is
the same as for the left.
Step
Procedure Points
