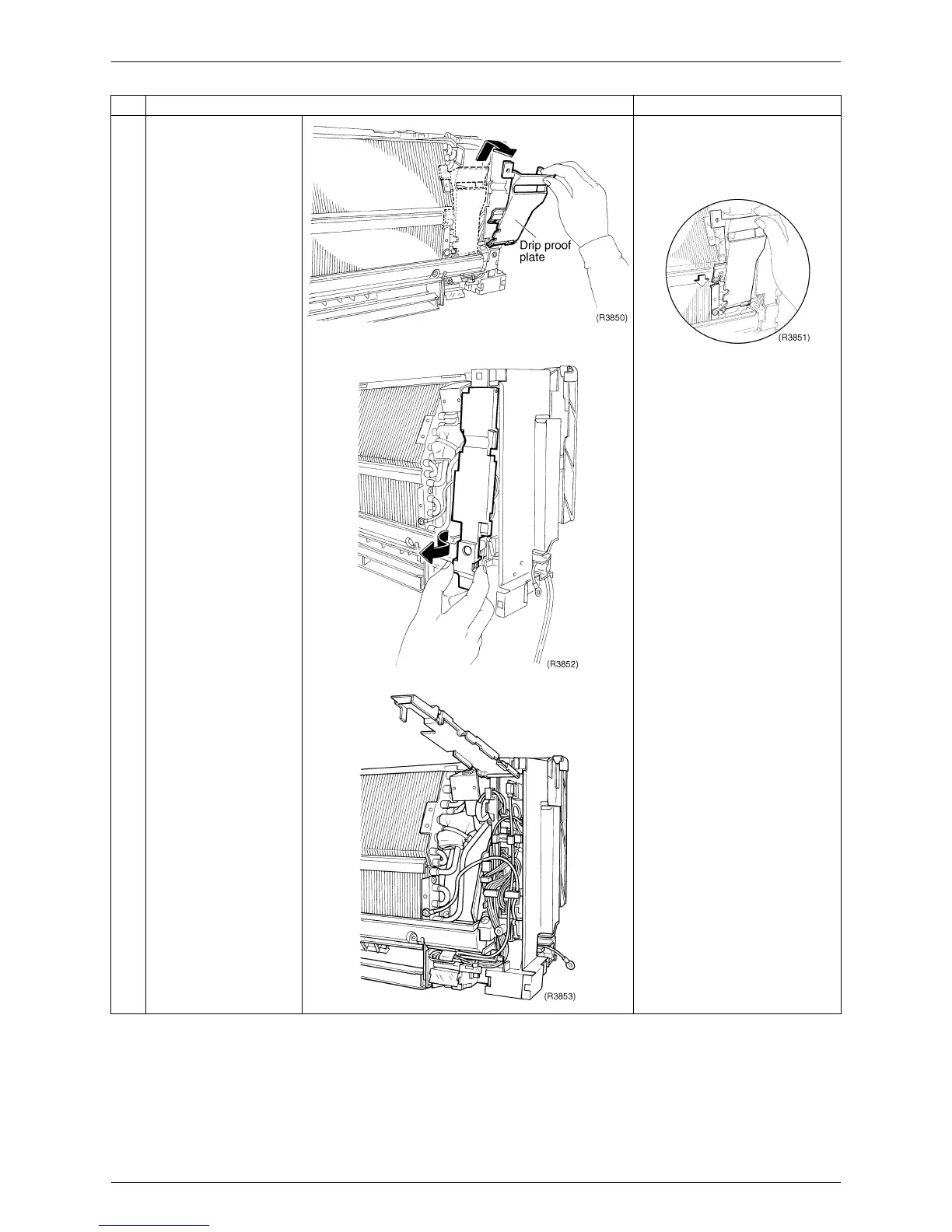

Si04-402A Indoor Unit
Removal Procedure 135
3
Lift and remove the drip
proof plate.
When reassembling, insert
the left hook of the drip proof
plate into the hem plate of
the heat exchanger.
4
Twist the electrical box
cover to the right
slightly to release the
lower hook.
Lift up and open the
cover.
5
Layout of the wiring
Step
Procedure Points
