Si04-402A Outdoor Unit
Removal Procedure 155
3

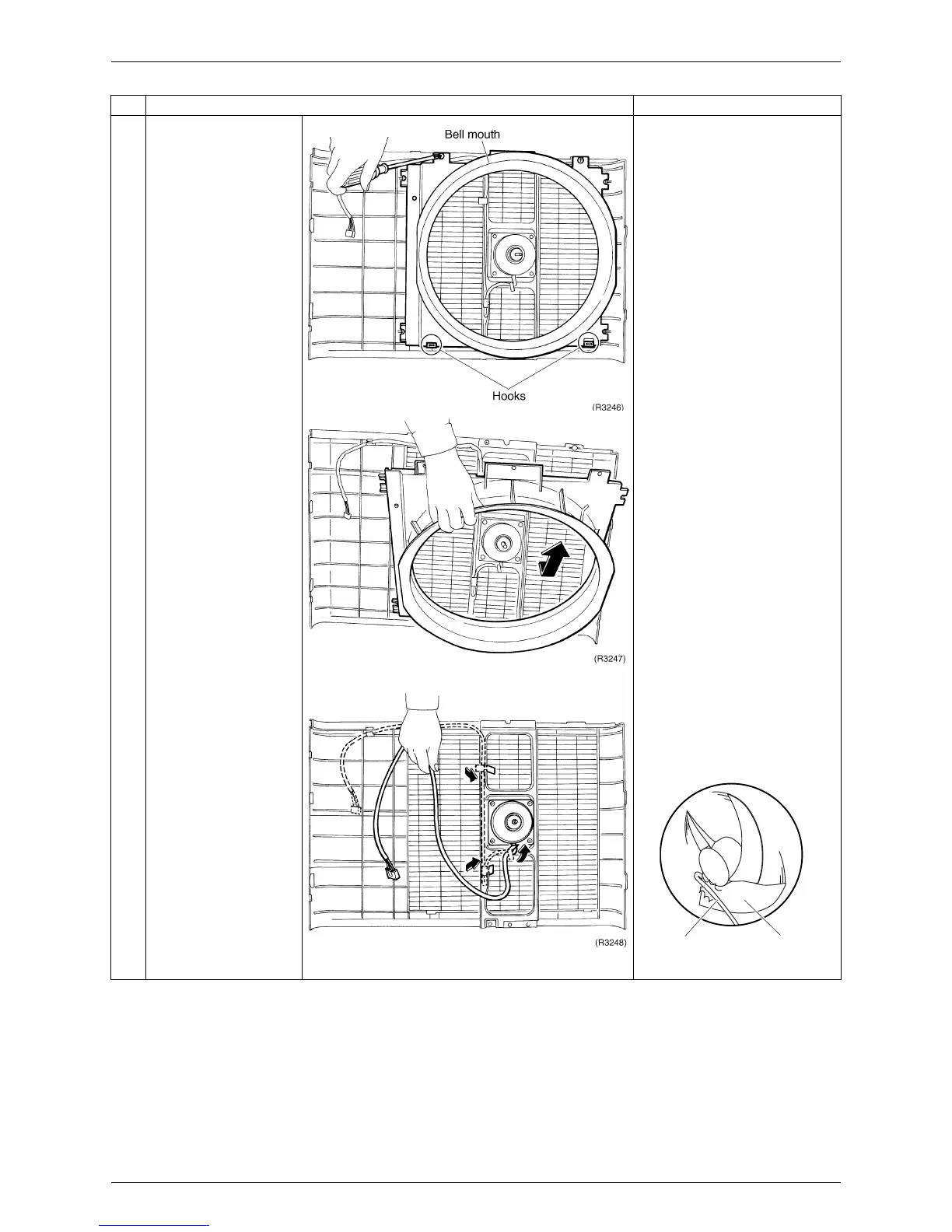

Loosen the 2 screws
and lift the bell mouth to
undo the hooks.
Remove the bell mouth.
4
Loosen the fixing hooks
and release the lead
wire.
Put the lead wire through the
back of the motor when
reassembling. (so as not to
be entangled with the
propeller fan)
Step
Procedure Points
(R3249)
Lead wire Propeller fan
