Instruction Si04-402A
54 System Configuration
13
■
To start COMFORT AIRFLOW operation
5. Press “COMFORT AIRFLOW button”.
The flap orientation will change, preventing air from blowing directly on the
occupants of the room.
•“ ” is displayed on the LCD.
〈COOL/DRY〉 The flap will go up.
〈HEAT〉 The flap will go down.
■
To cancel COMFORT AIRFLOW operation
6. Press “COMFORT AIRFLOW button” again.
Note

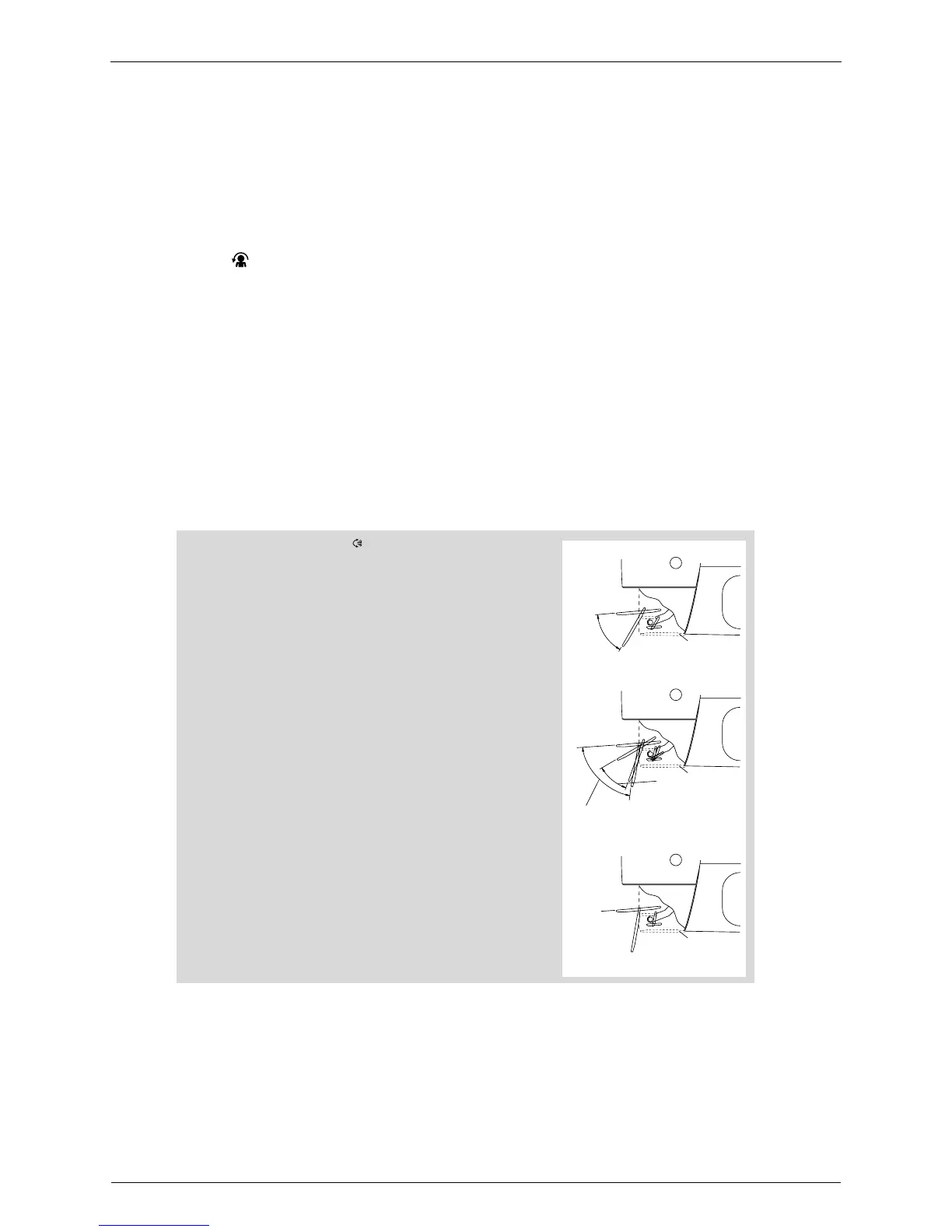

• When “SWING button ” is selected, the flap swinging
range depends on the operation mode. (See the figure.)
Three-Dimensional (3-D) Airflow
• Using three-dimensional airflow circulates cold air, which
tends to collected at the bottom of the room, and hot air,
which tends to collect near the ceiling, throughout the
room, preventing areas of cold and hot developing.
Comfort Airflow
• The air flow is set automatically.
• The air direction is as shown in the figure at right.
■
■■
■
ATTENTION
• Always use a remote controller to adjust the flap angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
• Always use a remote controller to adjust the louvers
angles.
10˚
5˚
40˚
80˚
75˚
30˚
COOL/DRY
approx. 10˚~40˚
FAN
approx. 5˚~80˚
HEAT
approx. 30˚~75˚
In COOL or DRY mode
In HEAT or FAN mode
STOP
STOP
HEAT
80˚
COOL
5˚
In COMFORT AIRFLOW mode
STOP
To Next Page
