ESIE16-02K | Part 5. Appendix 5.2. Wiring diagram
RA R32 Split & multi split M-Series
Page 102 31/05/21 | Version 1.1
5.2. Wiring diagram
5.2.1. Indoor unit
5.2.1.1. FNA-A

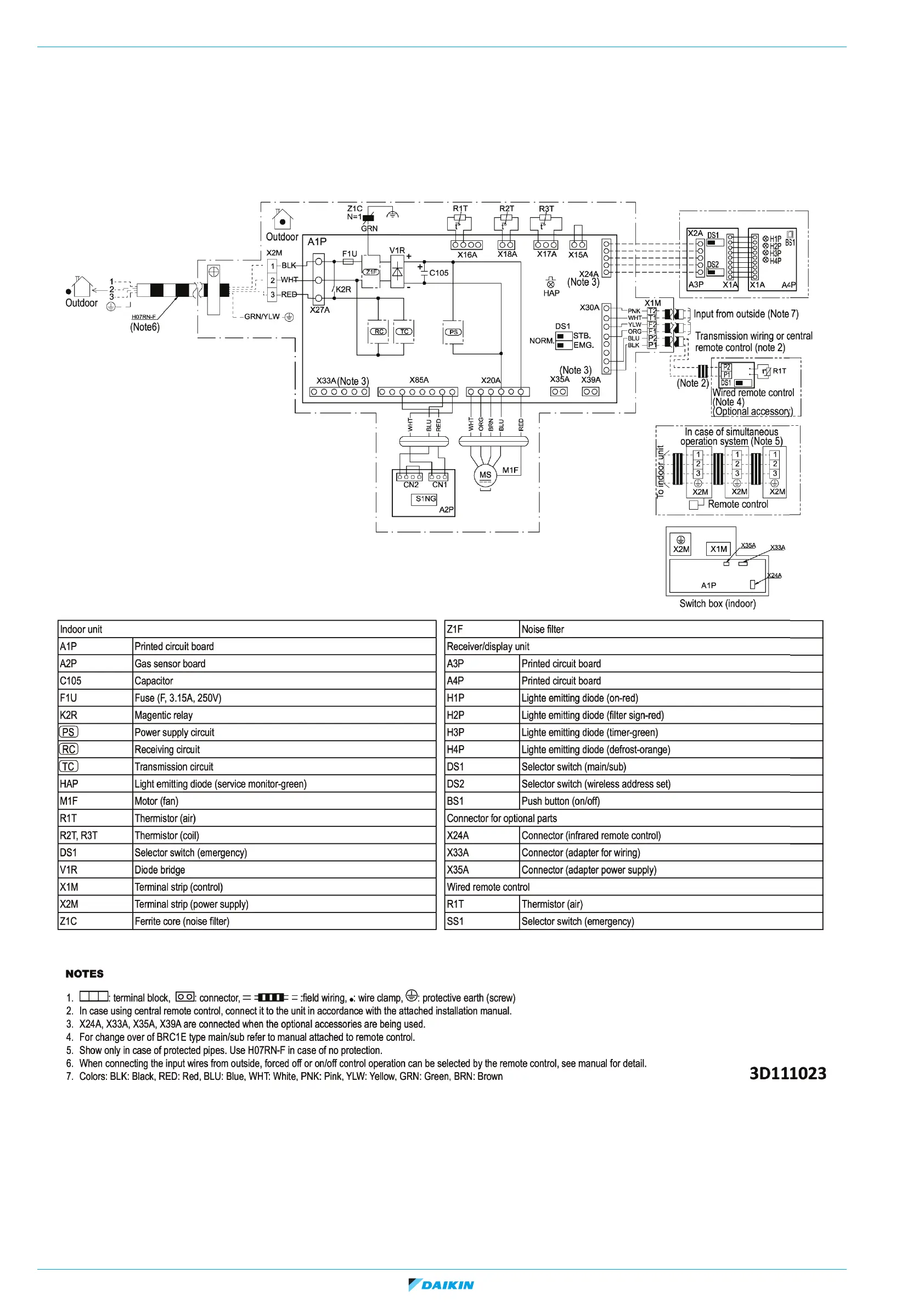

Figure 5-9: Wiring diagram - indoor unit FNA-A
