Daikin FTXTA30AW - Unit Specific Repair Procedures; Indoor Unit; Replacing Streamer Unit

ESIE17-19C | Part 3. Repair 3.3. Unit specific repair procedures
Page 70 19/08/19 | Version 1.1
Optimized Heating 4
3.3. Unit specific repair procedures
Overview:
3.3.1. Indoor unit
3.3.1.1. Replacing streamer unit
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Remove front panel.

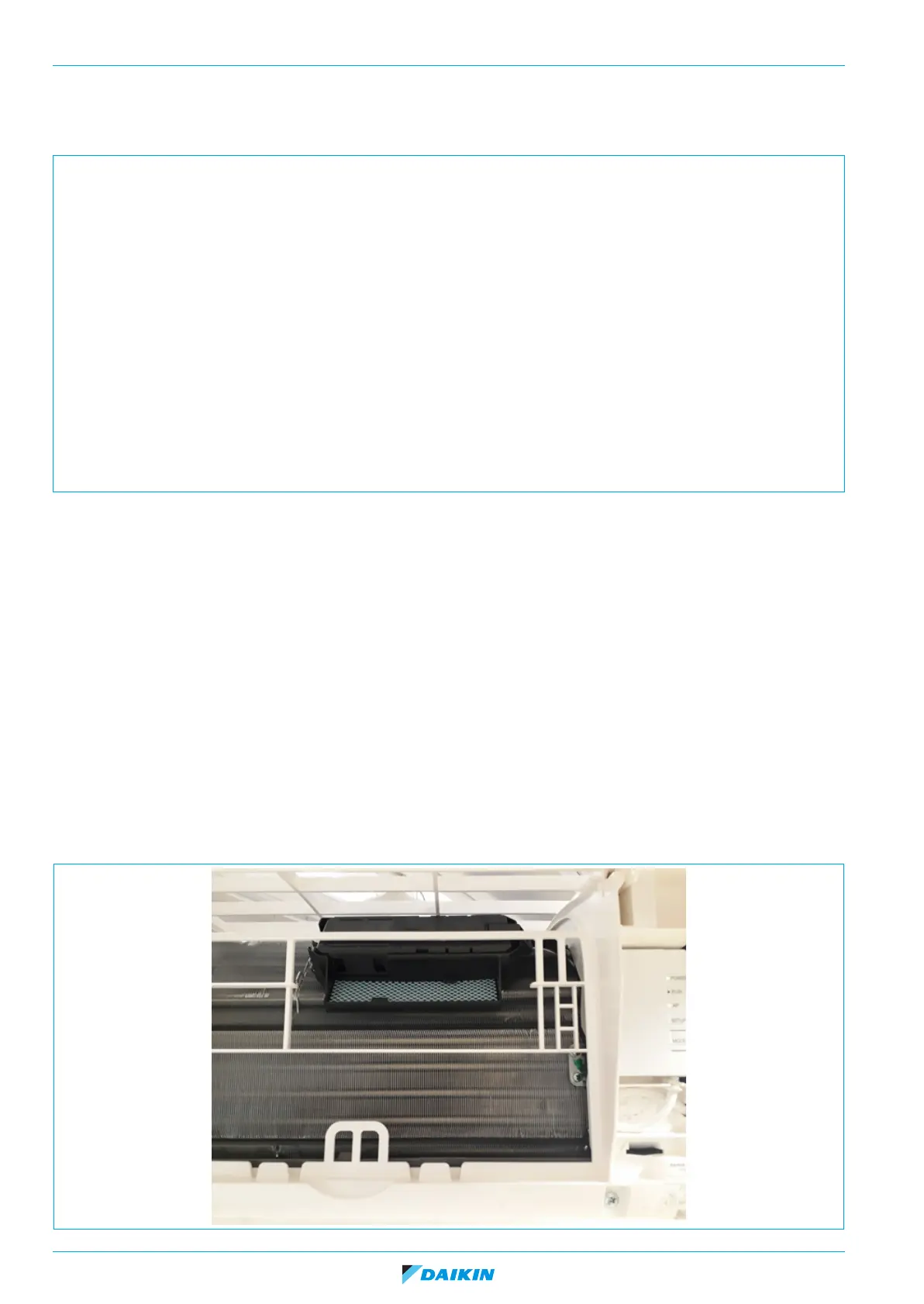

Figure 3-3: Removing the front panel
