3.3.2.11. Replacing propeller fan blade assembly single fan outdoor unit
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
3. Remove plate work when required.
PROCEDURE
Removal
1. Remove the nut (1) that fixes the propeller fan blade assembly (2).
2. Pull the propeller fan blade assembly (2) from the fan motor assembly (3).

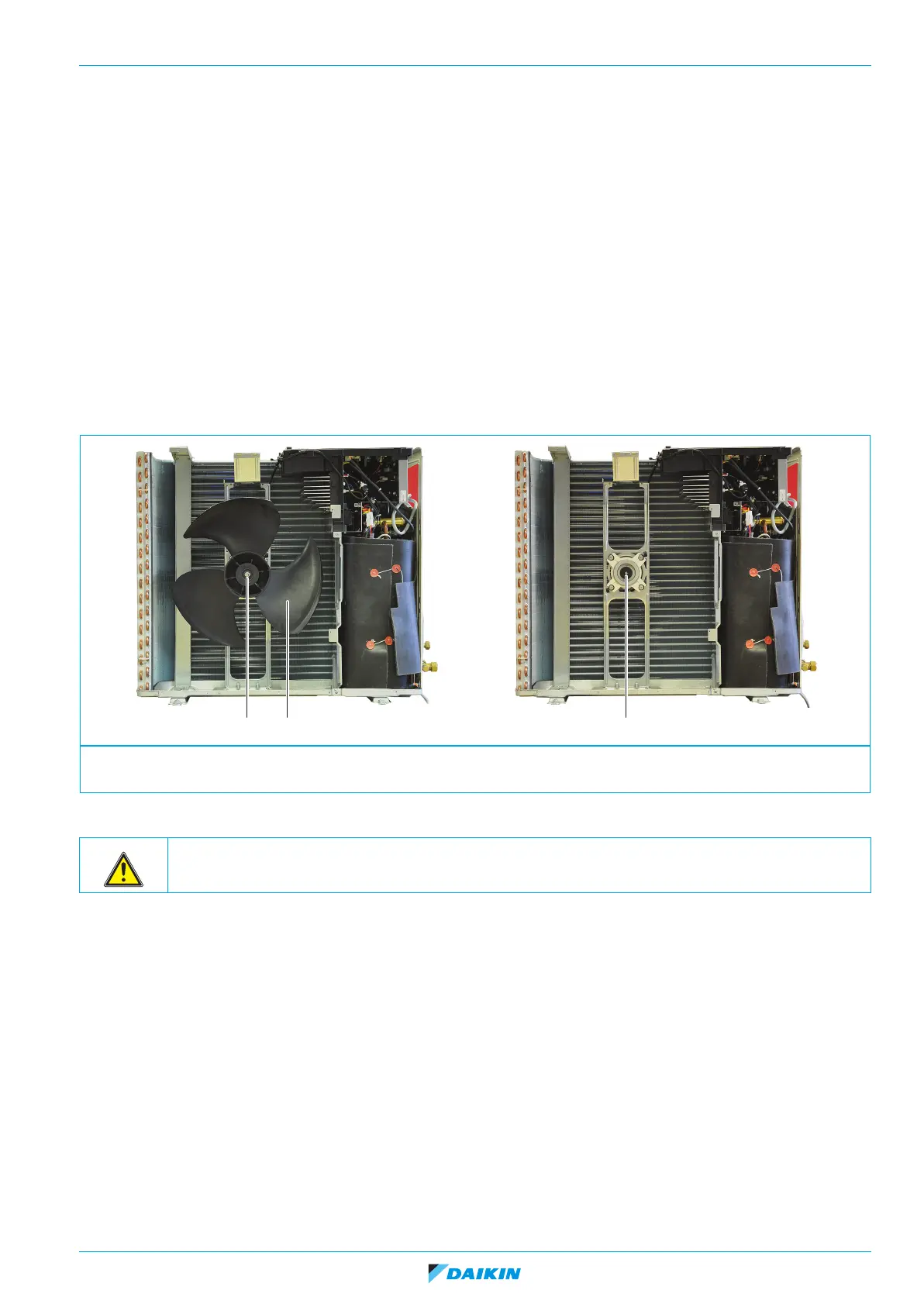

Figure 3-28: Removing the propeller fan blade assembly
Installation
1. Proceed in reverse order.
1. Nut 3. Fan motor assembly
2. Propeller fan blade assembly
CAUTION
Do not install a damaged propeller.
