ESIE17-19C | Part 5. Appendix 5.4. Piping diagram
Optimized Heating 4
19/08/19 | Version 1.1 Page 115
5.4. Piping diagram
5.4.1. Indoor unit

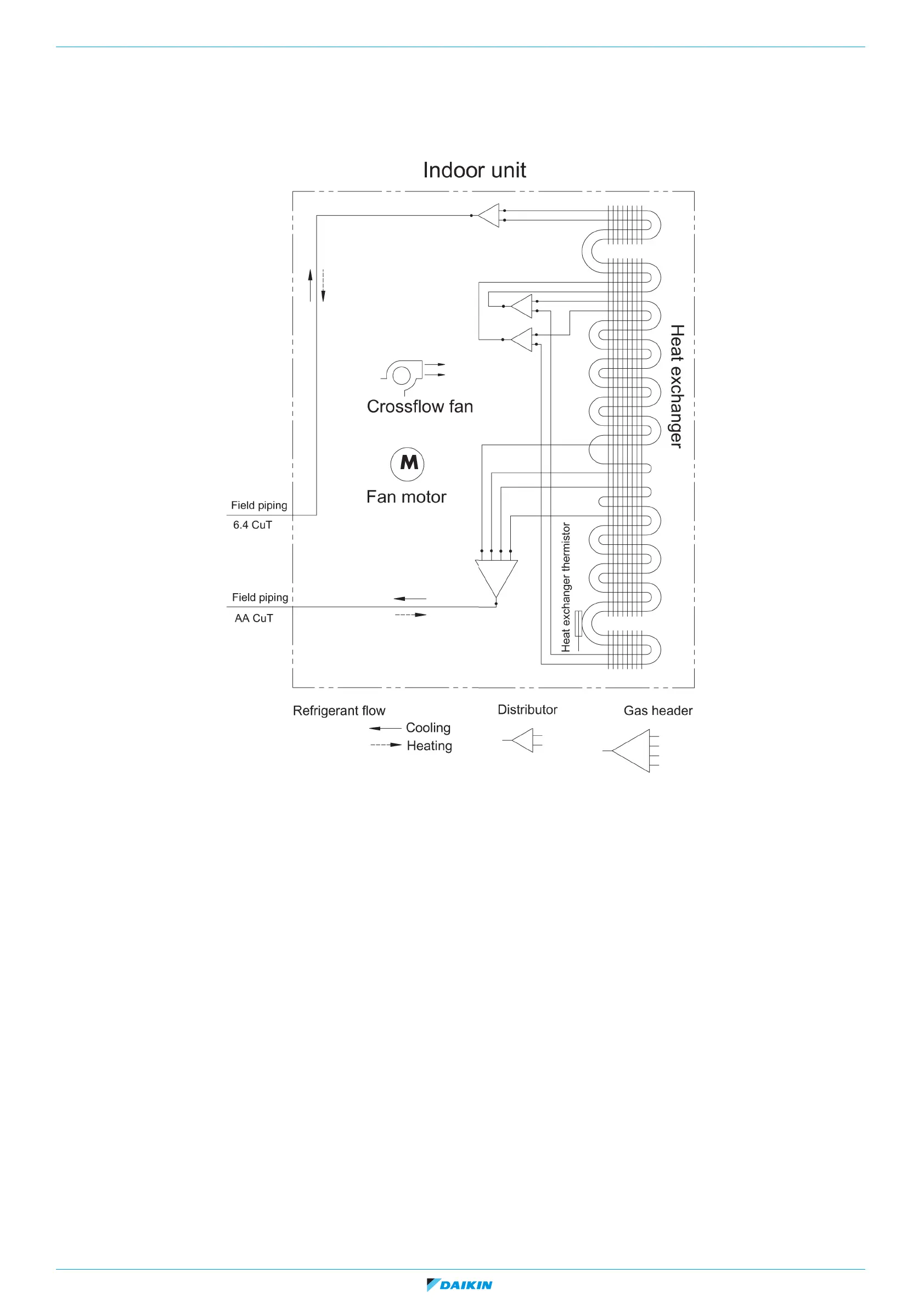

Figure 5-13: FTXTA-AW
