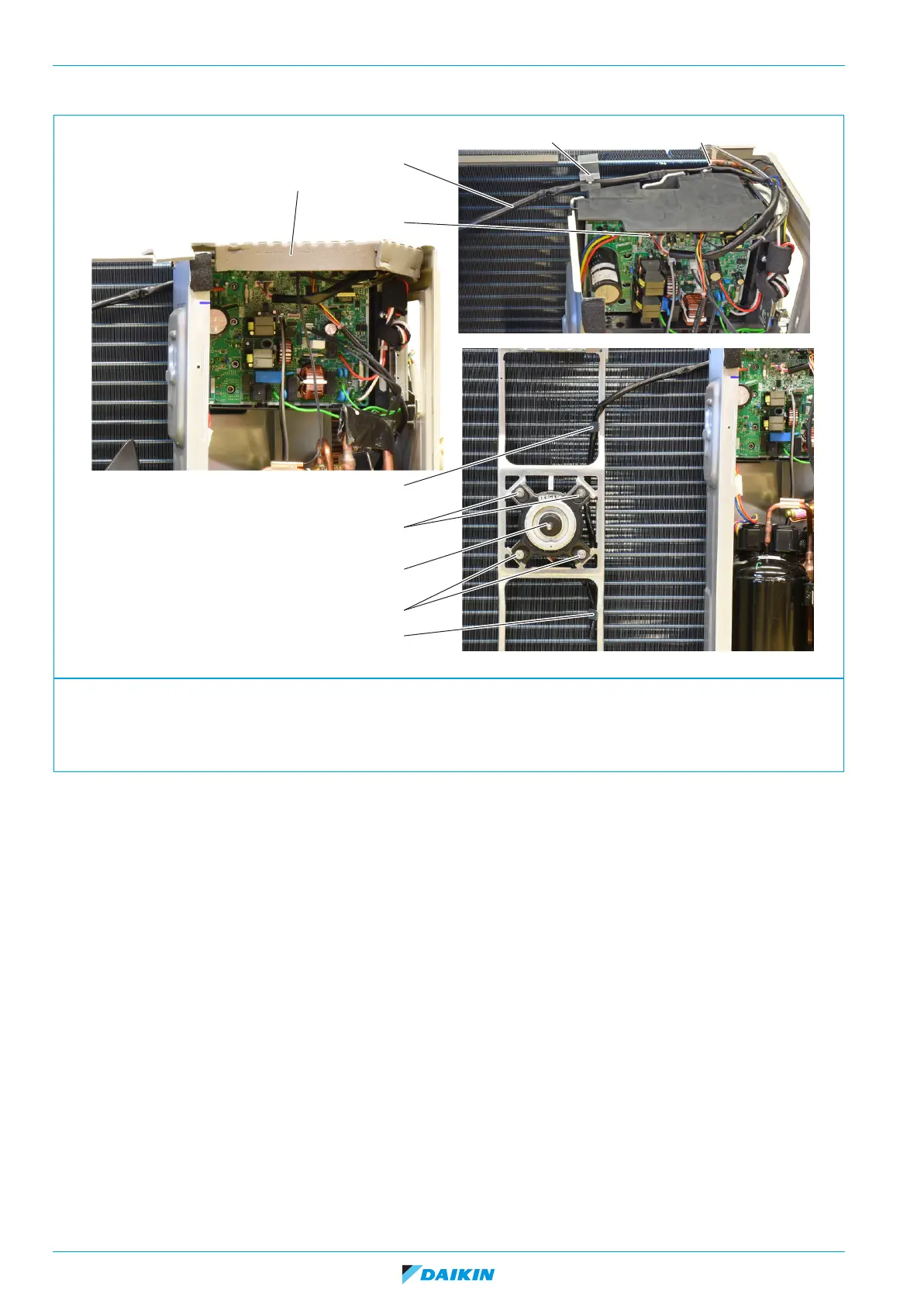

Figure 3-19: Removing the DC fan motor assembly
Installation
1. Proceed in reverse order.
1. Insulation 5. Harness retainer
2. Fan motor assembly harness 6. Screw
3. Connector 7. Fan motor assembly
4. Slot
1
3
2
6
6
7
8
7
54
