Instructions SiBE01-829
32 Operation Manual

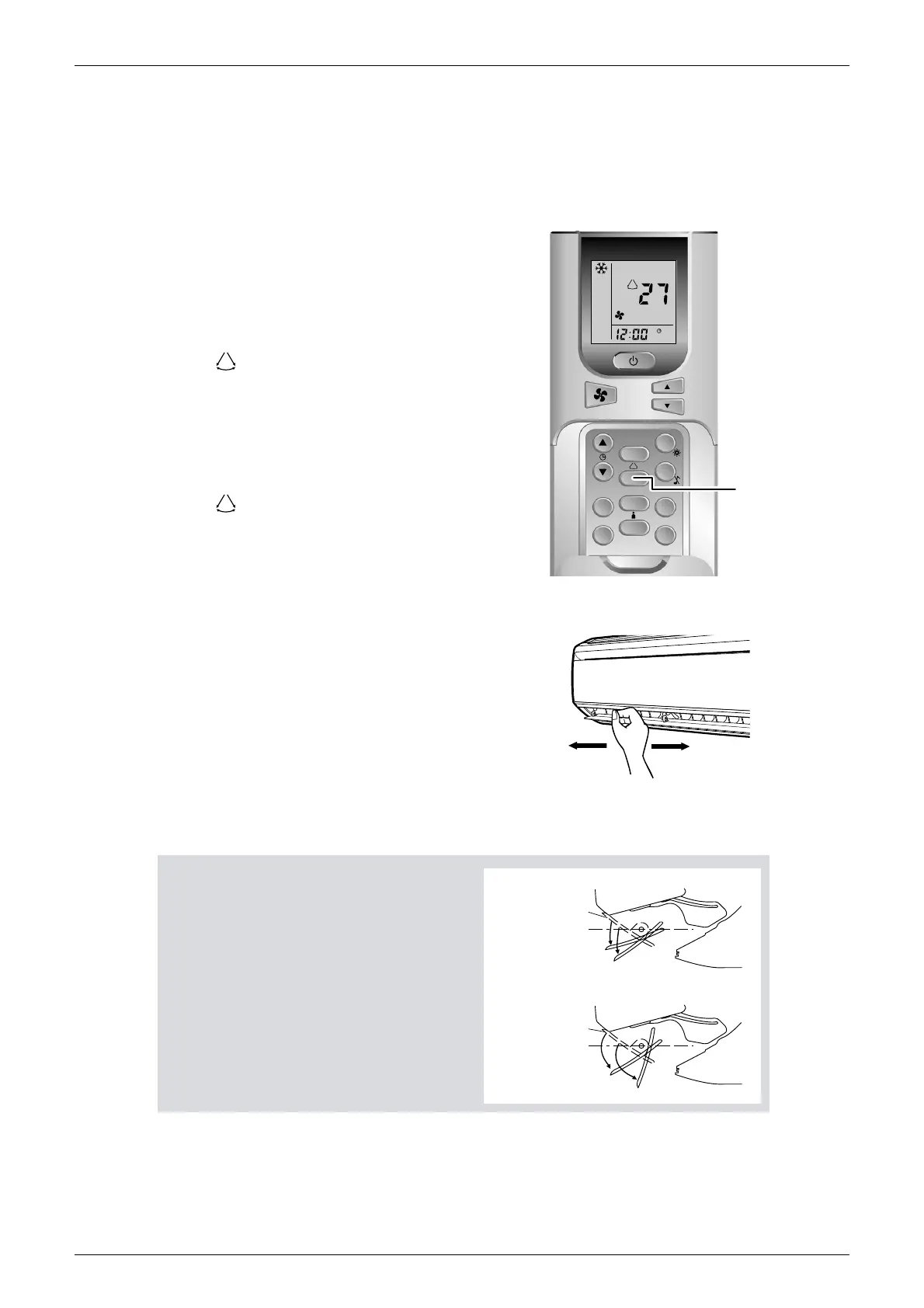

2.3 Adjusting the Airflow Direction
12
Adjusting the Airflow Direction
You can adjust the airflow direction to increase your comfort.
To adjust the horizontal
blades (flaps)
1. Press “SWING button”.
• “ ” is displayed on the LCD and the flaps will
begin to swing.
2. When the flaps have reached the
desired position, press “SWING
button” once more.
• The flap will stop moving.
• “ ” disappears from the LCD.
To adjust the vertical blades
(louvers)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side
blades.)
• When the unit is installed in the corner of a room,
the direction of the louvers should be facing away
from the wall.
If they face the wall, the wall will block off the wind,
causing the cooling (or heating) efficiency to drop.
Notes on flaps and louvers angles
• When “SWING button” is selected, the
flaps swinging range depends on the
operation mode. (See the figure.)
ATTENTION
• Always use a remote controller to adjust the
flaps angle. If you attempt to move it forcibly
with hand when it is swinging, the
mechanism may be broken.
• Be careful when adjusting the louvers.
Inside the air outlet, a fan is rotating at a
high speed.
MODE
SLEEP
SET
CLR
ON TIMER
CLR
SET
OFF TIMER
OFF
ON
PM
AM
˚
C
û
F
AUTO
P1
P2
1, 2
Upper limit 50˚
Upper limit 65˚
Lower limit 105˚
Lower limit 70˚
In COOL, DRY, and FAN mode
In HEAT mode
When stop
operation
When stop
operation
To Next Page
