5 Operation
Operation manual
9
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
3P477071-2M – 2022.09

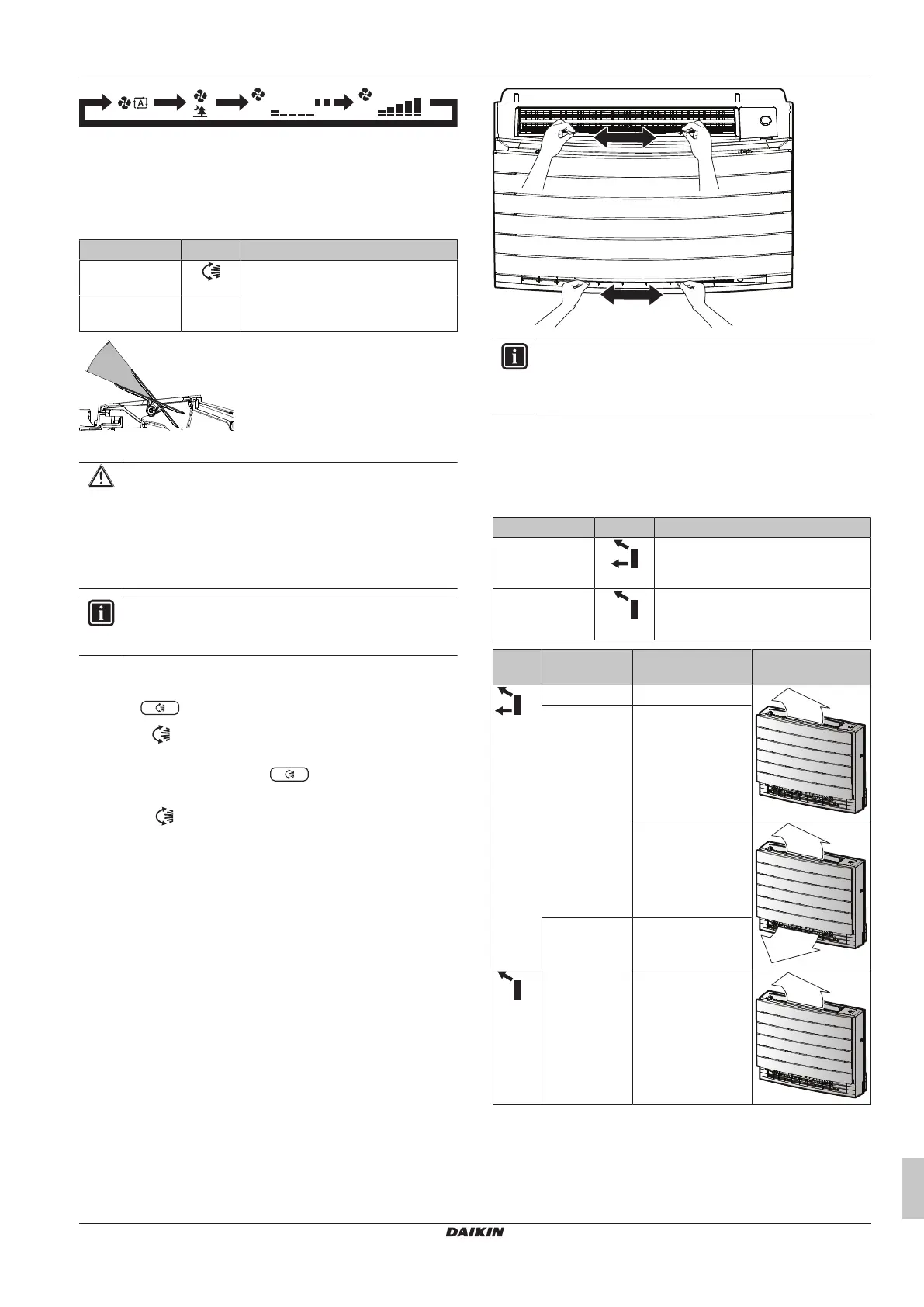

5.4 Airflow direction
When. Adjust the airflow direction as desired.
What. The system directs the airflow differently, depending on the
user selection.
Setting Display Airflow direction
Vertical auto
swing
Swinging or fixed position of the
horizontal blades (flaps).
Horizontal airflow [—] Position of the vertical blades
(louvers) is set manually.
a Movable range of the flaps
CAUTION
▪ ALWAYS use a user interface (e.g. wireless remote
control) to adjust the angle of the flap. When the flap is
swinging and you move it forcibly by hand, the
mechanism will break.
▪ Be careful when adjusting the louvers. Inside the air
outlet, a fan is rotating at high speed.
INFORMATION
In vertical auto swing, the flaps will stop in up position if the
air flow rate becomes weak.
5.4.1 To adjust vertical airflow direction
1 Press .
Result: appears on the LCD. The flaps (horizontal blades)
will begin to swing.
2 To use fixed position, press when the flaps reach the
desired position.
Result: disappears from the LCD. The flaps will stop
moving.
5.4.2 To adjust the louvers (vertical blades)
1 Adjust horizontal blades using the user interface (e.g. wireless
remote control) so you can easily access the knobs on the
vertical blades.
2 Hold the knobs and move them up slightly.
3 Adjust left or right to the desired position while holding the
knobs.
INFORMATION
When the unit is installed in a corner of a room, the
direction of the louvers should be facing away from the
wall. Efficiency will drop if a wall blocks the air.
5.5 Air outlet selection
Use this feature to let the unit decide automatically which air outlet
should be used or set the top air outlet only. The default setting is
automatic air outlet selection.
Setting Display Airflow direction
Automatic air
outlet selection
The unit decides automatically the
best air outlet depending on the
operation mode or room conditions.
Top air outlet
only
The airflow is set to top air outlet,
regardless of the operation mode or
room conditions.
Setting Operation
mode
Situation Air outlet selection
Drying Any situation
Cooling When the room
temperature
reaches the setpoint
or the total operation
time at high humidity
reaches 1 hour.
When the setpoint
temperature is NOT
reached yet, or the
total operation time
at high humidity is
less than 1 hour.
Heating, fan
only
Any situation
Drying,
cooling,
heating, fan
only
Any situation
