Daikin FVXM35A3V1B9 Installer's Reference Guide

6 | Unit installation
Installer reference guide
26
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
1,843 1,9 2,0 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3,0 3,1 3,2 3,3
A
min
[m
2
]
m [kg]
H = 2,2 m
H = 2,0 m
H = 1,8 m
A
min
Minimum floor area
m Total refrigerant charge in the system
H Ceiling height of the room
Example: If the indoor unit is installed in room with ceiling height 2 m, located
above ground level and the total refrigerant change of the connected system is
2.3kg, than minimum floor area is 4.99m
2
.
Example: If the indoor unit is installed in room with floor area 4.99 m
2
, ceiling
height 2m, located above ground level, than the total refrigerant change is ≤2.3kg.

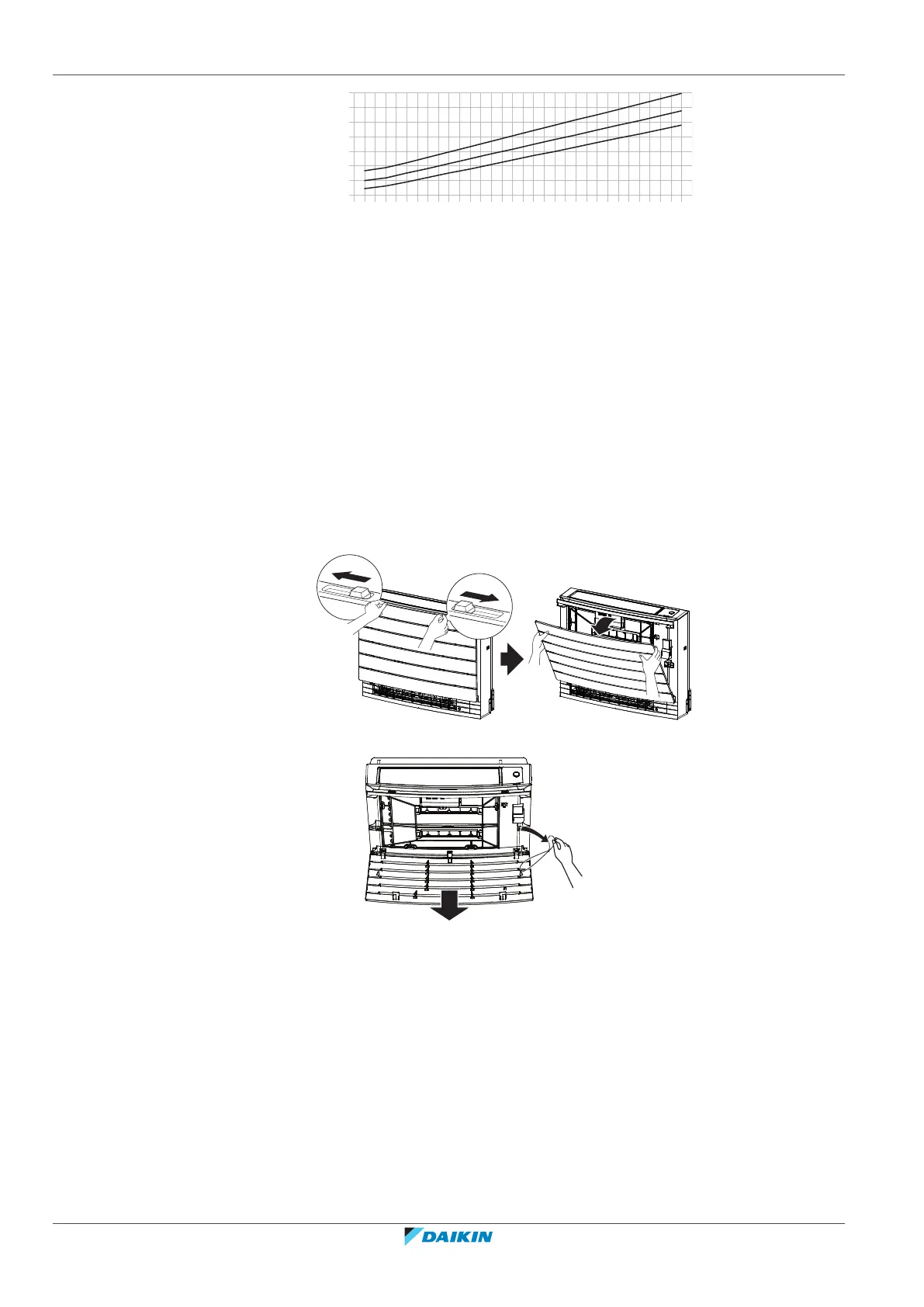

6.2 Opening the unit
6.2.1 To remove the front panel
1 Slide both sliders in the direction of the arrows until they click.
2 Open the front panel and remove the string.
3 Remove the front panel.
6.2.2 To remove the front grille
1 Remove the front panel. See "6.2.1To remove the front panel"[426].
2 Remove the 4 screws, remove the grille from 4 tabs on the top and remove
the front grille while pulling it toward you.
