6 | Unit installation
Installer reference guide
28
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09
b Wiring box cover
c Tabs
6.3 Mounting the indoor unit
6.3.1 To install the indoor unit

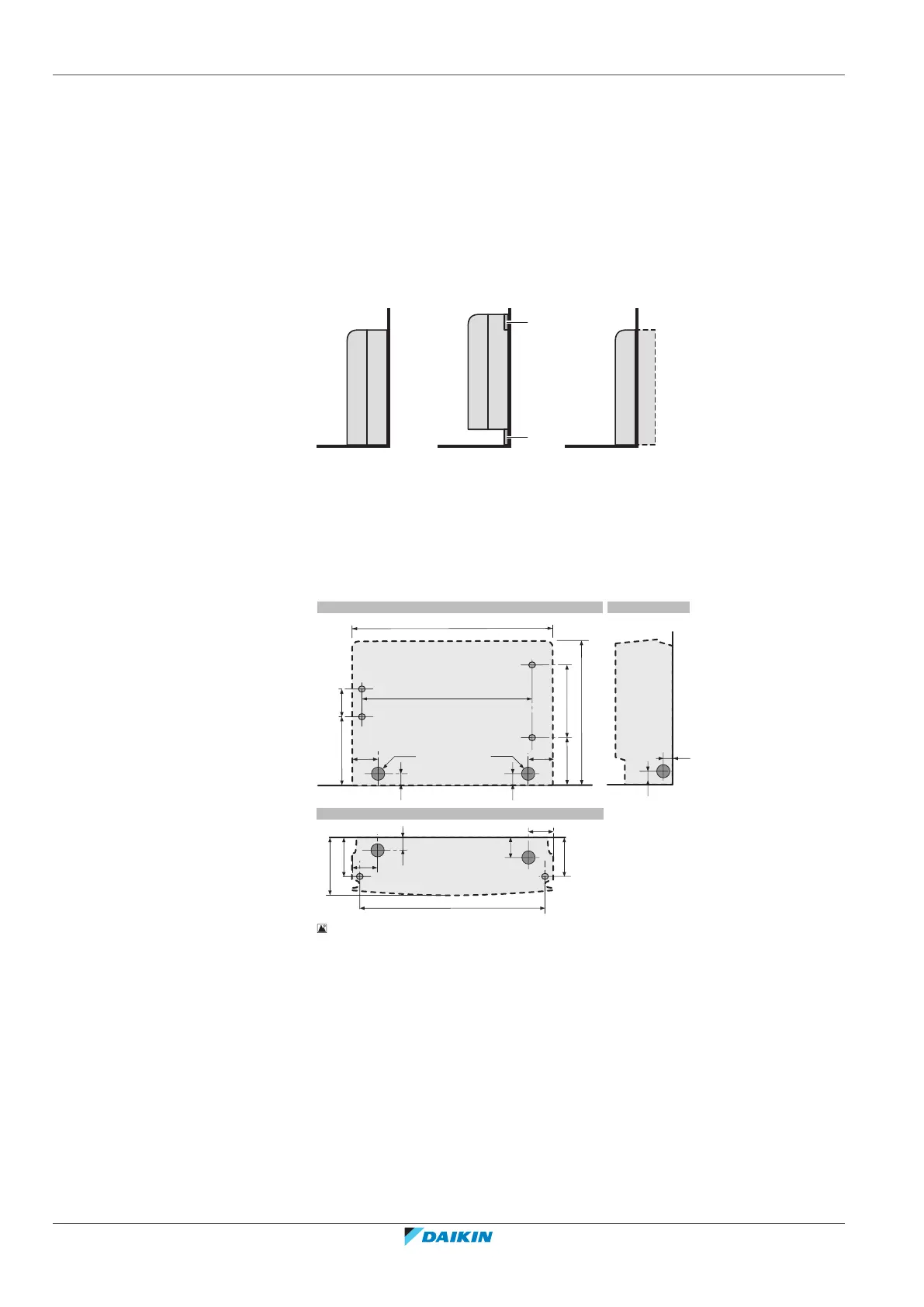

Installation options
There are 3 possible type of installation for the indoor unit.
a
b
A B C
A Floor (exposed) installation
B Wall (exposed) installation
C Half concealed installation
a Mounting plate
b Skirting board
Floor-standing installation
(mm)
627.5
750
006
300
200
285
115
159
238
689
a
a
a
a
159
a
a
75
06
75
45
Ø65
Ø65
45
b
c
75
75
54
f
e
A B
C
54
45
d
6‒1 Indoor unit installation drawing: Floor-standing installation
A Front view
B Side view
C Top view
a Screw hole 6×
b Left-back piping hole location
c Right-back piping hole location
d Left/right piping hole location
e Left-bottom piping hole location
f Right-bottom piping hole location
1 Drill a wall hole, depending on which side piping is taken out. See "6.3.2 To
drill a wall hole"[432].
2 Open the front panel and remove the front grille.
3 Remove the slit portions using nippers. See "6.3.3 To remove the slit
portions"[432].
